Table/Desk Installation
continued from page 7
4. Connect the power cord.
CAUTION: Use only the power adapter supplied
with this phone. If you need a replacement cord, call
1 (800) 222-3111.
Fit the power cord behind the strain relief tab. Then plug the smaller
end of the power cord into the jack labeled POWER on the back
of the telephone. Plug the power adapter into a standard electrical
outlet not controlled by a wall switch.
5. Check for a dial tone.
Press L, then lift the handset or press S and listen for a
dial tone. Then press l and listen for a dial tone. If you do not
hear a dial tone, see IN CASE OF DIFFICULTY beginning on page 55.
6. Confirm Lines 1 and 2.
Press L and call one of the telephone numbers. If you hear
a busy signal, you have dialed Line 1. If you hear a ringing signal in
the receiver, then you have dialed Line 2.
98
INSTALLATION
INSTALLATION
INSTALLATION
INSTALLATION
Wall Installation
1. Remove the desk wedge.
If the desk wedge is attached, remove it following the directions in
Battery Installation beginning on page 5. Store the wedge in a safe
place in case this telephone is used on a table or desk in the future.
2. Reverse the handset tab.
Hold down the switchhook, and slide the tab up and out of its slot.
Turn the tab so that the end with the hook points up, then insert the
tab back into its slot.
3. Connect the power cord to the telephone.
Fit the power cord behind the strain relief tab. Then plug the smaller
end of the power cord into the jack labeled POWER on the back
of the telephone.
4. Connect the handset to the telephone.
Plug the handset cord into the handset jack on the left side of the
telephone. Plug the other end of the handset cord into the handset,
then hang up.
continued on page 10
POWER
jack
Strain
relief tab

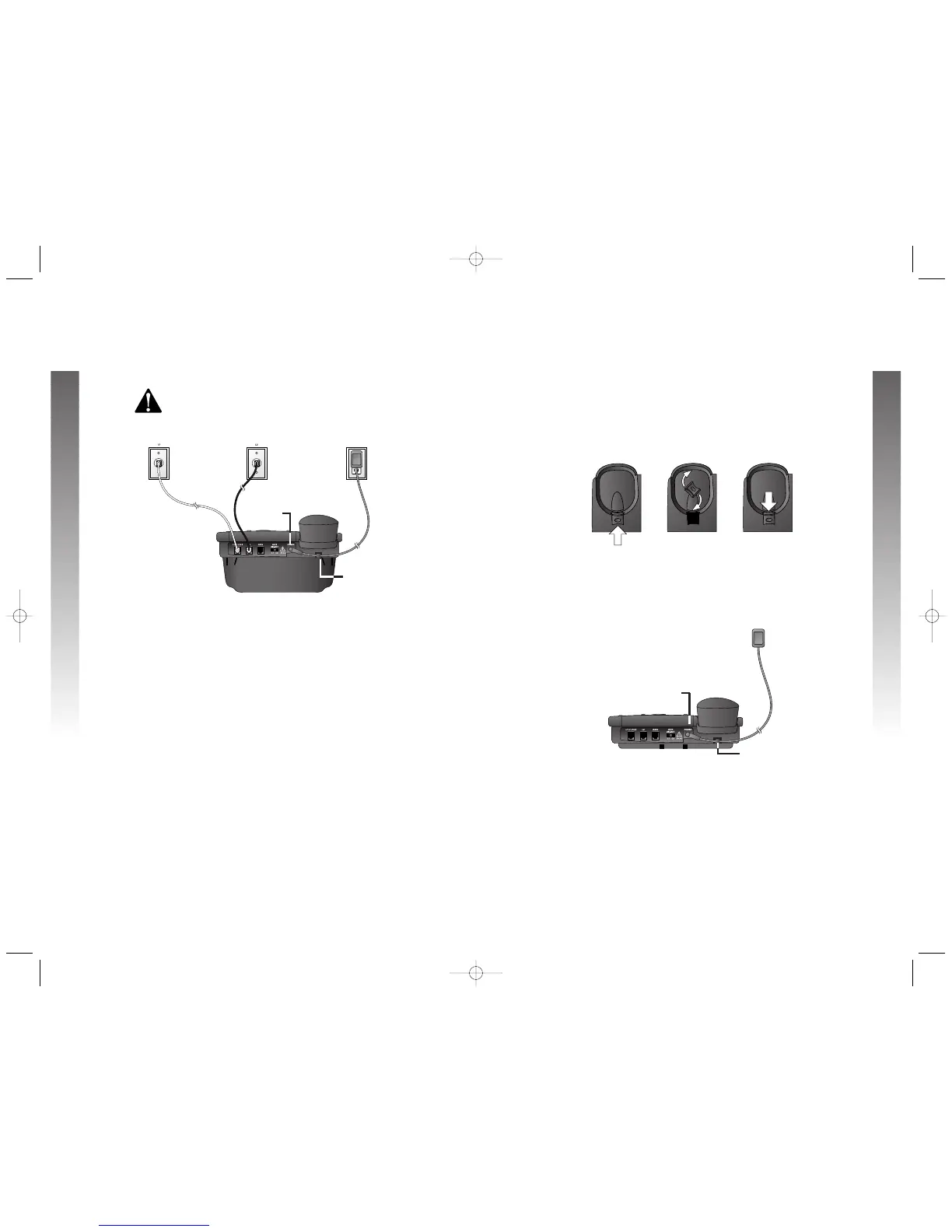

Figure 1 Figure 2 Figure 3
Power
cord
POWER
jack
Strain
relief tab
Power
adapter
