AT&T MERLIN 820 User Manual

Trouble on an Accessory
CONTROL UNIT
TO EXTRA-ALERT
BELL OR HORN
170A
CARTRIDGE
(TYPE III)
EXTRA-
ALERT
JACK
D4CH
MODULAR
LINE
CORD

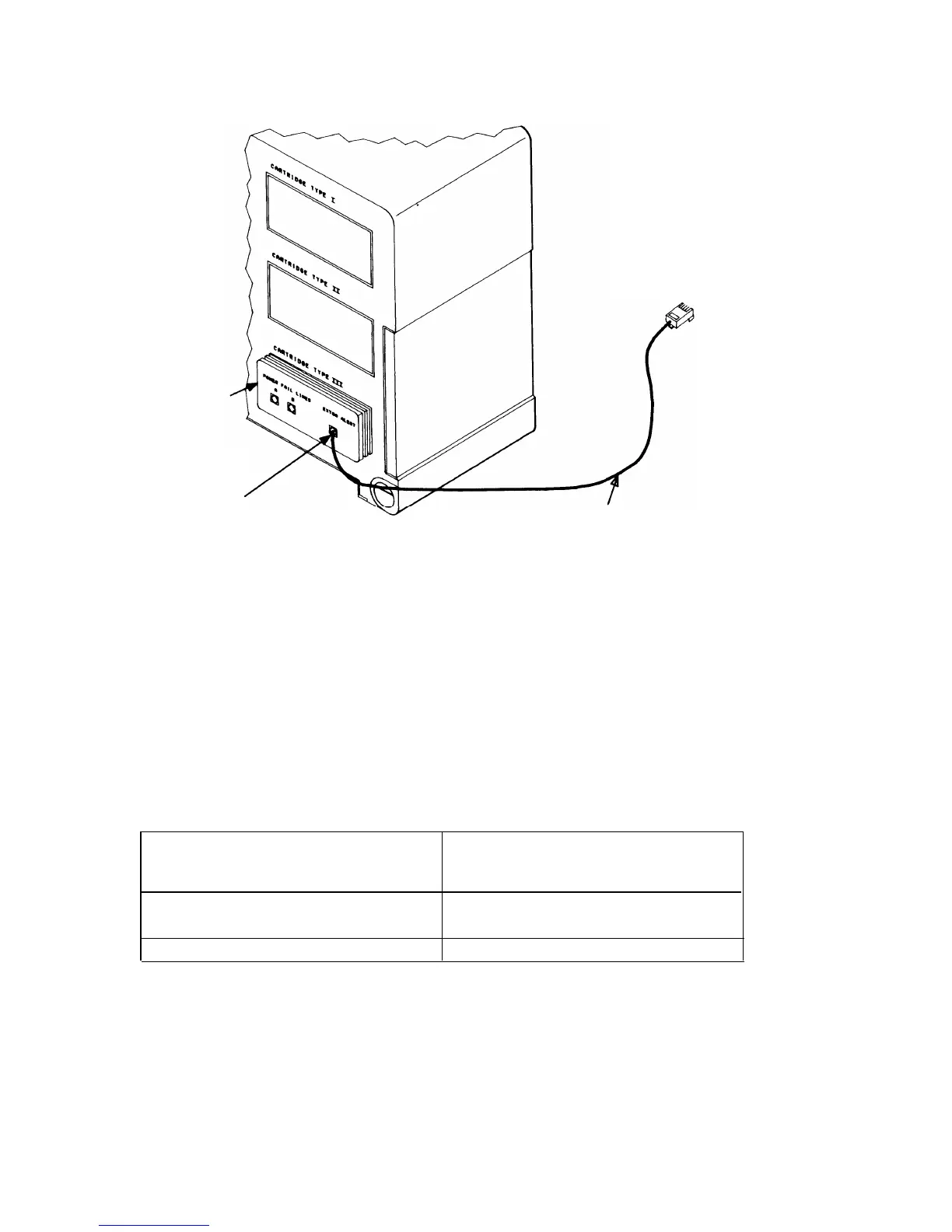

Figure 45—Type III Cartridge and Extra-Alert Modular Line Cord
Step 2.
If your extra alert requires a separate 117-volt ac power supply, check that
power is being supplied from the ac outlet. Use a lamp, radio, or similar
device to check the ac outlet. Be sure to use an ac outlet providing 117-
volt ac power, if it is required. Using a voice terminal, dial an outside call
to your other line.
IF
THEN
The extra alert works properly,
Trouble found. The extra alert
requires 117-volt ac power.
The extra alert does not work,
Go on to Step 3.
Page 90

AT&T MERLIN 820 Specifications

General

Brand	AT&T
Model	MERLIN 820
Category	Conference System
Language	English
