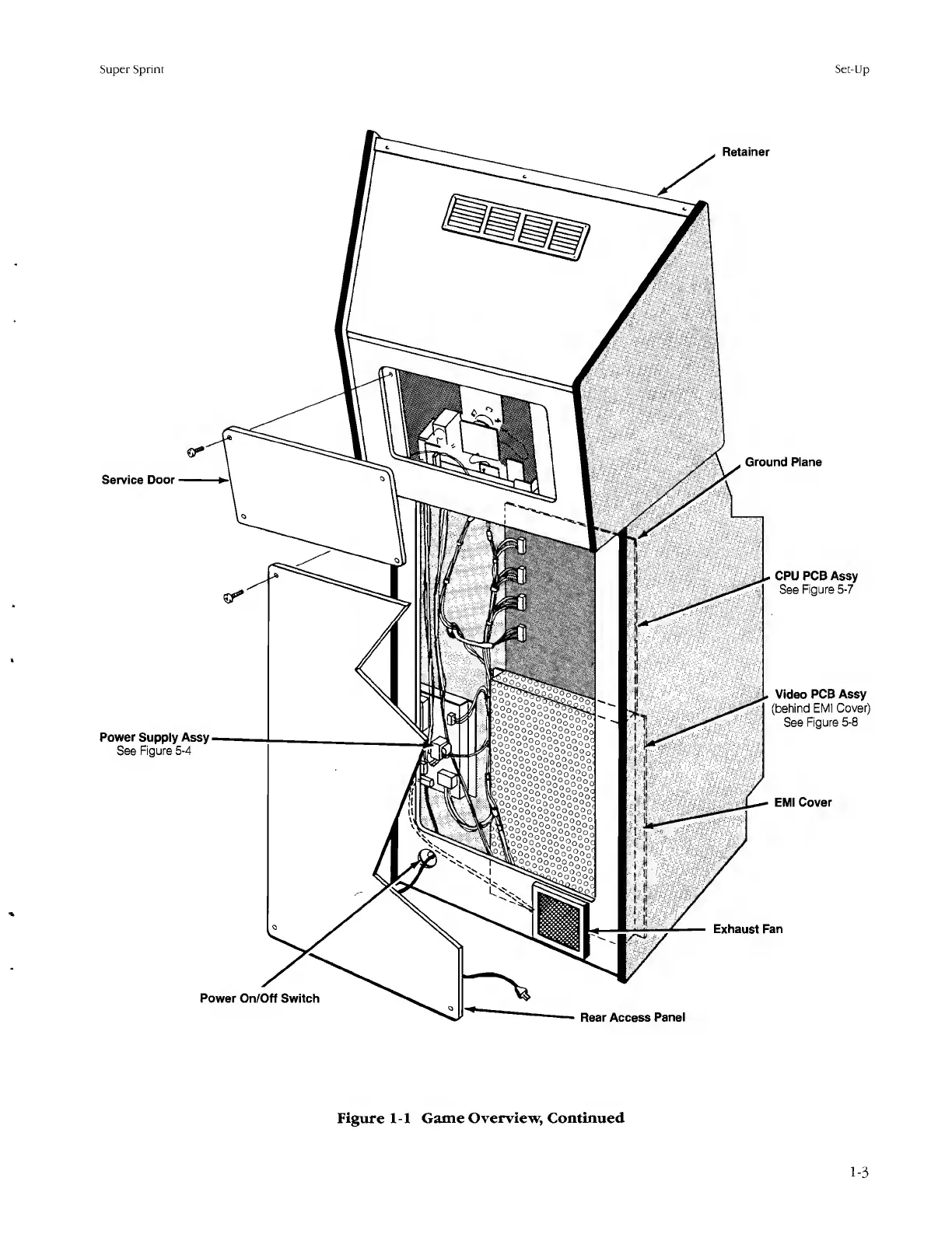

Atari SUPER SPRINT - Figure 1-1 Game Overview

Super Sprint Set-Up
Retainer
CPU PCB Assy
See Figure 5-7
Service Door
Ground Plane
Power On/Off Switch
Rear Access Panel
Power Supply Assy
See Figure 5-4
Video PCB Assy
(behind EMI Cover)
See Figure 5-8
EMI Cover
Exhaust Fan
Figure 1-1 Game Overview, Continued
