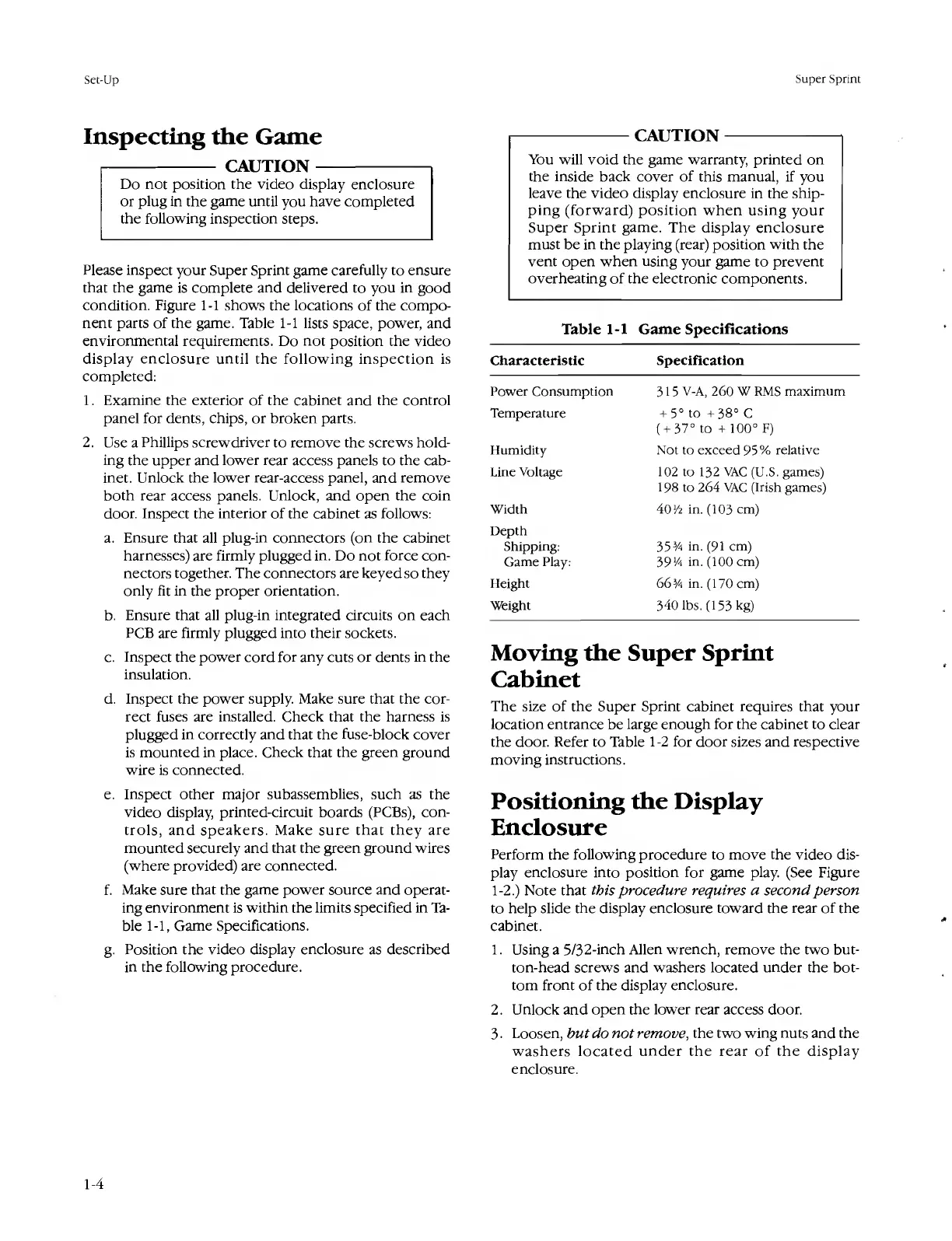

Set-Up
Super Sprint
Inspecting the Game
-caution-
Do not position the video display enclosure
or plug in the game until you have completed
the following inspection steps.
Please inspect your Super Sprint game carefully to ensure
that the game is complete and delivered to you in good
condition. Figure 1-1 shows the locations of the compo¬
nent parts of the game. Table 1-1 lists space, power, and
environmental requirements. Do not position the video
display enclosure until the following inspection is
completed:
1. Examine the exterior of the cabinet and the control
panel for dents, chips, or broken parts.
2. Use a Phillips screwdriver to remove the screws hold¬
ing the upper and lower rear access panels to the cab¬
inet. Unlock the lower rear-access panel, and remove
both rear access panels. Unlock, and open the coin
door. Inspect the interior of the cabinet as follows:
a. Ensure that all plug-in connectors (on the cabinet
harnesses) are firmly plugged in, Do not force con¬
nectors together. The connectors are keyed so they
only fit in the proper orientation.
b. Ensure that all plug-in integrated circuits on each
PCB are firmly plugged into their sockets.
c. Inspect the power cord for any cuts or dents in the
insulation.
d. Inspect the power supply. Make sure that the cor¬
rect fuses are installed. Check that the harness is
plugged in correctly and that the fuse-block cover
is mounted in place. Check that the green ground
wire is connected.
e. Inspect other major subassemblies, such as the
video display, printed-circuit boards (PCBs), con¬
trols, and speakers. Make sure that they are
mounted securely and that the green ground wires
(where provided) are connected.
f. Make sure that the game power source and operat¬
ing environment is within the limits specified in Ta¬
ble 1-1, Game Specifications.
g. Position the video display enclosure as described
in the following procedure.
-CAUTION-
You will void the game warranty, printed on
the inside back cover of this manual, if you
leave the video display enclosure in the ship¬
ping (forward) position when using your
Super Sprint game. The display enclosure
must be in the playing (rear) position with the
vent open when using your game to prevent
overheating of the electronic components.
Table 1-1 Game Specifications
Characteristic
Specification
Power Consumption
315 V-A, 260 W RMS maximum
Temperature + 5° to +38° C
( + 37° to + 100° F)
Humidity
Not to exceed 95% relative
Line Voltage 102 to 132 VAC (U.S. games)
198 to 264 VAC (Irish games)
Width
40 /2 in. (103 cm)
Depth
Shipping:
Game Play:
35% in. (91 cm)
39% in. (100 cm)
Height 66% in. (170 cm)
Weight
340 lbs. (153 kg)
Moving the Super Sprint
Cabinet
The size of the Super Sprint cabinet requires that your
location entrance be large enough for the cabinet to clear
the door. Refer to Table 1-2 for door sizes and respective
moving instructions.
Positioning the Display
Enclosure
Perform the following procedure to move the video dis¬
play enclosure into position for game play. (See Figure
1-2.) Note that this procedure requires a second person
to help slide the display enclosure toward the rear of the
cabinet.
1. Using a 5/32-inch Allen wrench, remove the two but¬
ton-head screws and washers located under the bot¬
tom front of the display enclosure.
2. Unlock and open the lower rear access door.
3. Loosen, but do not remove, the two wing nuts and the
washers located under the rear of the display
enclosure.
1-4
