Illustrated Parts Lists
Super Sprint
A WARNING A
This 5-volt switching power supply may not
have a shield as illustrated below. The power
supply has high voltages on it when power
is turned on. Therefore, be sure you do not
touch this power supply unless you have
turned off the power to the game.
Fuse Label

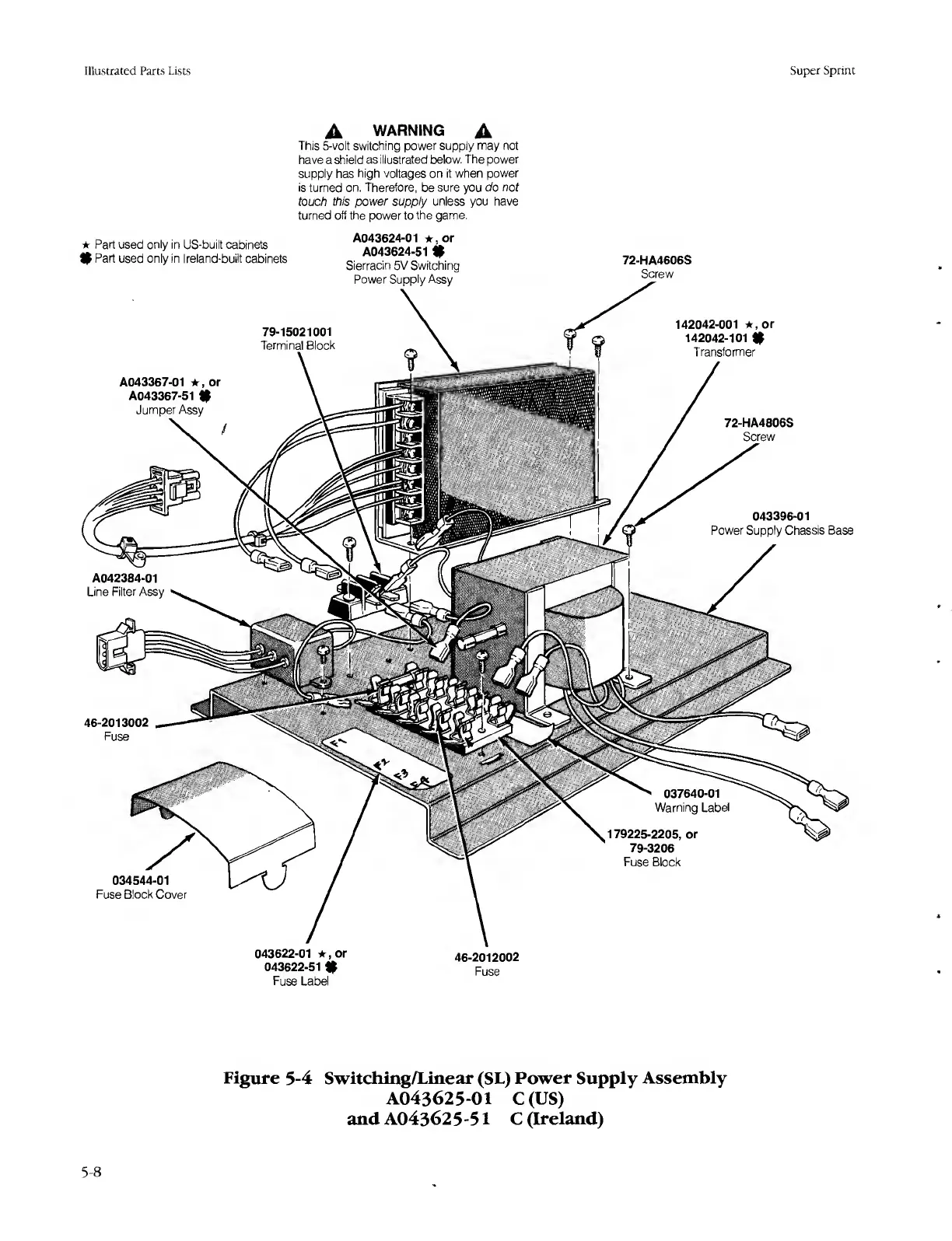

Figure 5-4 Switching/Linear (SL) Power Supply Assembly
A043625-01 C(US)
and A04362 5-51 C (Ireland)
5-8
