Illustrated Parts Lists
Super Sprint
* Part used only in US-built cabinets
4 | Part used only in Ireland-built cabinets
139012-1206
ADI (Disco) Display, or
139012-1202
Wells-Gardner Display
043551-01 ★ ,
or 043551-51 Q
Video Display Shield
Control Panel Assy
See Figure 5-2
043652-01 ★ , or
043652-51 #
Display Bezel
043656-01 ★ , or
043656-51 #
Speaker Grille
148004-001 - \ ."
Speaker —
043672-01 *, or
043672-51 4 |
— 1 --
]
-
u
Control Panel Bracket-
(underneath control panel)
\
Audio II PCB Assy
See Figure 5-9
171078-002
Coin Counter
Steering Wheel Assy
See Figure 5-3
Coin Door Assy
See Figure 5-5
A043558-01 *,or
A043558-51 *
Cabinet Assy
78-3201
Adjustable Glide
043654-01 ★ , or
043654-51 #
Left-Corner Panel Decal
043651-01 ★ , or
043651-51 #
Coin Decal
043654-02 ★ , or
043654-52 41
Right-Corner Panel Decal
Items Not Shown
A043614-01 *,or
A043614-51 #
Speaker Harness Assy
A043619-01 +, or
A043619-51 41
Control Panel Harness Assy
178013-001
Spring Draw Latch
035941-01
Coin Box
A043424-01
Locking Bar Assy
(Optional)

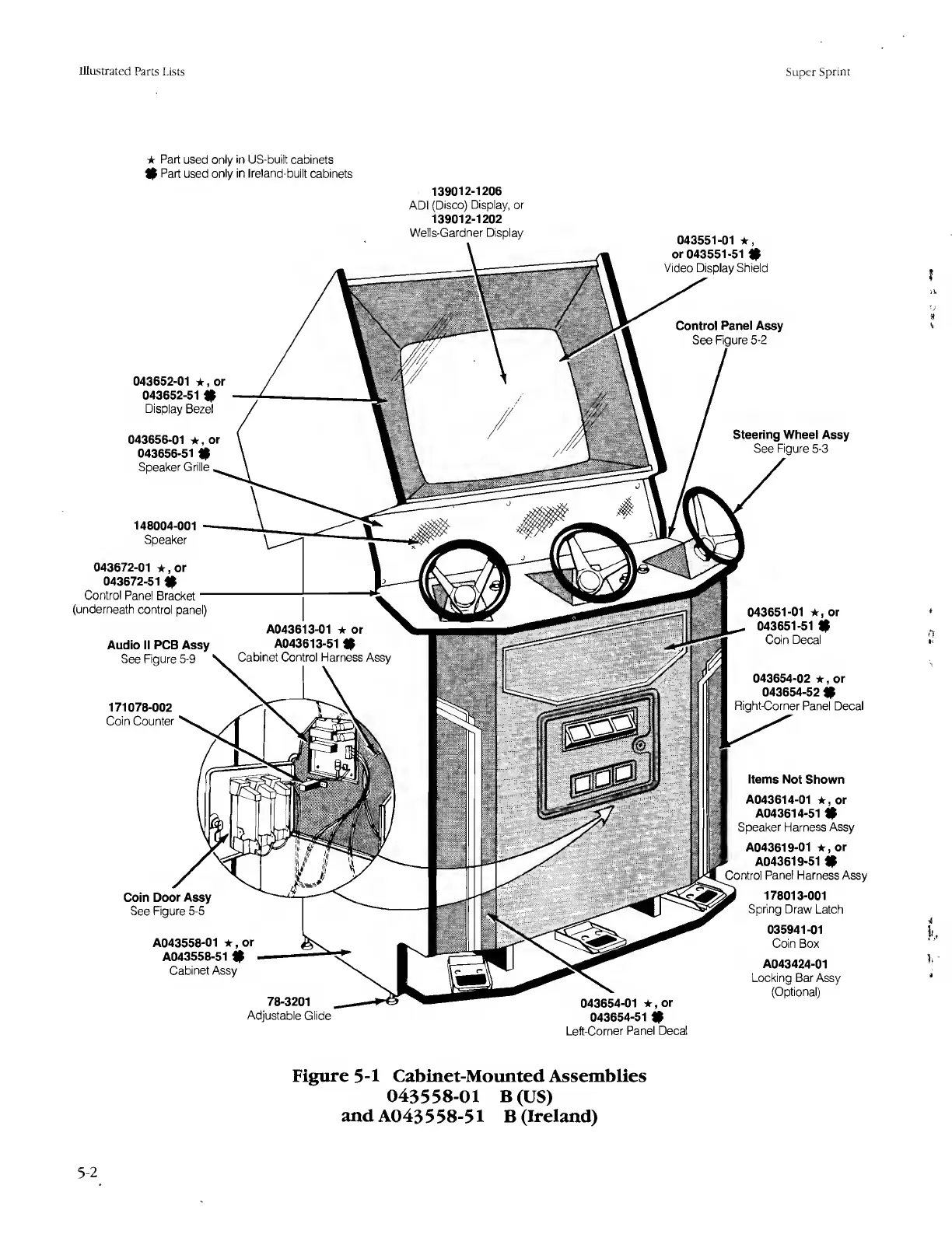

Figure 5-1 Cabinet-Mounted Assemblies
043558-01 B (US)
and A043 558-51 B (Ireland)
5-2
