Atari SUPER SPRINT - Page 41

Super Sprint
Illustrated Parts Lists
\
Hr
o
«
I
h
T '
043552-01 ★ , or
043552-51 H
Retainer
A043612-01 ★ , or
A043612-51 *
Secondary Power Harness Assy
043550-01 ★ , or
043550-51 H
Service Door
A043615-01 ★ , or
A043615-51 *
Video Harness Assy
A043377-01 ★ . o r
A043377-51 *
Display Power Harness Assy
Power Supply Assy
See Figure 5-4
A043055-01 ★ , or
A043055-04 *
On/Off Switch & Power Cord
A043617-01 ★
A043617-51 4|
Fan Harness Assy
NOTE
To comply with emission
requirements, the Federal
Communications Com¬
mission requires that the
Video PCS Assembly be
housed m the EMI cover
Do not operate this game
without properly installing
the EMI cover metal
spacers, and thumb nuts.
CPU PCB Assy
See Figure 5-7
034536-02,
034536-04,
034536-10
Vibration Damper
043544-01 ★ , or
043544-51 41
Ground Plane
Video PCB Assy
See Figure 5-8
(behind EMI cover)
043148-01
EMI Cover
043559-01 ★ . o r
043559-51 4|
Ventilation Grille
043540-01 ★ . o r
043540-51 4|
Rear Access Panel

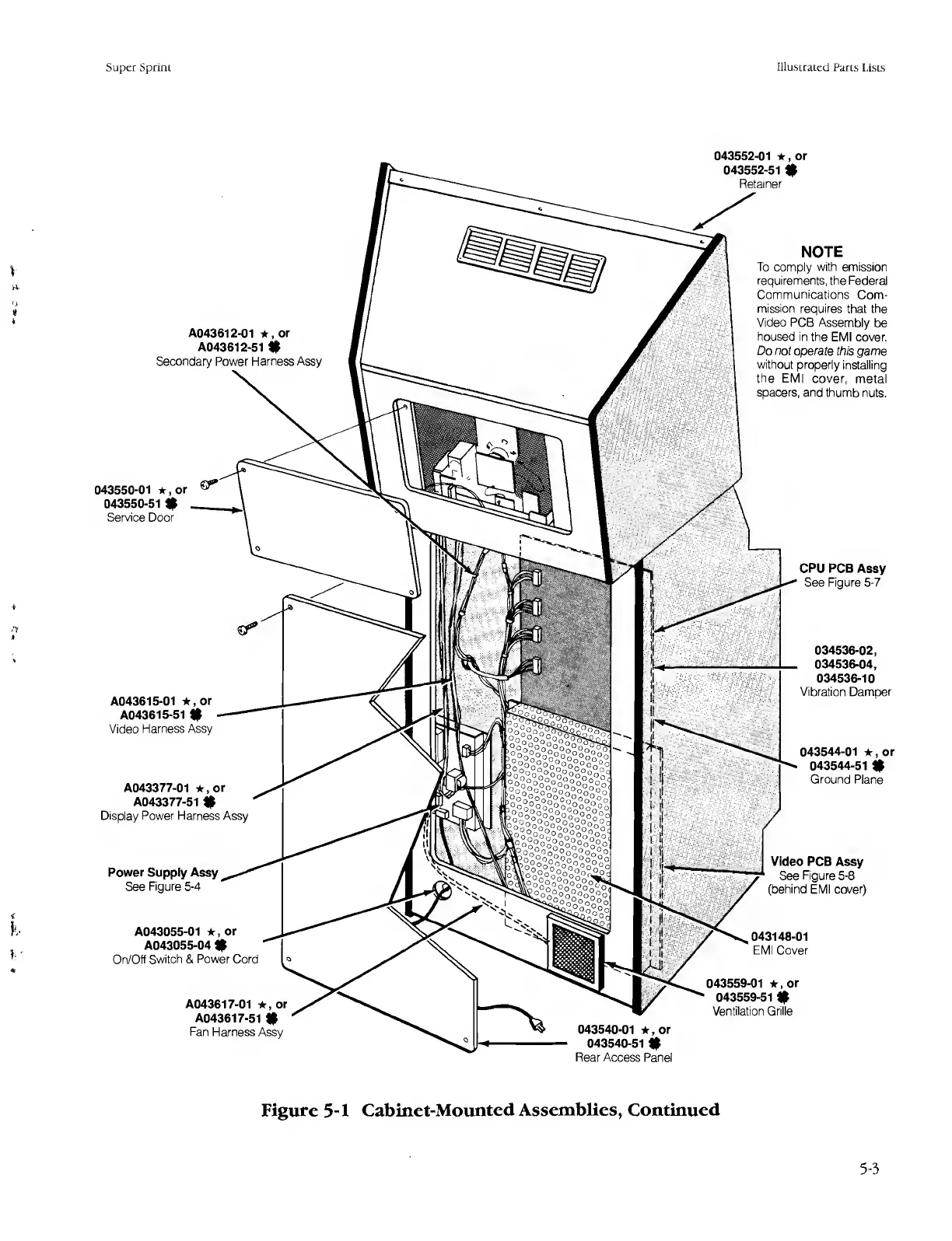

Figure 5-1 Cabinet-Mounted Assemblies, Continued
5-3
