Illustrated Parts Lists

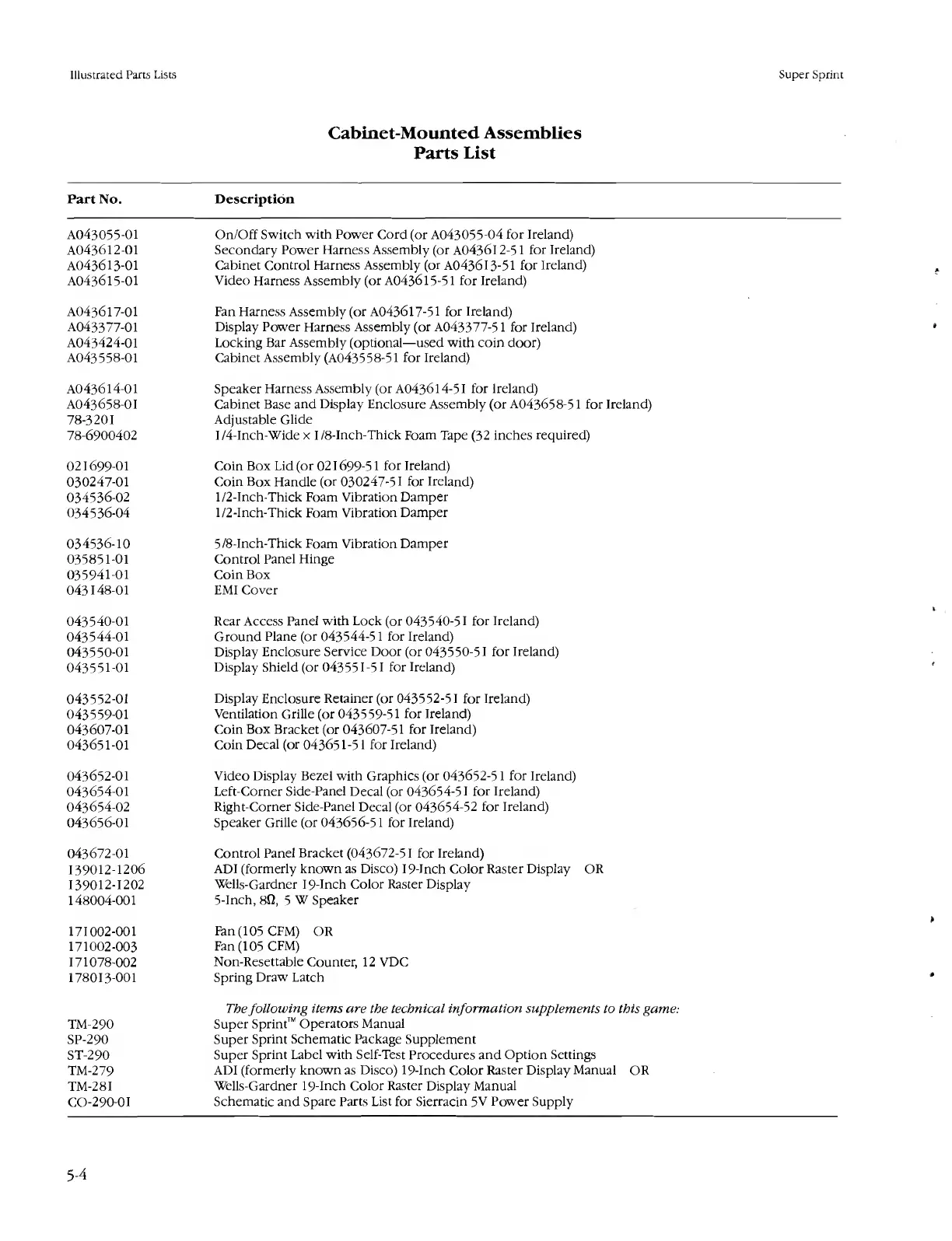

Cabinet-Mounted Assemblies
Parts List
Super Sprint
Part No.
Description
A043055-01
A043612-01
A043613-01
A043615-01
On/Off Switch with Power Cord (or A043055-04 for Ireland)
Secondary Power Harness Assembly (or A043612-51 for Ireland)
Cabinet Control Harness Assembly (or A043613-51 for Ireland)
Video Harness Assembly (or A043615-51 for Ireland)
A043617-01
A043377-01
A043424-01
A043558-01
Fan Harness Assembly (or A043617-51 for Ireland)
Display Power Harness Assembly (or A043377-51 for Ireland)
Locking Bar Assembly (optional—used with coin door)
Cabinet Assembly (A043558-51 for Ireland)
A043614-01
A043658-01
78-3201
78-6900402
Speaker Harness Assembly (or A043614-51 for Ireland)
Cabinet Base and Display Enclosure Assembly (or A043658-51 for Ireland)
Adjustable Glide
1/4-Inch-Wide x 1/8-Inch-Thick Foam Tape (32 inches required)
021699-01
030247-01
034536-02
034536-04
Coin Box Lid (or 021699-51 for Ireland)
Coin Box Handle (or 030247-51 for Ireland)
1 /2-Inch-Thick Foam Vibration Damper
1/2-Inch-Thick Foam Vibration Damper
034536-10
035851-01
035941-01
043148-01
5/8-Inch-Thick Foam Vibration Damper
Control Panel Hinge
Coin Box
EMI Cover
043540-01
043544-01
043550-01
043551-01
Rear Access Panel with Lock (or 043540-51 for Ireland)
Ground Plane (or 043544-51 for Ireland)
Display Enclosure Service Door (or 043550-51 for Ireland)
Display Shield (or 043551-51 for Ireland)
043552-01
043559-01
043607-01
043651-01
Display Enclosure Retainer (or 043552-51 for Ireland)
Ventilation Grille (or 043559-51 for Ireland)
Coin Box Bracket (or 043607-51 for Ireland)
Coin Decal (or 043651-51 for Ireland)
043652-01
043654-01
043654-02
043656-01
Video Display Bezel with Graphics (or 043652-51 for Ireland)
Left-Corner Side-Panel Decal (or 043654-51 for Ireland)
Right-Corner Side-Panel Decal (or 043654-52 for Ireland)
Speaker Grille (or 043656-51 for Ireland)
043672-01
139012-1206
139012-1202
148004-001
Control Panel Bracket (043672-51 for Ireland)
ADI (formerly known as Disco) 19-Inch Color Raster Display OR
Wells-Gardner 19-Inch Color Raster Display
5-Inch, 8Q, 5 W Speaker
171002-001
171002-003
171078-002
178013-001
Fan (105 CFM) OR
Fan (105 CFM)
Non-Resettable Counter, 12 VDC
Spring Draw Latch
TM-290
SP-290
ST-290
TM-279
TM-281
CO-290-01
The following items are the technical information supplements to this game:
Super Sprint ™ Operators Manual
Super Sprint Schematic Package Supplement
Super Sprint Label with Self-Test Procedures and Option Settings
ADI (formerly known as Disco) 19-Inch Color Raster Display Manual OR
Wells-Gardner 19-Inch Color Raster Display Manual
Schematic and Spare Parts List for Sierracin 5V Power Supply
5-4
