Super Sprint
Illustrated Parts Lists
043563-01 ★ , or
043563-51 H
Spacer
85-23F110
Screw
043650-01 ★ , or
043650-51 $
Control Panel Decal
75-991ONO
Stamped Nut
043463-01 ★ , or
043463-51 4|
Bow Washer
A043554-01 ★ , or
A043554-51 4t
Control Panel Sub-Assy
A043619-01 ★ , or
A043619-51 41
Plarness Assy
Steering Wheel Assembly
See Figure 5-3
★ Part used only in US-built cabinets
4t Part used only in Ireland-built cabinets
178030-003
Button Assy
160013-001
Leaf Switch with Button Holder

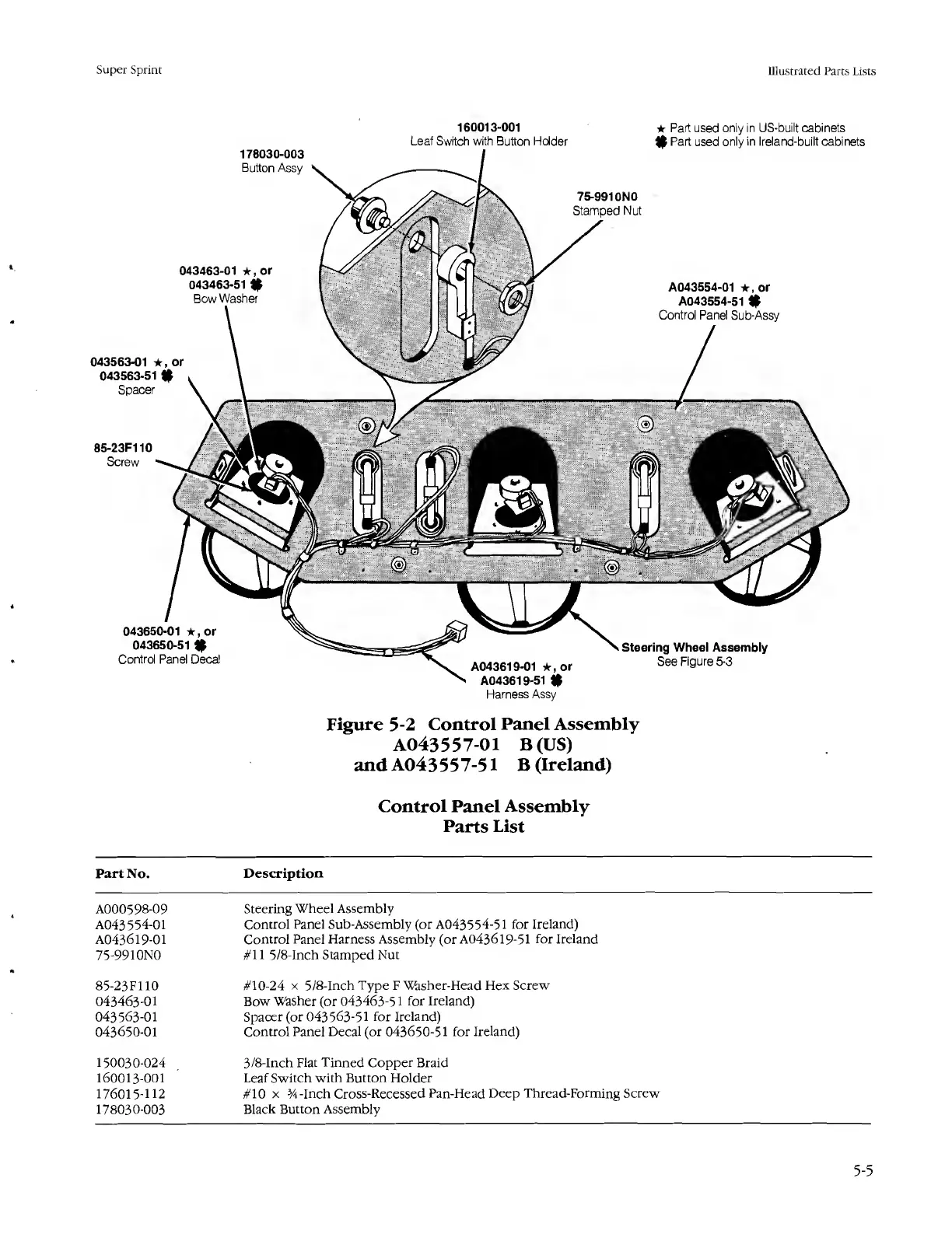

Figure 5-2 Control Panel Assembly
A043557-01 B (US)
and A043557-51 B (Ireland)
Control Panel Assembly
Parts List
Part No.
Description
'
A000598-09
A043554-01
A043619-01
75-9910N0
Steering Wheel Assembly
Control Panel Sub-Assembly (or A043 554-51 for Ireland)
Control Panel Harness Assembly (or A043619-51 for Ireland
#11 5/8-Inch Stamped Nut
85-23F110
043463-01
043563-01
043650-01
#10-24 x 5/8-Inch Type F Washer-Head Hex Screw
Bow Washer (or 043463-51 for Ireland)
Spacer (or 043563-51 for Ireland)
Control Panel Decal (or 043650-51 for Ireland)
150030-024
160013-001
176015-112
178030-003
3/8-Inch Flat Tinned Copper Braid
Leaf Switch with Button Holder
#10 x %-Inch Cross-Recessed Pan-Head Deep Thread-Forming Screw
Black Button Assembly
5-5
