Atari SUPER SPRINT - Page 44

Illustrated Parts Lists Super Sprint
78-40104
Steering Wheel
75-055
Tooth Washer
75-035S
Washer
000599-02
Logo Cover
000606-01
Shaft
72-7512
Screw
72-9580
Screw
76-092020
Thompson Bearing
000605-01
Housing
75-99515
Nut/Washer Assy
A035220-02
Coupler PCB Assy
75-012S
Washer
000616-01
Encoder Hub
85-22F206
Screw

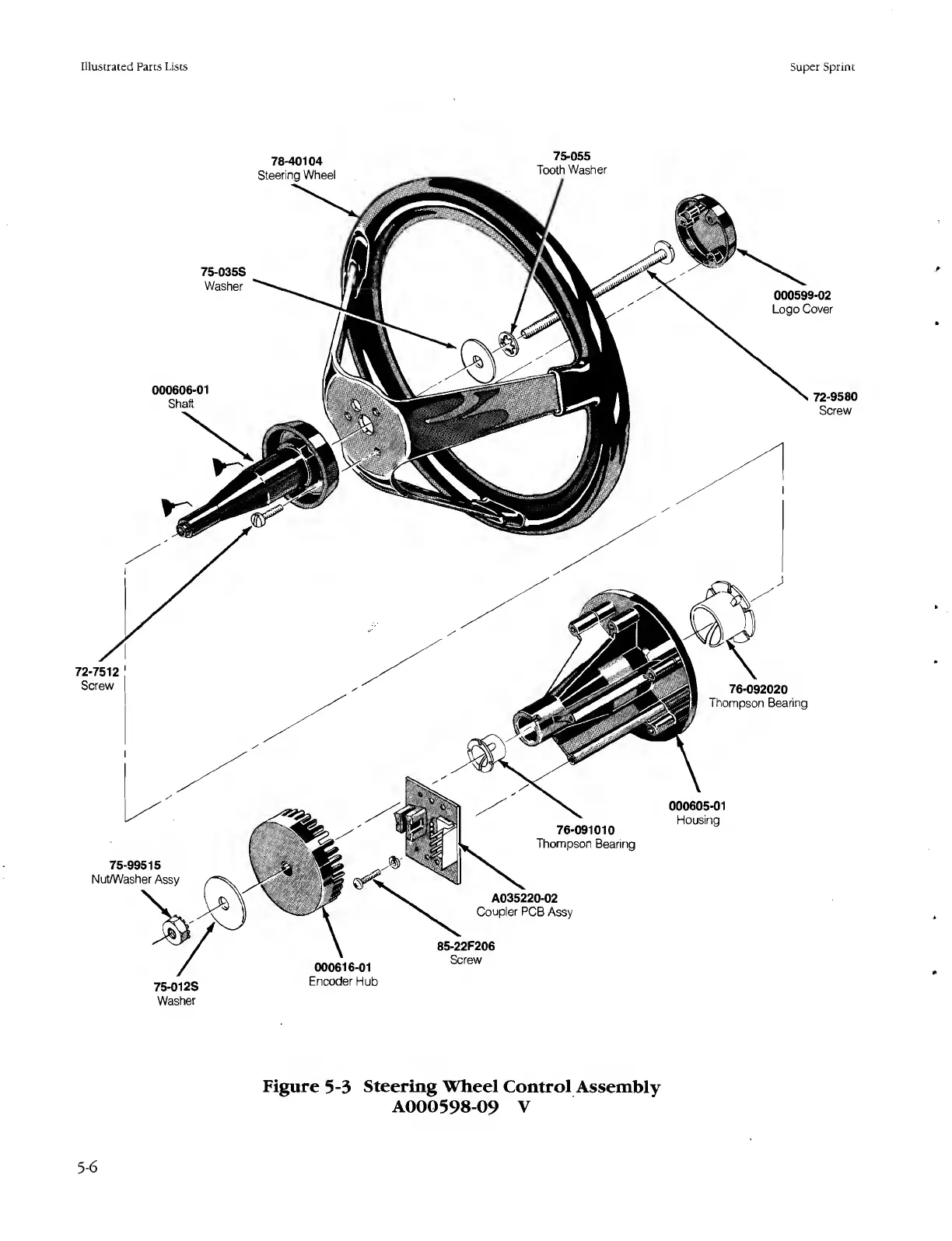

Figure 5-3 Steering Wheel Control Assembly
A000598-09 V
5-6
