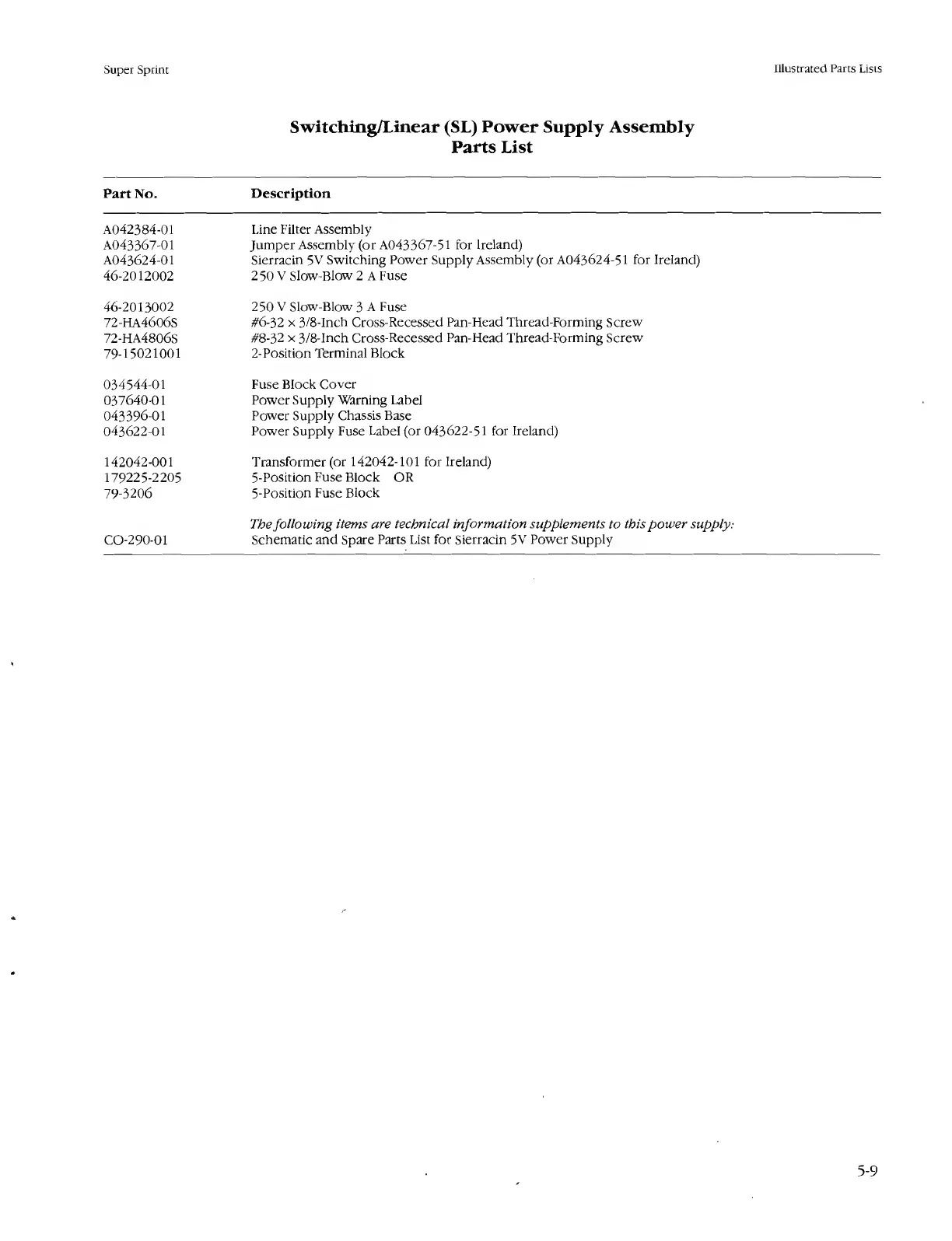

Super Sprint
Illustrated Parts Lists
Switching/Linear (SL) Power Supply Assembly
Parts List
Part No.
Description
A042384-01
A043367-01
A043624-01
46-2012002
Line Filter Assembly
Jumper Assembly (or A043367-51 for Ireland)
Sierracin 5V Switching Power Supply Assembly (or A043624-51 for Ireland)
250 V SIow-Blow 2 A Fuse
46-2013002
72-HA4606S
72-HA4806S
79-15021001
250 V Slow-Blow 3 A Fuse
#6-32 x 3/8-Inch Cross-Recessed Pan-Head Thread-Forming Screw
#8-32 x 3/8-Inch Cross-Recessed Pan-Head Thread-Forming Screw
2-Position Terminal Block
034544-01
037640-01
043396-01
043622-01
Fuse Block Cover
Power Supply Warning Label
Power Supply Chassis Base
Power Supply Fuse Label (or 043622-51 for Ireland)
142042-001
179225-2205
79-3206
Transformer (or 142042-101 for Ireland)
5-Position Fuse Block OR
5-Position Fuse Block
CO-290-01
The following items are technical information supplements to this power supply:
Schematic and Spare Parts List for Sierracin 5V Power Supply
