Illustrated Parts Lists
Super Sprint
99-15105
Bezel for Button
99-15086
Coin Mechanism
(part is not exactly
as illustrated)
99-15104
Base Plate
— 99-15106
Bezel for Cover
99-15055
Retaining Screw
75 - 9148 ^
Hex Nut f
75-056
Lock Washer
99-15092
Side Plate
Coin Return
99-15087
Harness
(not shown)
99-15096
Switch Adjuster
99-15103
Switch Cover
75-3414S
Screw
72-1414S
Screw

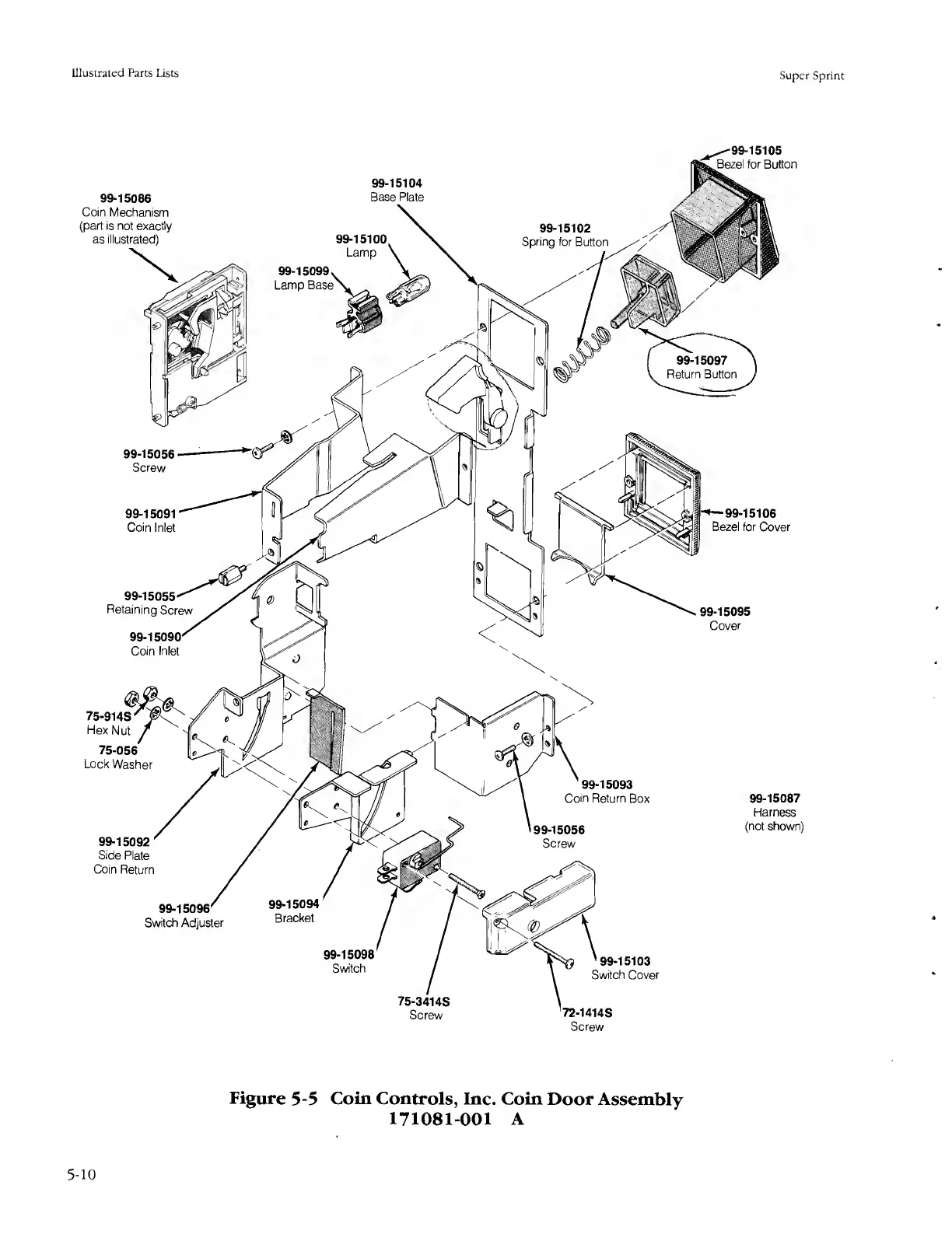

Figure 5-5 Coin Controls, Inc. Coin Door Assembly
171081-001 A
5-10
