Atari SUPER SPRINT - Page 71

Super Sprint Illustrated Parts Lists

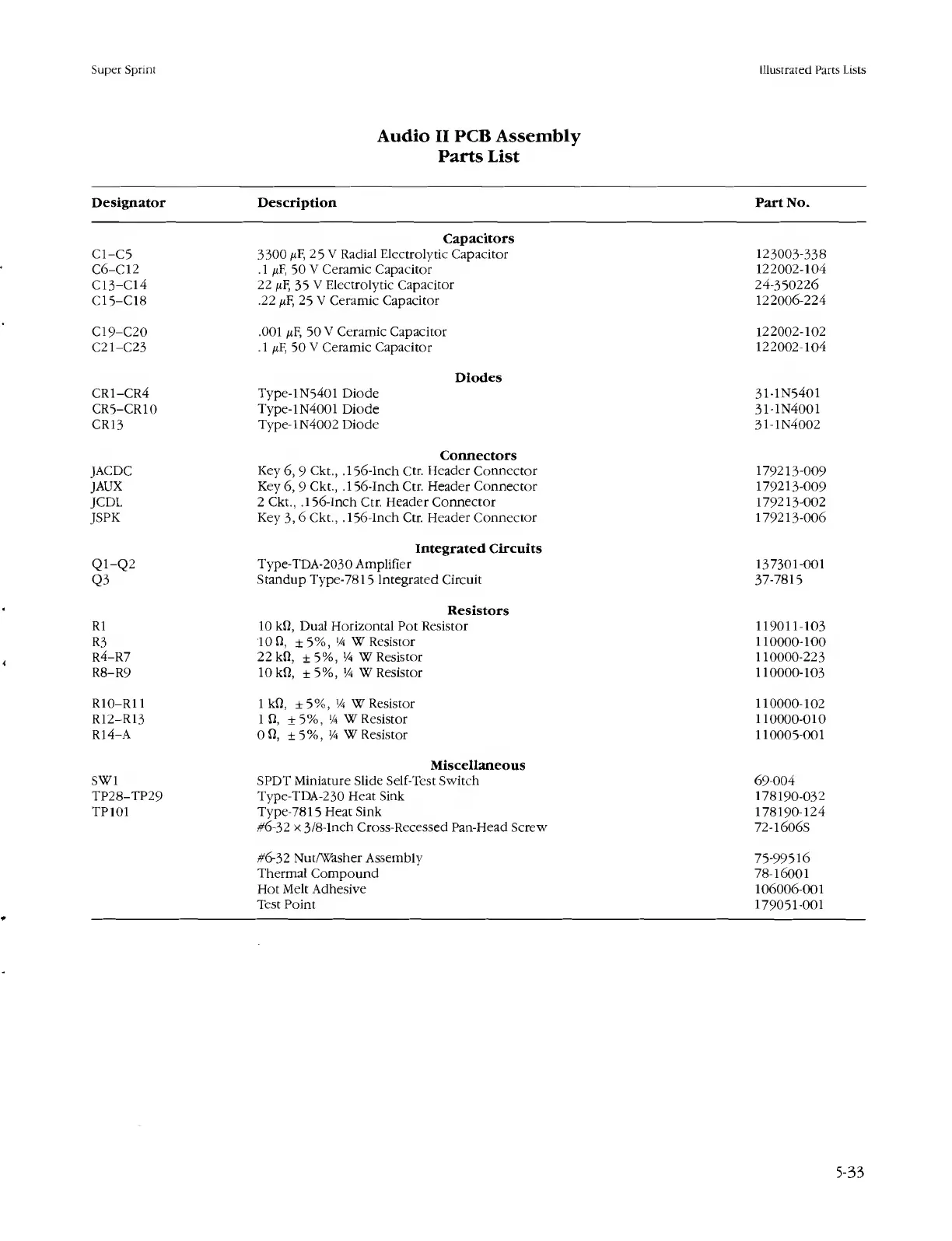

Audio II PCB Assembly
Parts List
Designator Description Part No.
C1-C5
Capacitors
3300 /tF, 25 V Radial Electrolytic Capacitor 123003-338
C6-C12
. 1 /tF, 50 V Ceramic Capacitor
122002-104
C13-C14 22 /tF, 35 V Electrolytic Capacitor
24-350226
C15-C18 .22 /tF, 25 V Ceramic Capacitor 122006-224
C19-C20
.001 /tF, 50 V Ceramic Capacitor
122002-102
C21-C23
. 1 /tF, 50 V Ceramic Capacitor
122002-104
CR1-CR4
Diodes
Type-1N5401 Diode
31-1N5401
CR5-CR10
Type-1N4001 Diode
31-1N4001
CR13
Type-1N4002 Diode 31-1N4002
JACDC
Connectors
Key 6, 9 Ckt., .156-Inch Ctr. Header Connector
179213-009
JAUX
Key 6, 9 Ckt., . 156-Inch Ctr. Header Connector
179213-009
JCDL 2 Ckt., .156-Inch Ctr. Header Connector 179213-002
JSPK Key 3, 6 Ckt., . 156-lnch Ctr. Header Connector
179213-006
Q1-Q2
Integrated Circuits
Type-TDA-2030 Amplifier
137301-001
Q3
Standup Type-7815 Integrated Circuit
37-7815
R1
Resistors
10 kfi, Dual Horizontal Pot Resistor
119011-103
R3
10 Q, ± 5 %, 'A W Resistor 110000-100
R4-R7 22 kG, ±5%, V4 W Resistor
110000-223
R8-R9
10 kfi, ±5%, 'A W Resistor
110000-103
R10-R11
1 kQ, +5%, l A W Resistor
110000-102
R12-R13
lfi, ±5%, 'AW Resistor 110000-010
R14-A
0 fi, ± 5%, 'A W Resistor
110005-001
SW1
Miscellaneous
SPDT Miniature Slide Self-Test Switch
69-004
TP28-TP29
Type-TDA-230 Heat Sink
178190-032
TP101
Type-7815 Heat Sink
178190-124
#6-32 x 3/8-Inch Cross-Recessed Pan-Head Screw
72-1606S
#6-32 Nut/Washer Assembly 75-99516
Thermal Compound
78-16001
Hot Melt Adhesive
106006-001
Test Point 179051-001
5-33
