11
FUTURE USE, NOT CURRENTLY
AVAILABLE
Option Description:
Remote setpoints use either voltage or current inputs, depending on the specified option:
Option 80: 0-5 V
Option 81: 1-5 V
Option 82: 0-20 mA
Option 83: 4-20 mA
Option 84: 0-10 V
The input signal is scalable in the Remote Analog Setpoint Menu. Activation of the analog setpoint causes
the F1 indicator to illuminate. For current (mA) options, the input resistance is 255 ohms. For voltage input
options, the input resistance is greater than 10K ohms.
* Ground shield at one end, taking care not to run wires next to power circuitry. Maximum length will be
determined by noise performance.

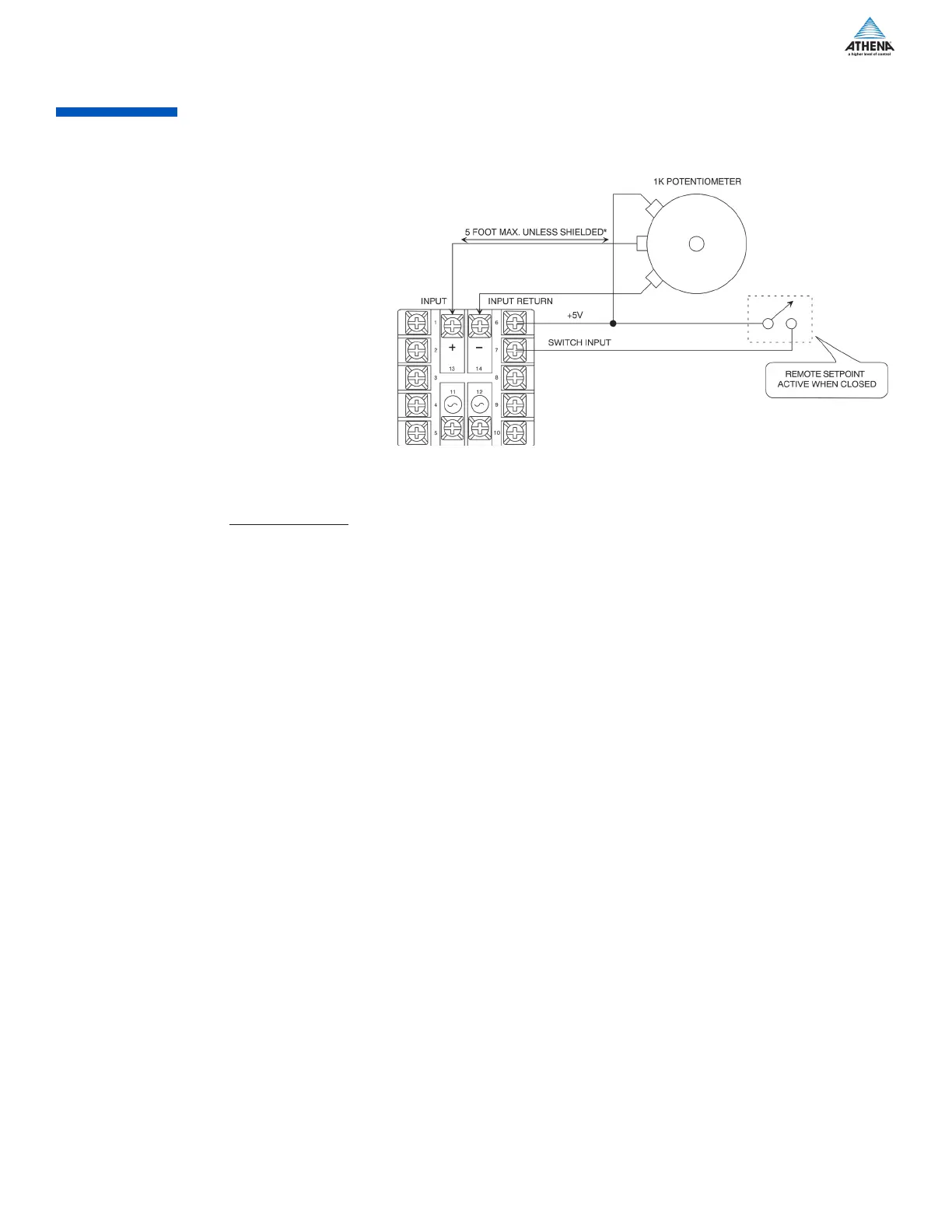

Figure 17. Wiring for Remote Analog Setpointontact Identification
