20

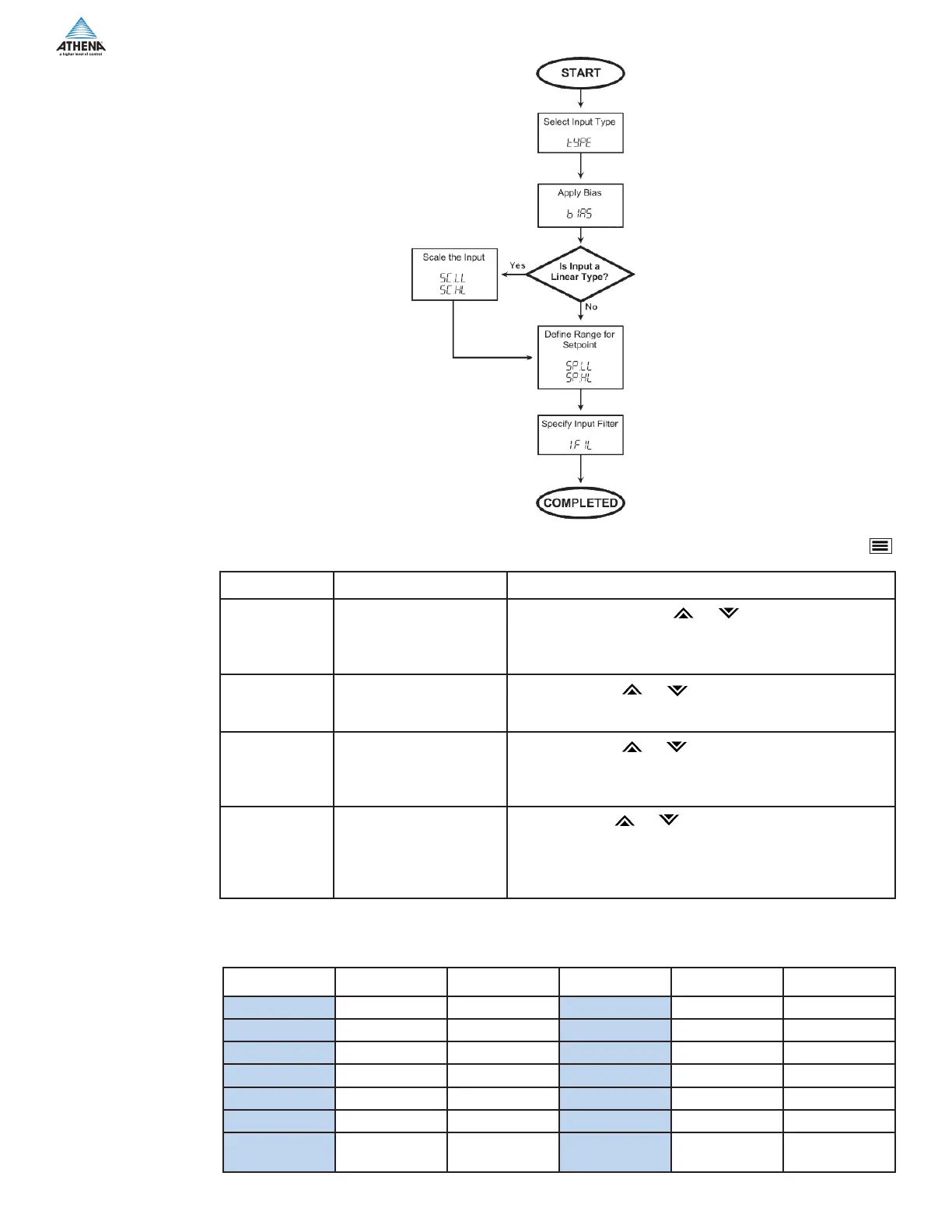

Display Parameter Available Selections
biAs
-100 to 100 - Use the or to set the bias value. Bias
allows the operator to compensate for any difference between sensor
temperature and the point to be measured. The process display and
setpoint will be offset by the value entered here.
sp.ll
Lower Setpoint Limit
-320 - Use the or to set the value of the lower limit of
the setpoint, i.e. lowest value of the span of the sensor. This limit prohibits
users from adjusting the setpoint lower than the value entered here
sp.Hl
Upper Setpoint Limit
400 - Use the or to set the value of the upper limit of
the setpoint, i.e. the highest value of the span of the sensor. This limit
prohibits users from adjusting the setpoint higher than the value entered
here
I.FIL
Filtering
0. 2 - Use the or to set any ltering delay (in seconds)
between 0.1 to 10 seconds. In the Input menu, ltering changes the
speed for the process value display only, it does not affect control. This
parameter is mainly used to slow down the flickering of the display when the
decimal position chosen is greater than zero.
If a TemperaTure InpuT Type has been selecTed, The followIng opTIons wIll subsequenTly appear If The
buTTon Is selecTed.
B thermocouple
32
o
F / 0
o
C 3308
o
F / 1820
o
C
C thermocouple
32
o
F / 0
o
C 4199
o
F / 2315
o
C
E thermocouple
-238
o
F / -150
o
C 1832
o
F / 1000
o
C
J thermocouple
-328
o
F / -200
o
C 1400
o
F / 760
o
C
K thermocouple
-454
o
F / -270
o
C 2469
o
F / 1354
o
C
N thermocouple
-450
o
F / -268
o
C 2372
o
F / 1300
o
C
NNM t/c
32
o
F / 0
o
C 2570
o
F / 1410
o
C
R thermocouple
-58
o
F / -50
o
C 3214
o
F / 1768
o
C
S thermocouple
-58
o
F / -50
o
C 3214
o
F / 1768
o
C
T thermocouple
-454
o
F / -270
o
C 752
o
F / 400
o
C
Platinel II t/c
-148
o
F / -100
o
C 2250
o
F / 1232
o
C
PT100 RTD
-328
o
F / -200
o
C 1562
o
F / 850
o
C
PT100 RTD
decimal
-328
o
F / -200
o
C 707
o
F / 375
o
C
Linear Input
-1999 9999
In the selections above, and in subsequent parameter selections, the ‘span of sensor’ phrase is used. The
table below indicates the span of typical sensors .
