Torque/angle graph
The torque/angle graph menu shows the graph from the latest tightening with the following additional infor-
mation:
■
Peak = Peak torque
■
α = Total angle.
■
t = Time
Batch sequence
The batch sequence menu shows live results and information from the active batch sequence.
Custom view
The custom view makes it possible to customize the last view on the controller from ToolsTalk MT. The
data selected for the custom view will only be displayed during the selected Pset. If no Pset is selected the
screen will be blank.
The screen can be configured to show one to four fields. For each field it is possible to display general or
step data.
The first field have a white background, the following have grey background. This is to give a focal
point and have no other intended meaning.
Measurement view
The measurement view shows the live result from the latest measurement:
■
Result header: Green + OK or Red + NOK
■
Verification program number and name: -- will show if no verification program linked.
■
Verification progress count: x/y to display current progress. if no verification size is set the controller
will display an infinity symbol.
■
Live reference torque.

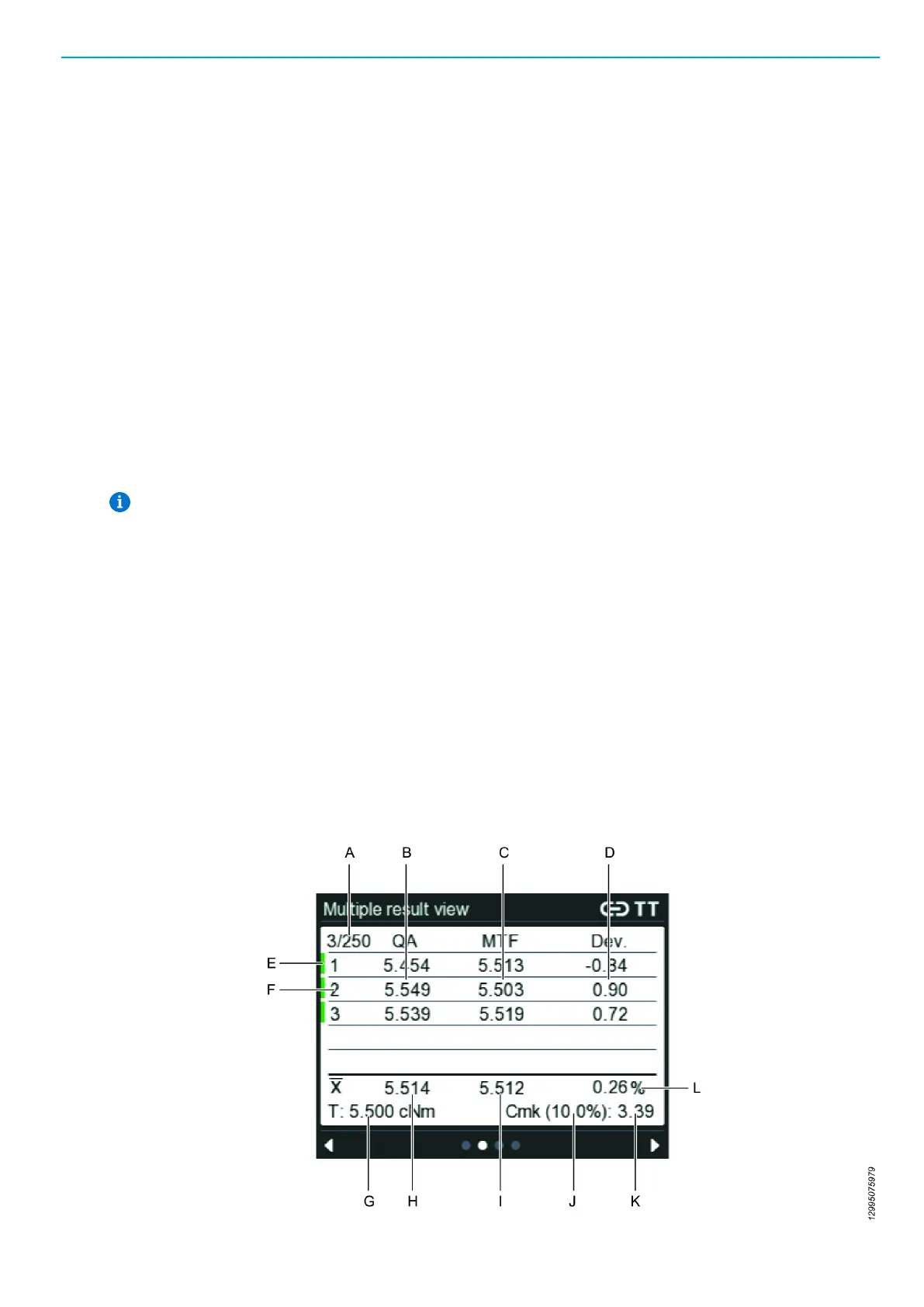

Multiple result view
The multiple result view is a summary of all the results in the verification.
