ATmega48P/88P/168P/328P

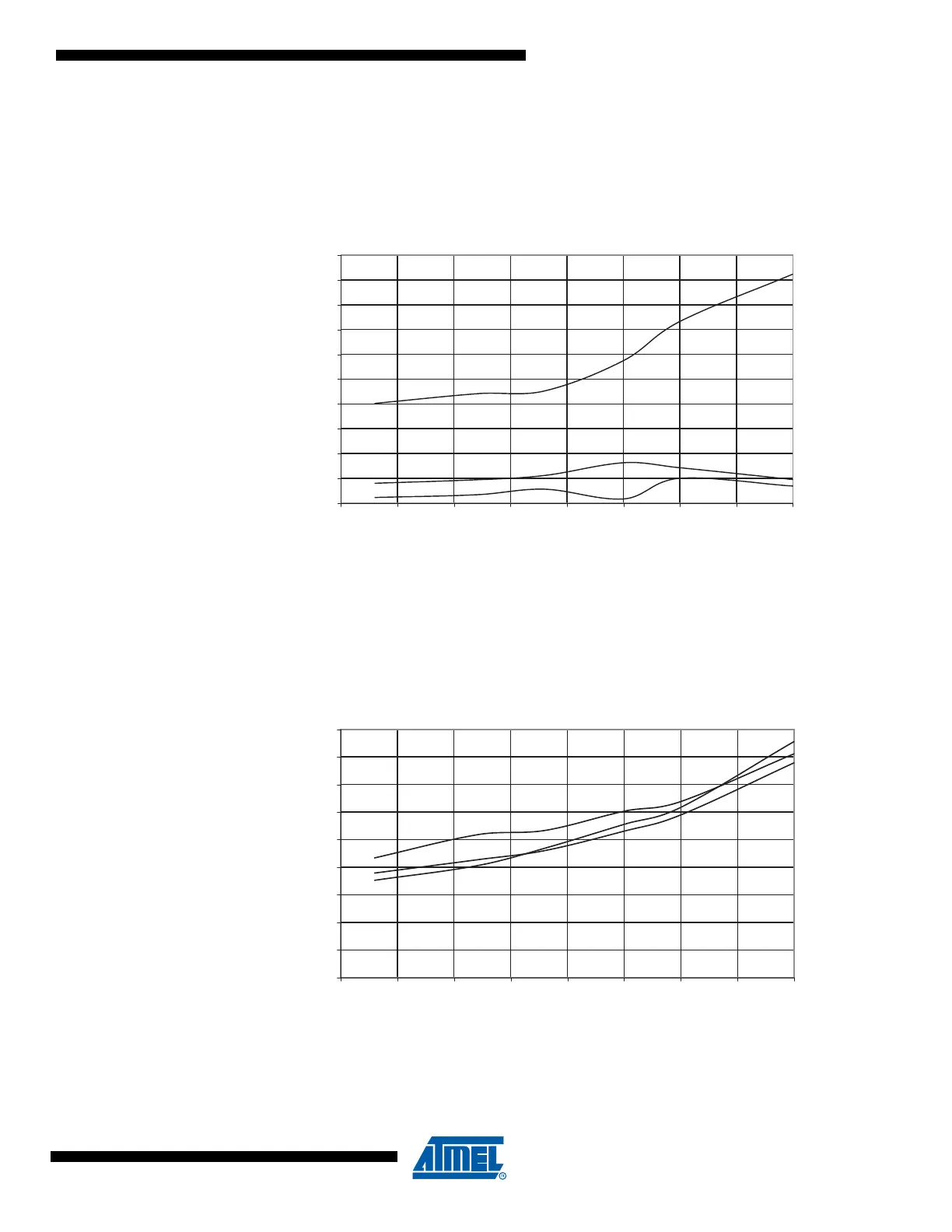

27.2.4 Power-down Supply Current
Figure 27-57. Power-Down Supply Current vs. V
CC
(Watchdog Timer Disabled).
Figure 27-58. Power-Down Supply Current vs. V
CC
(Watchdog Timer Enabled).
POWER-DOWN SUPPLY CURRENT vs. V
CC
WATCHDOG TIMER DISABLED
85 °C
25 °C
-40 °C
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(uA)
POWER-DOWN SUPPLY CURRENT vs. V
CC
WATCHDOG TIMER ENABLED
85 °C
25 °C
-40 °C
0
1
2
3
4
5
6
7
8
9
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(uA)
