Atmel ATmega48PV User Manual

360
8025I–AVR–02/09
ATmega48P/88P/168P/328P

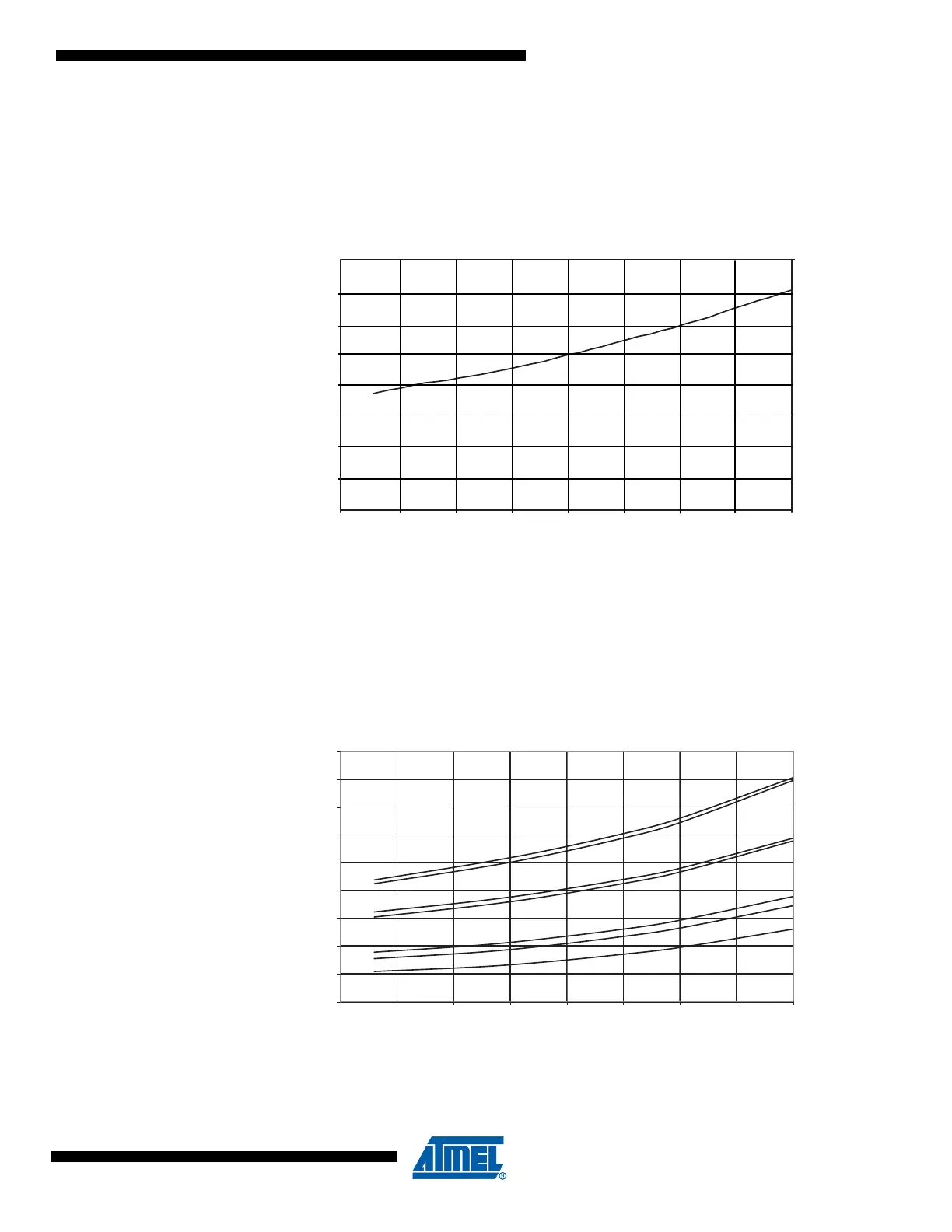

27.2.5 Power-save Supply Current
Figure 27-59. Power-Save Supply Current vs. V
CC
(Watchdog Timer Disabled and 32 kHz Crys-
tal Oscillator Running).
27.2.6 Standby Supply Current
Figure 27-60. Standby Supply Current vs. Vcc (Watchdog Timer Disabled).
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
V
CC
(V )
I
CC
(u A)
2.5
3.0 3.5
4.0 4.5
5.0
5.5
1.5
2.0
POWER-SAV E SUPPLY CURRENT vs. V
CC
WATCHDOG TIMER DISABLED and 32 kHz CRYSTAL OSCILLATOR RUNNIN G
25 °C
STANDBY SUPPLY CURRENT vs. V
CC
WATCHDOG TIMER DISABLED
6MHz_xtal
6MHz_res
4MHz_xtal
4MHz_res
450kHz_res
2MHz_xtal
2MHz_res
0
0.02
0.04
0.06
0.08
0.1
0.12
0.14
0.16
0.18
1.5 2 2.5 33.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(mA)
