ATN CX 12 User Manual

OPERATOR AND SAFETY MANUAL
1NO0031EN-08
CX 12 - CX 15
41

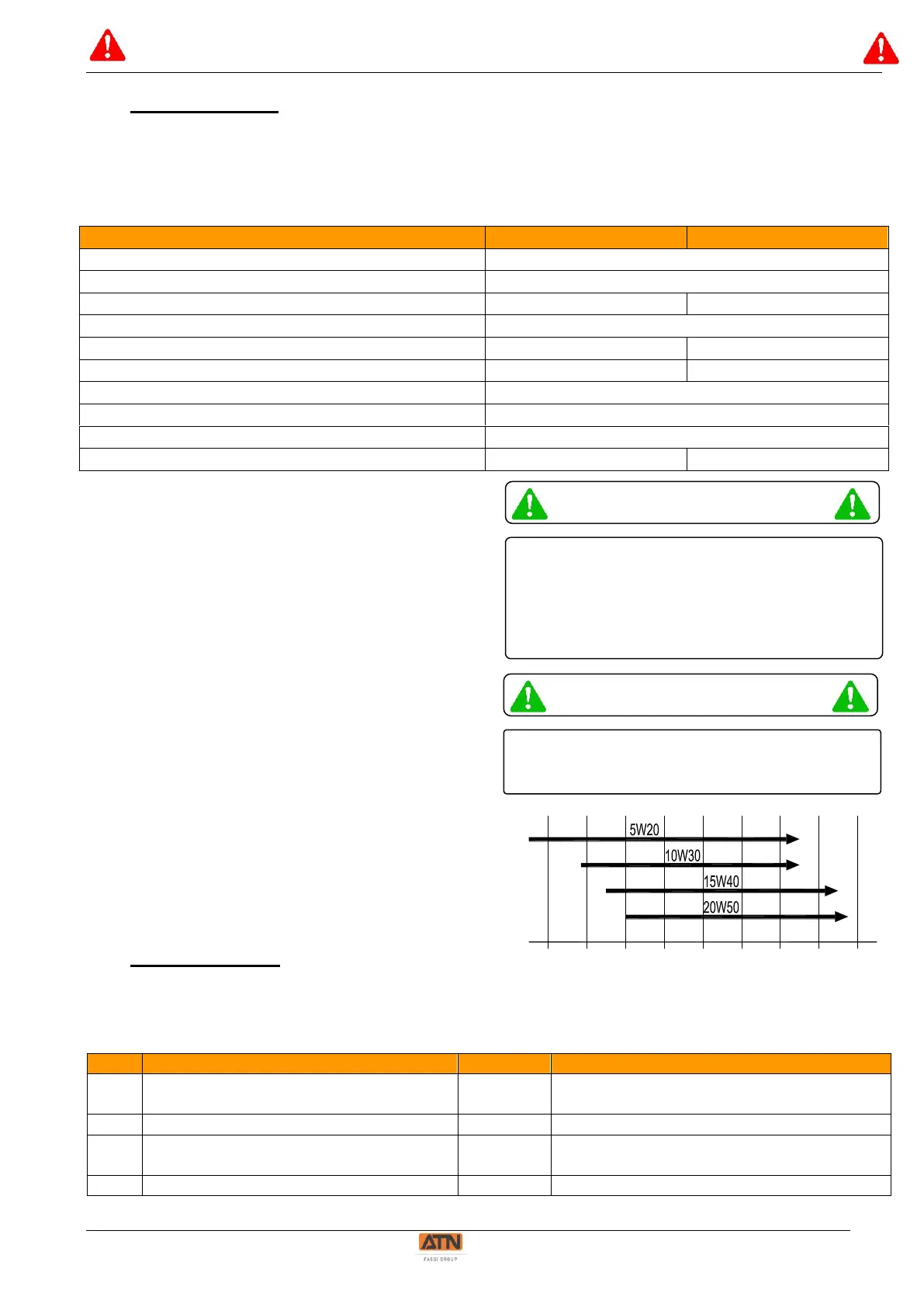

7.2. HEAT ENGINE
-NOTE-
Refer to the engine maintenance manual for more information.
7.2.1 SPECIFICIATIONS
KUBOTA
V1305-E2B
D1703-M-E3B
Type
4-cycle Diesel
Cooling
Liquid
Number of cylinders - Displacement
4 - 1,335 cm
3
3 - 1,647 cm
3
Low speed
1,400 rpm
Max. speed
3,100 rpm
2,800 rpm
Oil capacity
6 litres
7 litres
Starter
12 V - 1.4 kW
Alternator
12 V - 40 A
Battery
12 V - 100 Ah / 830 A
[Horse]power (gross) at max. rpm
23.4 kW (31.4 HP)
26.1 kW (35.4 HP)
7.2.2 FUEL
Ensure enough fuel is kept in the tank to prevent
the fuel system from losing its prime. Use only
diesel fuel. Refer to the engine maintenance
manual.
7.2.3 MOTOR OIL
At the factory, the machine is filled with a Multi-
Grade 15W40 lubricant. This type of lubricant
allows the engine to be started at temperatures
up to -15°C.
Depending on the machine's operating conditions,
it may be necessary to modify the type of lubricant
used (See chart opposite).
7.3. LUBRICATION
7.3.1 LUBRICANT SPECIFICATIONS -
CAPACITIES
CODE
DESCRIPTION
CAPACITY
NOTES
GR
Multi-purpose grease
-
Adhesive grease, water resistant and
withstands extreme pressures
MO
Engine oil (15W40)
9.5 l
See Section 7.2.3- Motor Oil
H46
Hydraulic Fluid H46
100 l
Fluid for hydraulic systems
Cinematic viscosity 46mm²/s @ 40°C
D
Fuel for diesel engines
110 l
-
CAUTION
USE ONLY DIESEL FUEL.
CARE SHOULD BE TAKEN PREVENT
WATER OR IMPURITIES GOING INTO
THE TANK DURING THE FILLING
OPERATION.
CAUTION
USE OF SYNTHETIC OIL IS NOT
RECOMMENDED.
TEMPERATURE AMBIANTE (°C)
-30 -20 -10 100 20 5030 40
AMBIENT TEMPERATURE(°C)
