This machine is a self-propelled aerial work platform designed to position personnel, along with
their necessary tools and materials to overhead work locations so that they can perform work
from the platform. For all information regarding special operations or working conditions, please
contact the manufacturer.
The machine features a main control station on the work platform which allows the operator to
control elevation, drive and outrigger positioning operations.
The machine has a ground control station that overrides the work platform control station to
elevate or lower the platform in an emergency situation should the operator on the platform be
unable to do so. The machine must not be operated from ground control station when personnel
are on the aerial work platform, except in an emergency.
Become aware of the safety instructions specified in Section 2 of this manual before operating
the machine.

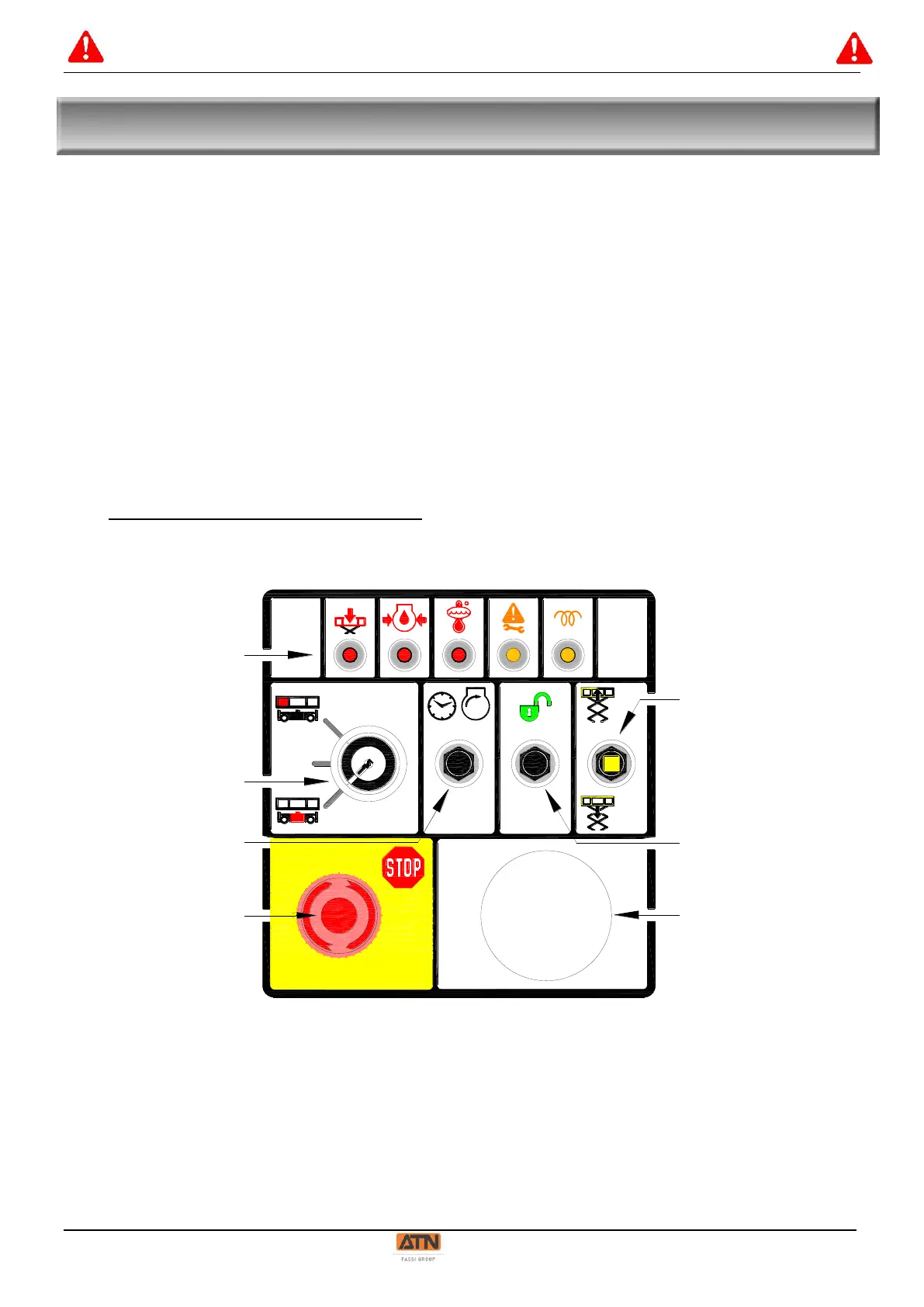

4.1. CONTROLS AND INDICATORS
4.1.1 GROUND CONTROL STATION
(2)
(5)
(1)
(6)
(4)
(7)
(3)
MAX
O
5 sec
START
1- Platform/Ground controls selector. On/Off switch
2- Emergency Stop Switch.
3- Engine pre-heating and start button.
4- Elevate / Lower Switch.
5- Indicator lights.
6- Hourmeter.
7- Enable button
