OPERATOR’S AND SAFETY MANUAL
1NO0039UK-00
Zebra 12
55
8.2.2 CONTROL STATUS (F2 – FROM THE HOME SCREEN)
By default, the platform control station's status screen is displayed.
The (F2) and (F3) buttons are used to switch from the platform control station status screen to
the ground control station screen.

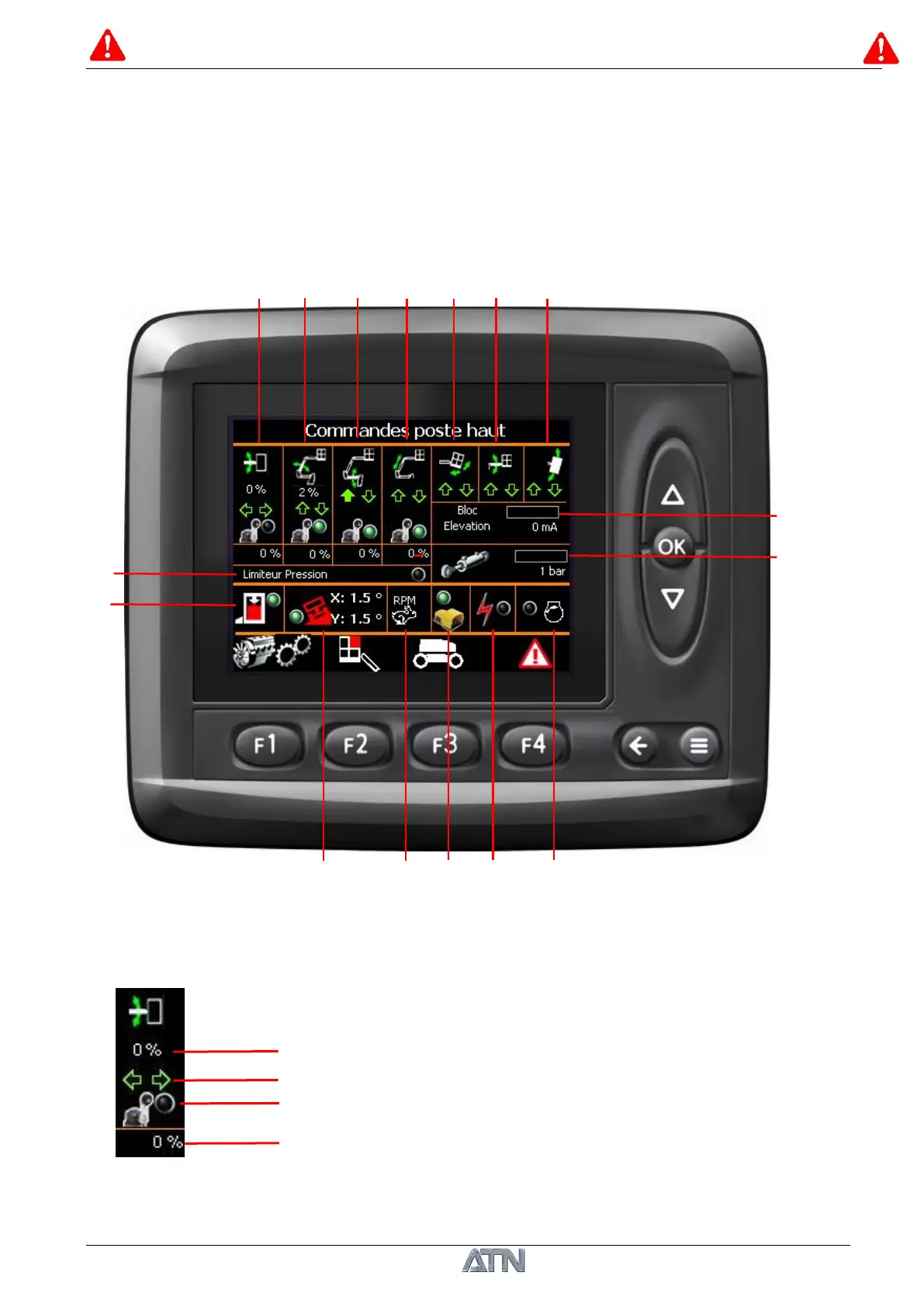

PLATFORM COMMAND STATUS (F2).
1- Entry parameters – Joystick Orientation.
(1)
(2)
(15)
(16)
(12)
(14)
(3)
(4)
(5)
(6)
(8)
(10)
(11)
(13)
(7)
(9)
The arrows light up when the corresponding movement is controlled.
Joystick setpoint value - Orientation movement
Status light – Structure position sensor (the light is on when the jib is
between the rear wheels).
Proportional valve control value
