OPERATOR’S AND SAFETY MANUAL
1NO0039UK-00
Zebra 12
56

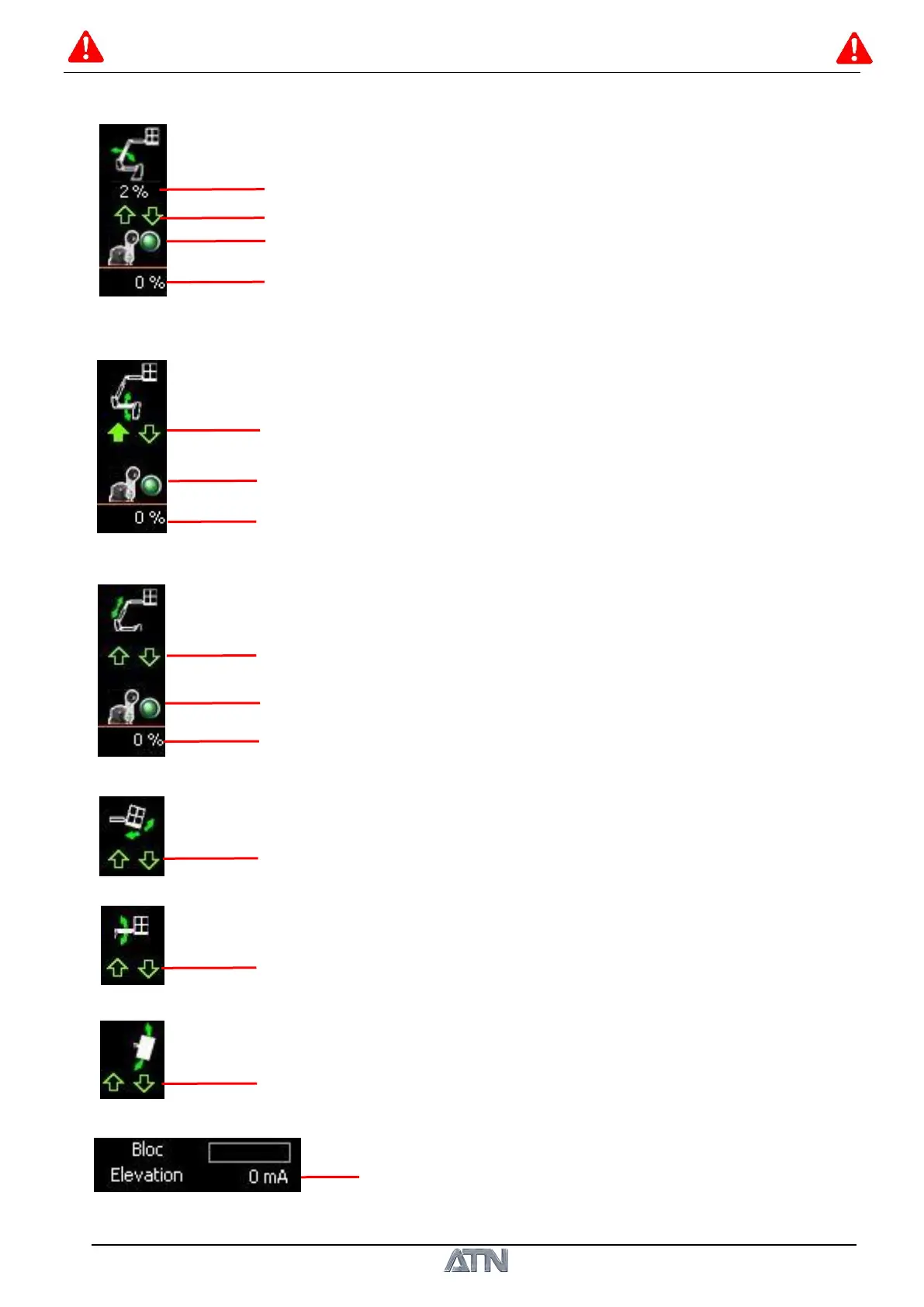

2- Entry parameters – Joystick Jib 2.
3- Entry parameters – Jib 1.
4- Entry parameters – Telescope.
5- Entry parameters – Levelling.
The arrows light up when the corresponding movement is controlled.
6- Entry parameters – Jib 3.
The arrows light up when the corresponding movement is controlled.
7- Entry parameters – Platform rotation.
The arrows light up when the corresponding movement is controlled
8- Proportional valve control value.
Proportional valve control value
The arrows light up when the corresponding movement is controlled.
Joystick setpoint value - Orientation movement
Status light – Structure position sensor (the light is on when the jib is
between the rear wheels).
The arrows light up when the corresponding movement is controlled.
Status light - Jib 1 position sensor (the light is on when the jib is lowered).
Proportional valve control value
The arrows light up when the corresponding movement is controlled.
Status light - Telescope position sensor (the light is on when the telescope
is retracted).
Proportional valve control value
Proportional valve control value.
(Movements levelling, Jib 3, Platform Rotation /
Generator (Option))
