Harmony™ Operating Manual
READ MECHANICAL METERS (Hardmeters)
1. To illuminate the mechanical meters (hardmeters),
turn the audit key 90° clockwise. This will also ac-
tivate the Audit Menu.
2. Read the mechanical meters.
3. When finished, release and remove the audit key.
Note:
See manual "Software / Basic Setup" for a detailed
metering description.
TOUCH SCREEN CALIBRATION
To calibrate the display's touch screen, follow these
steps.
1. Activate the Audit Menu (turn audit key) and sel-
ect the TOUCH SCREEN CALIBRATION folder tab.
or
Activate Service Menu and select "Service Menu /
Settings / Machine / Touch Screen Calibration".
2. Touch the START TOUCH SCREEN CALIBRATION
button and follow the on-screen instructions.
3. Touch the two yellow dots displayed on screen.
The controller uses the data immediately before
liftoff to register a calibration touch. Therefore,
you can touch the screen, move your finger to the
target, hold for a few seconds, and then lift off
your finger. This way results in a more accurate
calibration.
4. Touch the screen and check, if your fingers positi-
on matches the position of the red dot that will
appear.
5. If you are satisfied with the result, touch the AC-
CEPT button to continue. Otherwise touch the RE-
CALIBRATE button.
6. When touch calibration is finished, release and re-
move the audit key.
MACHINE HANDLING

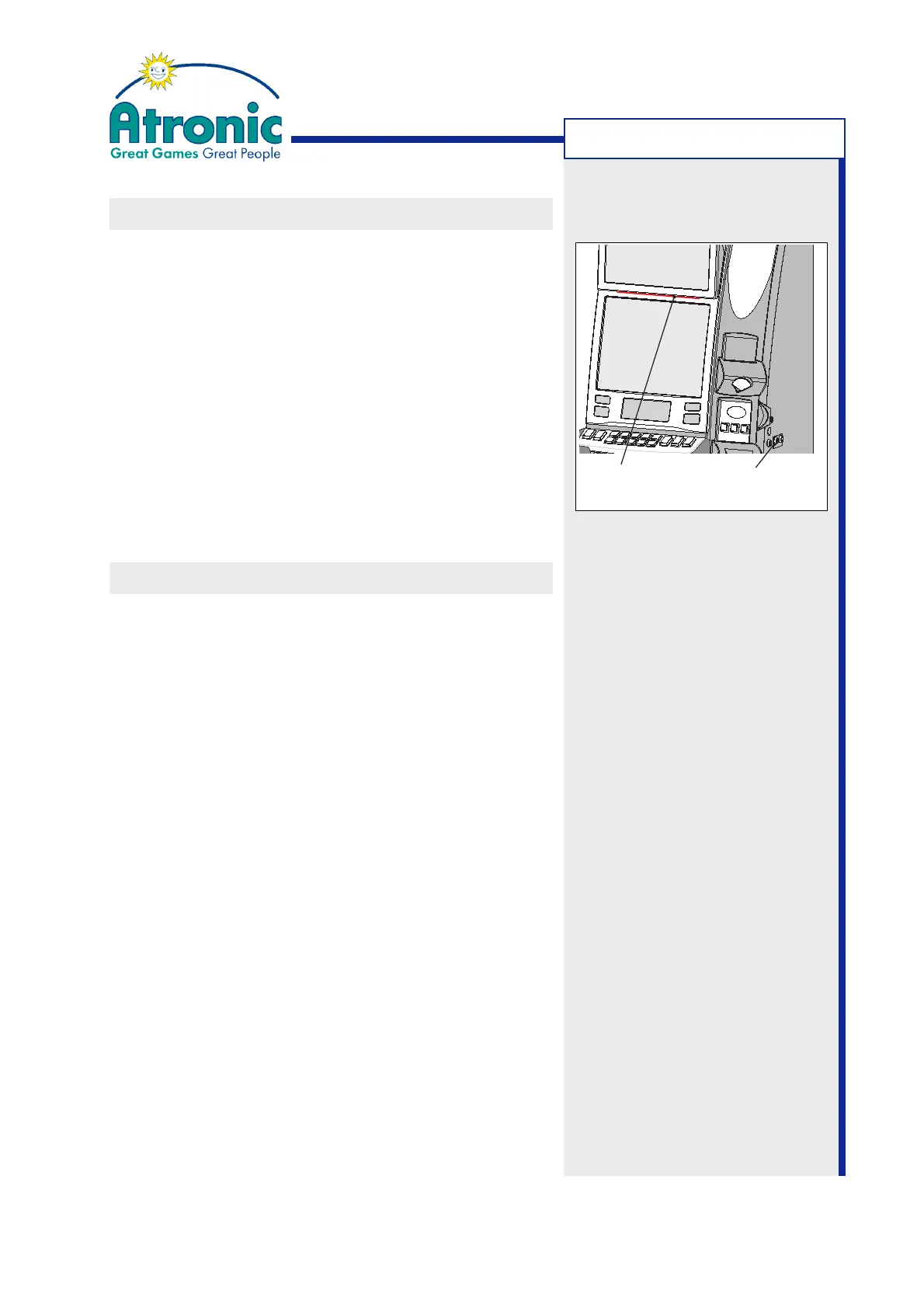

Audit Key
Switch
Mechanical
Meters
