The DIAGNOSTIC folder provides several in-machine
hardware tests. These tests are intended for regular
maintenance and trouble-shooting. Availability of some
tests depends on machine configuration (eg. A-Link
status, barcode voucher).

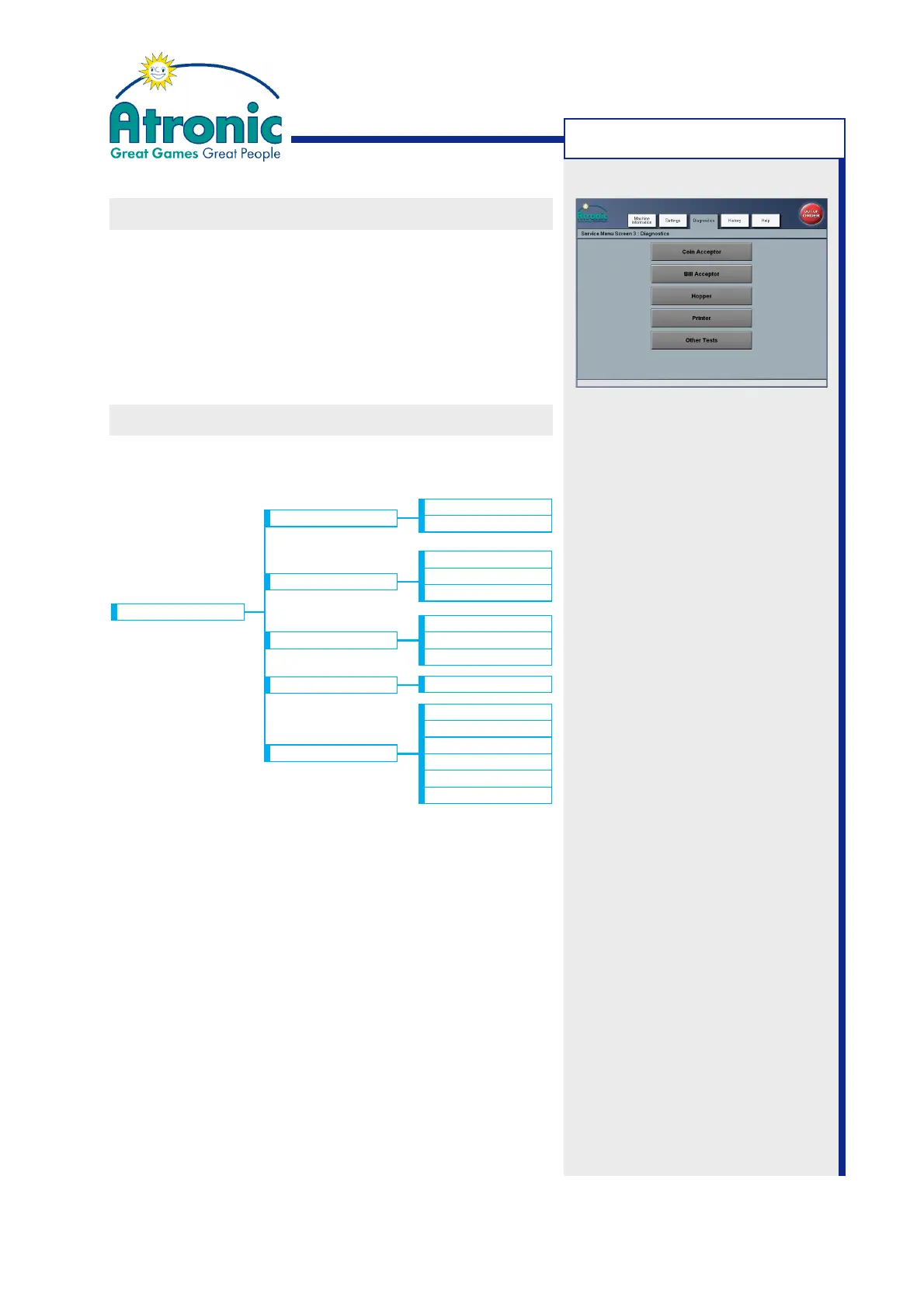

DIAGNOSTICS FOLDER FLOWCHART
Note:
See manual "Software / Basic
Setup" for a detailed
description.
SERVICE MENU
3. Diagnostics
3.1 Coin Acceptor
Coin Diverter Test
Optics Test
Bills Enabled
Validator Test with Stacking
Validator T. without Stacking
Pay out 1 coin
3.2 Bill Acceptor
3.3 Hopper
3.5 Other Tests
Toplight
Lamps
Switches
Buttons
ALink Status
Pay out x coins
Pay out all coins
3.4 Printer
Barcode Voucher
Game Authentification
