FMB10 User’s Manual Edition 06/2005
___________________________________________ Page 4 _____________________________________________
Audemat-Aztec SA – Audemat-Aztec INC
WEB: www.audemat-aztec.com - e-mail: contact@audemat-aztec.com

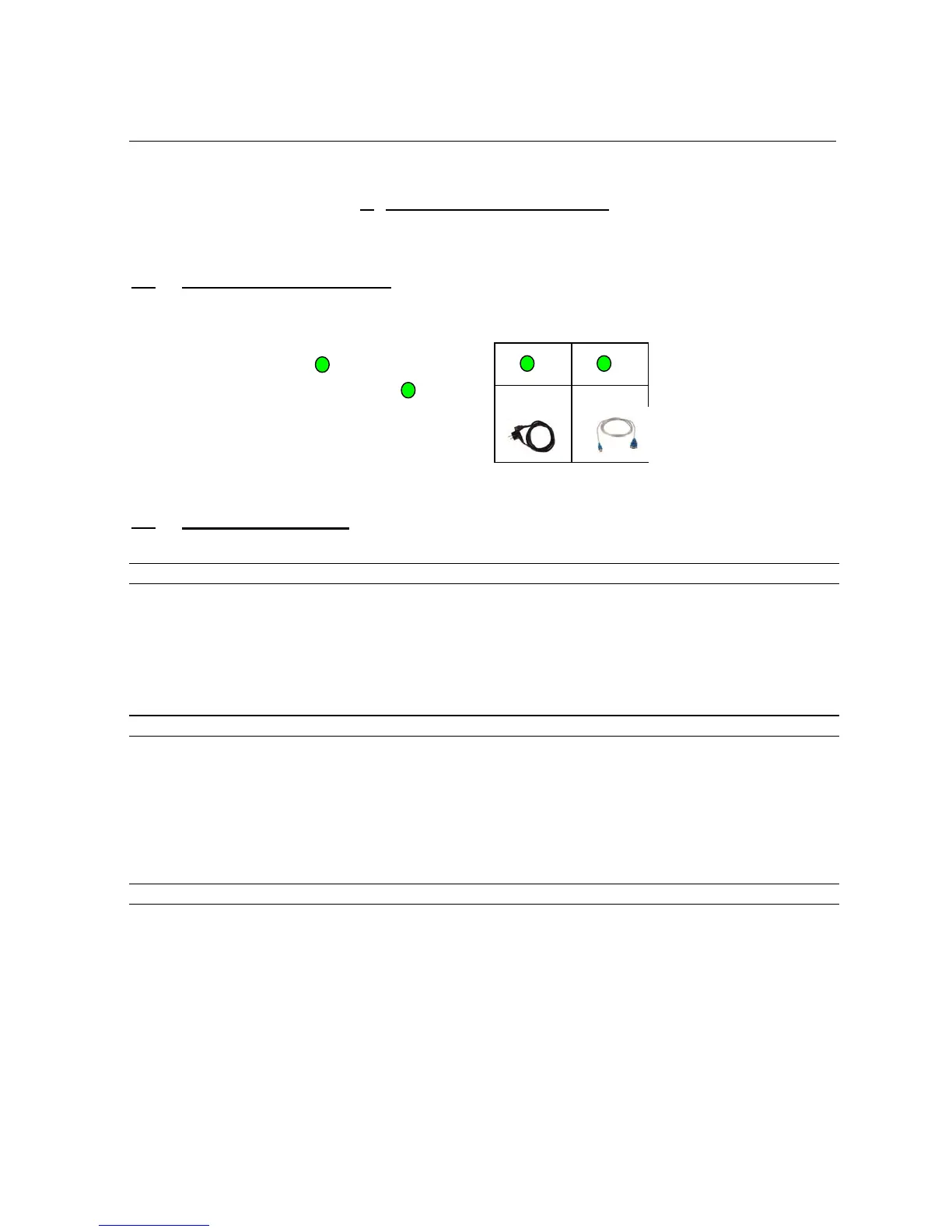

2. PRODUCT PRESENTATION
2.1. List of included accessories
Check that all elements are present in the box:
- Power supply cable
- Serial/USB cable and it’s mini-CD
- 1 CD-ROM (included in the leaflet)
- 1 satisfaction survey
2.2.
General specifications
RDS/RBDS signal
Sub-carrier 57khz (+- 3Hz)
Phase adjustment +- 180° in 6° steps
Output level -60dBu to 0dBu in 1dB steps or (depending on set up) 2,5 to 3199mVcc / 1mv
Spectral purity conform to CENELEC
Bandwidth +-2,4kHz (60dB)
SYNC/MPX connector input signal
Connector asymmetrical BNC
Max nominal input signal +12dBu
Peek input signal 18dBu allowed
Max input signal +22dBu
Pilot frequency 19000Hz +- 3Hz
Recommended 19000Hz +- 1Hz
Retransmission gain +-1dB DC-100kHz
RDS output signal
Connector asymmetrical BNC
Output impedance 100 ohms
Typical load impedance >500 ohms
<100 pF
THD <0,02% (f=10kHz)
THD <0,04% (f=57kHz)
