FMB10 User’s Manual Edition 06/2005
___________________________________________ Page 6 _____________________________________________
Audemat-Aztec SA – Audemat-Aztec INC
WEB: www.audemat-aztec.com - e-mail: contact@audemat-aztec.com

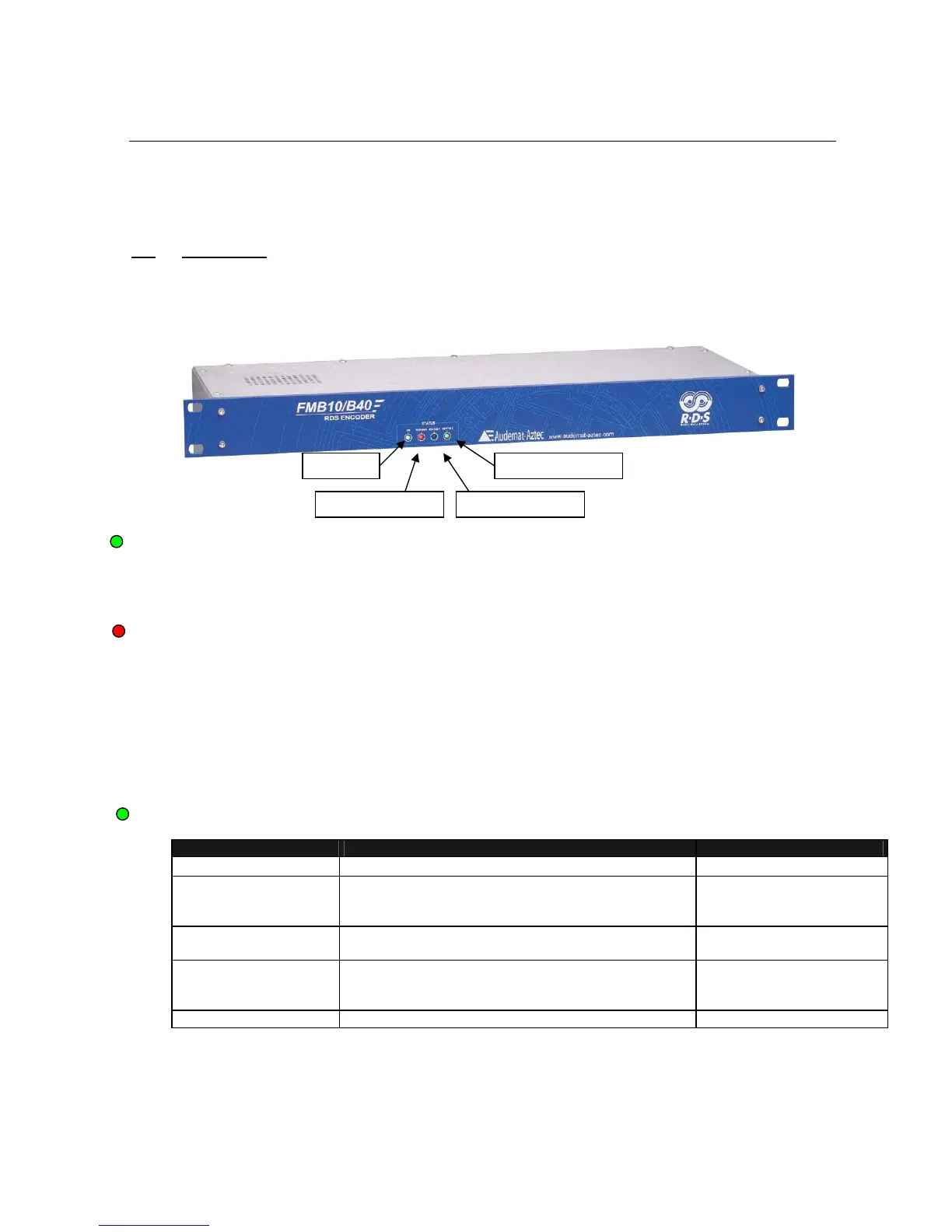

2.3.
Front panel
Green LED "POWER"
On
Encoder switched on
Off Encoder not lit. If the switch is on 1, check the fuse
"WARNING" :
Flashing: indicates that the BYPASS" function» is active
Continuously or almost continuously on: indicates that the encoder detects a warning.
Off: The configuration of the encoder is credible, the
encoder does not detect anything abnormal.
Other cases: (transient lighting) This led also lights on power up, whilst reading the
parameters in
non volatile memory : if the led remains lit, the encoder
is unable to initialise correctly.
GREEN LED "STATUS 1”:
LED "STATUS1 Synchronisation Mode EBU
Off
Encoder synchronised with the internal clock not selected
1 flash/second
19 kHz synchronisation signal detected and
synchronisation possible if SYNCHRO = EXT or
SYNCHRO = AUTO
not selected
several flashes /
second
Synchronisation state not visible. Selected but not yet active
1 extinction flash /
second
19 kHz synchronisation signal detected and
synchronisation possible if SYNCHRO = EXT or
SYNCHRO = AUTO
selected and active
On
Encoder synchronised with internal clock selected and active
LED ON
LED WARNING LED STATUS1
LED STATUS2
