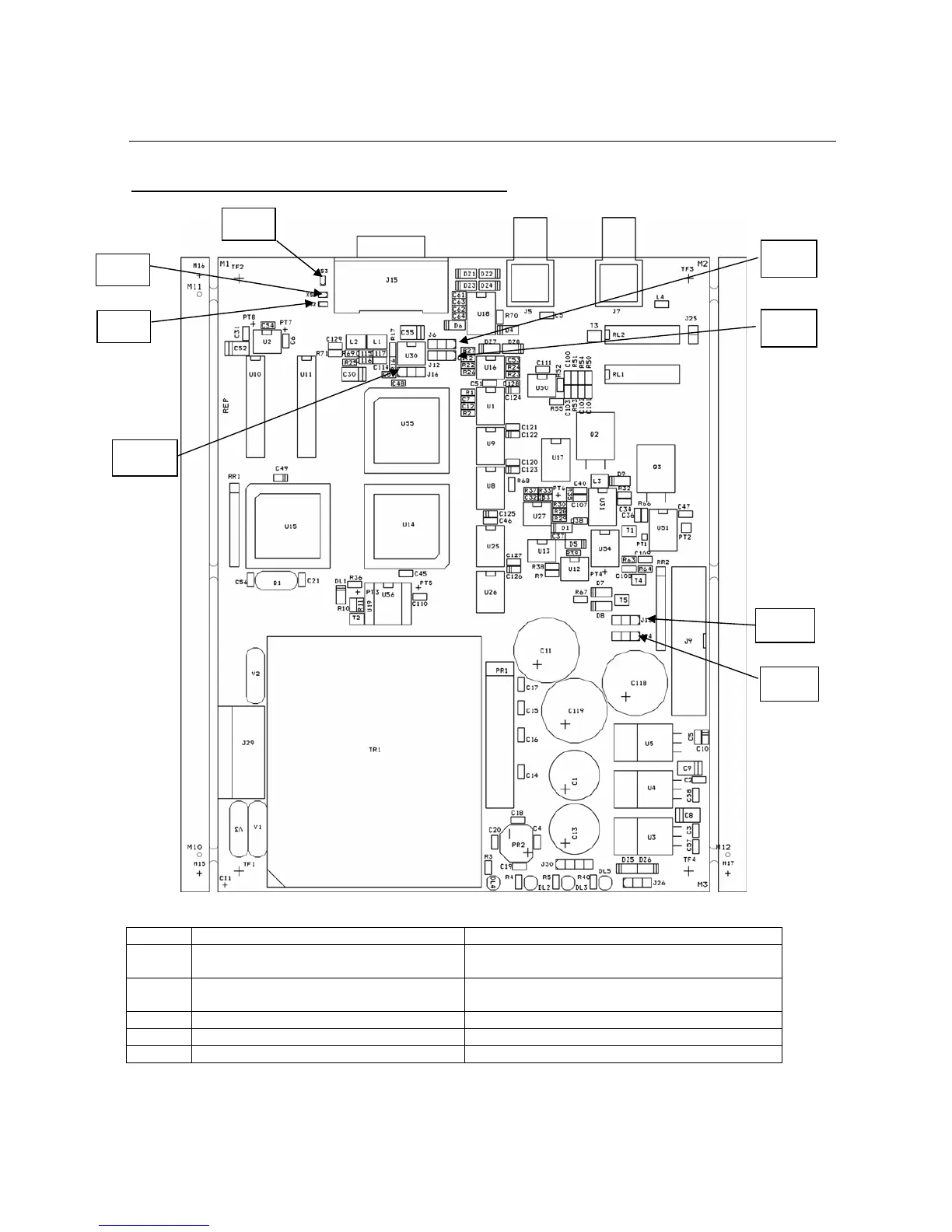

2.6 FMB10 Board and configuration of the jumpers
LOOP THROUGH SIDE CHAIN
Jumper between 1 and 2 Jumper between 2 and 3
J1 FMB10 OFF => retransmission of MPX
IN signal to MPX OUT
FMB10 OFF => no retransmission of MPX IN
signal to MPX OUT
J2 FMB10 ON => retransmission of MPX IN
signal to MPX OUT
FMB10 ON => no retransmission of MPX IN
signal to MPX OUT
J3 MPX OUT = RDS MPX OUT = MPX IN + RDS
J4 Operation as FMB40 Operation as FMB10
J5 Operation as FMB40 Operation as FMB10
J1
J2
XS1
XS2
XS3
2
J3
J4
J5
