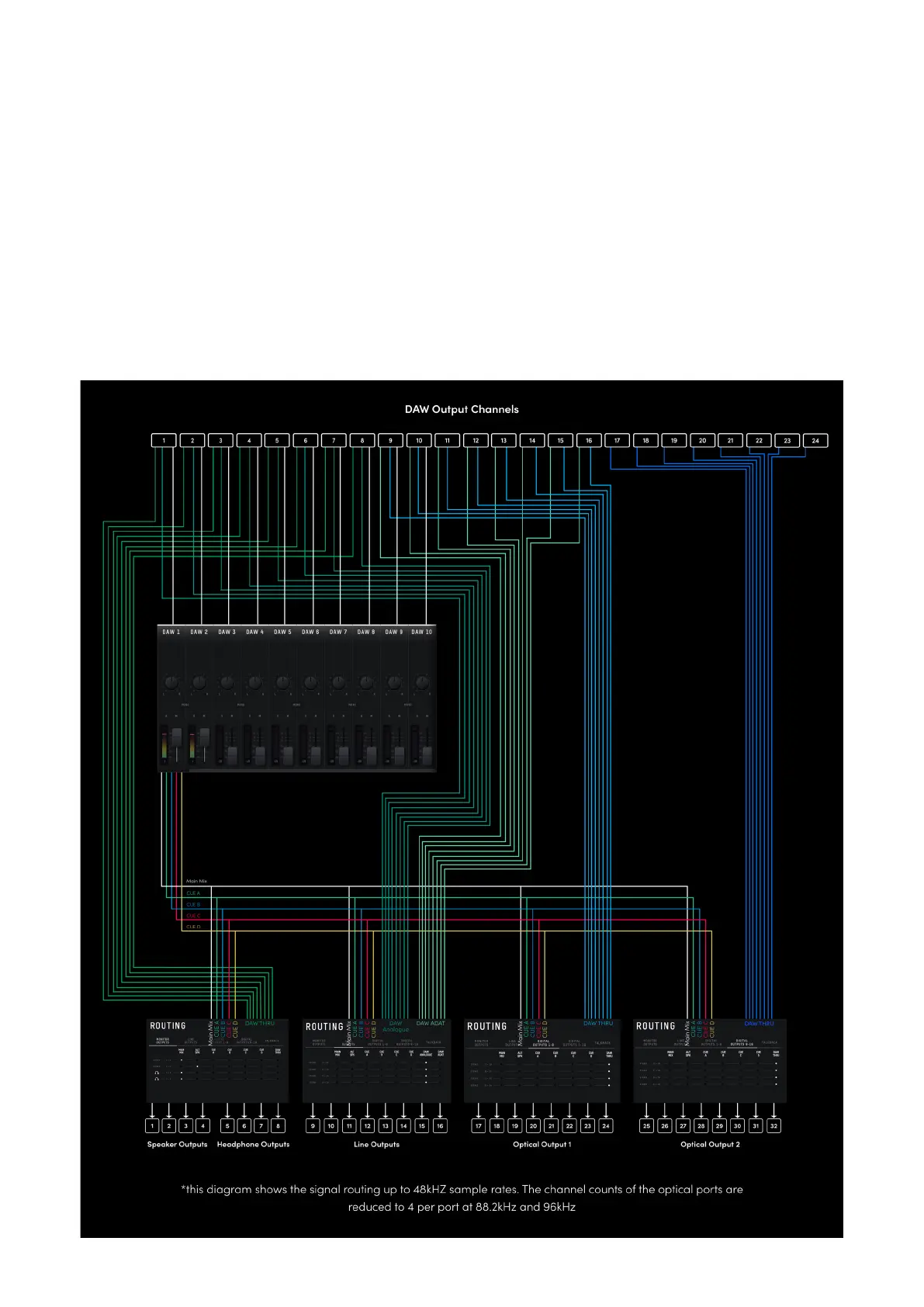

Output Routing Signal Flow Diagram
The Diagram below shows how the iD48’s output channels in the DAW are routed to the
Physical outputs via the Software Mixer and the Routing Matrix
The Routing Matrix allows you to choose which source is routed to a particular output, either
one of the Mixes from the Software Mixer, or via a direct send using the DAW THRU, DAW
Analogue and DAW Digital functions
