Page 18

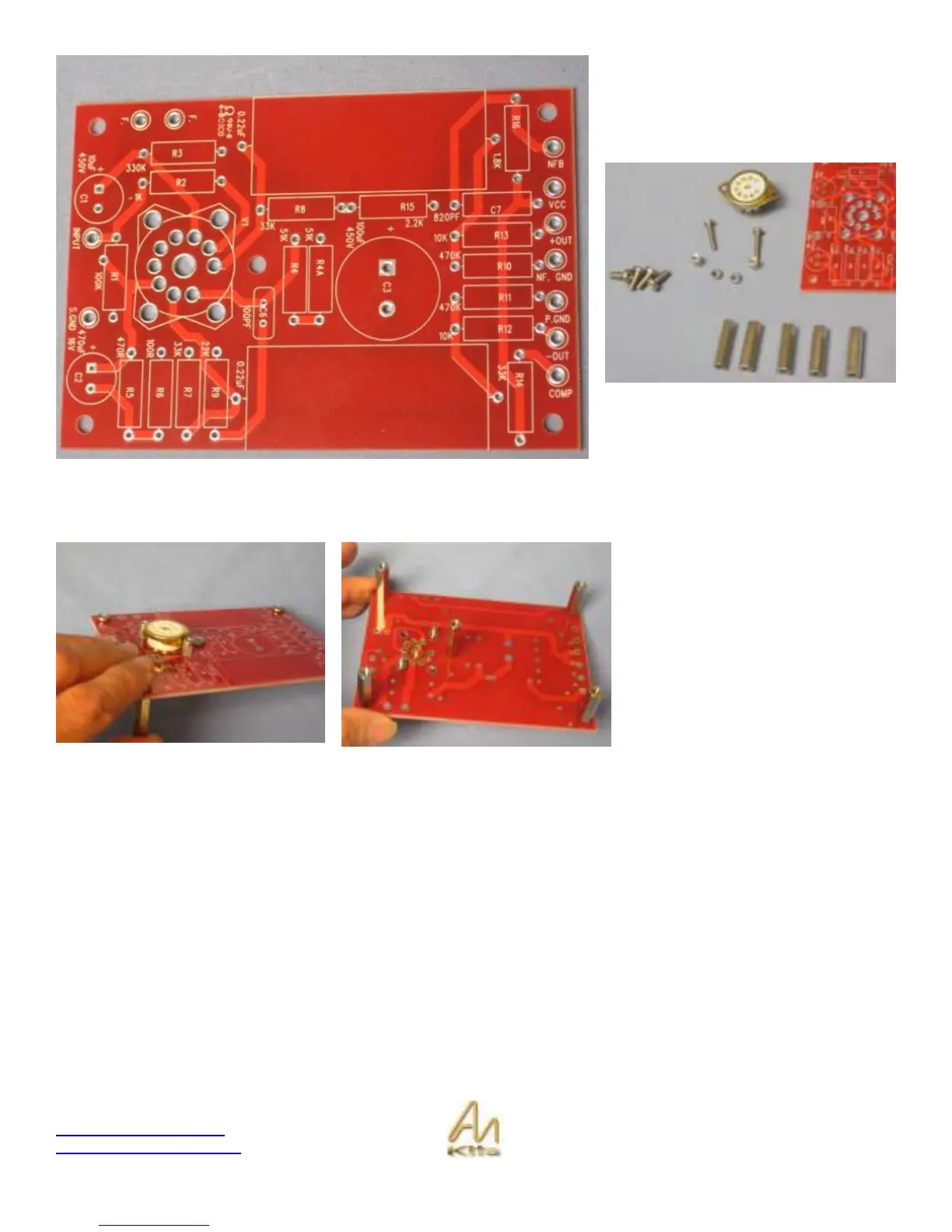

Here is a reference picture of the
unpopulated board.
To begin construction you will need the
following hardware parts:
Installing the Spacers and Valve Base
Install the 5 spacers and secure them
into position.
Using the M3 16mm screws, spacers
and M3 nuts, you can secure the valve
base into position on the board.
Then solder the pins of the valve base
on the underside of the board so that
they are connected to the PCB.
