Section 2: First Steps
In this beginning section we will start by installing the 4 feet then we will install the Mains transformer and wire up the IEC
section.
Installing the feet
Our first task is to install the 4 rubber feet into the holes in the 4 corners of the chassis using the provided hardware in the
“Feet” Bag (found in the big Hardware bag). Use the M4 screw along with the big washer on the outside of the foot and
then a M4 nut and M4 black serrated washer against the chassis on the inside of the chassis!

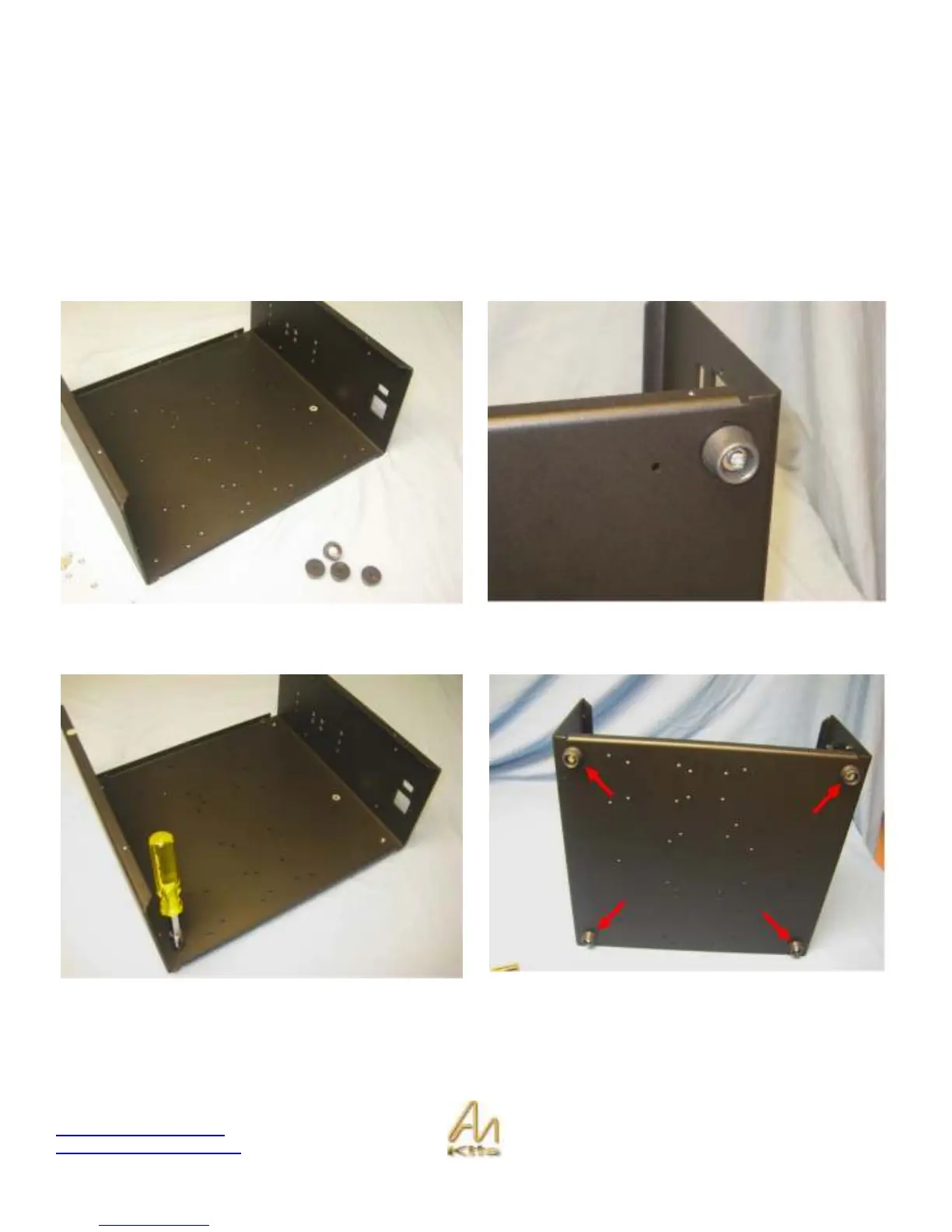

Might be handy to use an M4 nut driver or something similar to tighten the nuts for the feet on the inside of the chassis as
shown below.
