Section 10: HT and GND Connections to EL34 Board
Before continuing, it would be a good idea to pull out the
General Wiring Diagram from the Appndix.
Take two lengths of RED 18 gauge 600v wire and strip the
ends.
Solder these to the Power Supply Board on pads VDD_2A
& VDD_2B.
There is one red wire for each channel – Now connect the
RED wire into the tag strip position 4.

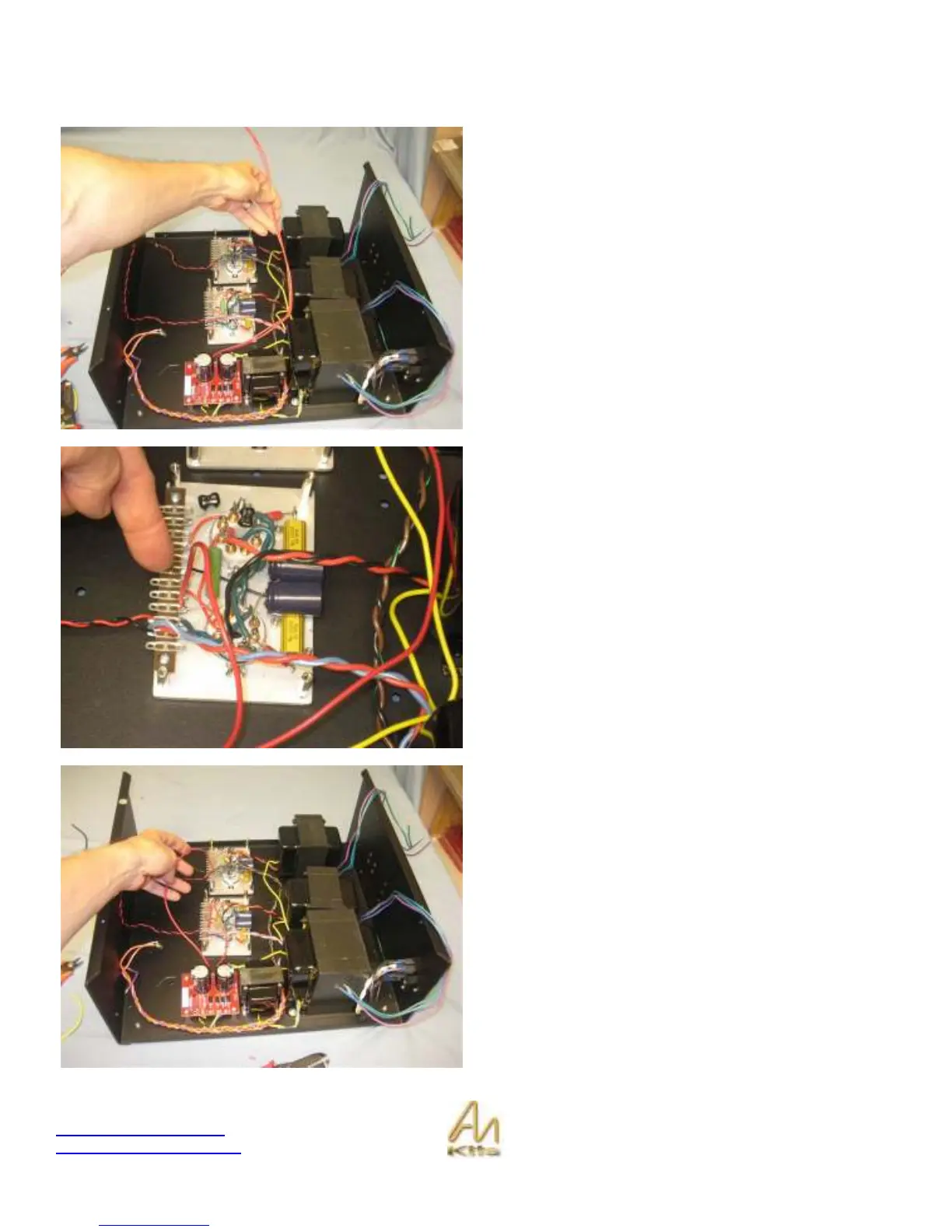

As you can see in the picture, I have wired into the same
side as the resistor (470R) this is because we are later
going to use the other hole on position 4 tag strip to
connect to the ECF80 board.
Repeat with the other channel and the other red wire –
leave a little slack in the wires as we will be eventually
turning over the boards.
