Section 11: Speaker Post Connections

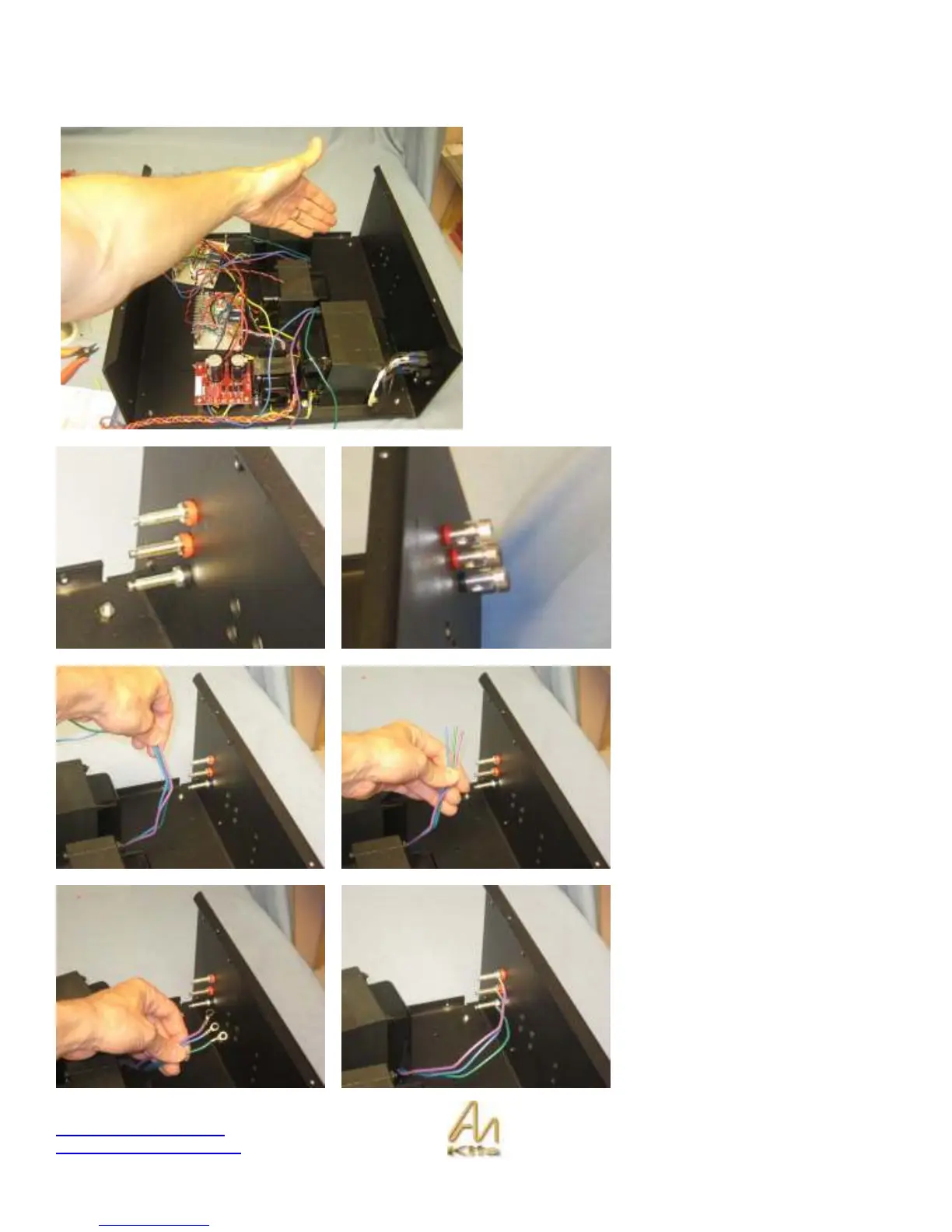

Move the output transformers out of the way a little so we
can install speaker posts in the rear of the chassis.
We are going to install the 3 speaker
posts that go in the rear of the chassis.
Locate the 3 holes that are in a row.
Position the 2 red speaker posts on
the top 2 holes and the black speaker
post on the bottom hole – the speaker
posts are 8 (red), 4 (red) & 0 (Black).
Now take the three leads from the
output transformer (green, blue and
purple) and trim them so that they will
connect easily to the speaker posts –
remember the transformer has been
“moved” out of position so that we can
work back here.
Strip the ends and tin the wire leads.
Take the ground lugs provided and
place on the ends of the tinned wire.
Solder the lugs in place (place your
soldering iron on the side closest to
the RING). You can use plenty of
solder and make sure there is a nice
smooth flow.
Position the rings on to the speaker
post – GROUND on the black, blue on
the middle and purple on the top.
