Page 33
Section 9: EL34 Board To Output Transformer Wiring
In this section we have to hook up
the red and black wires from the
Output transformer primary’ into
the EL34 Hardwired section.

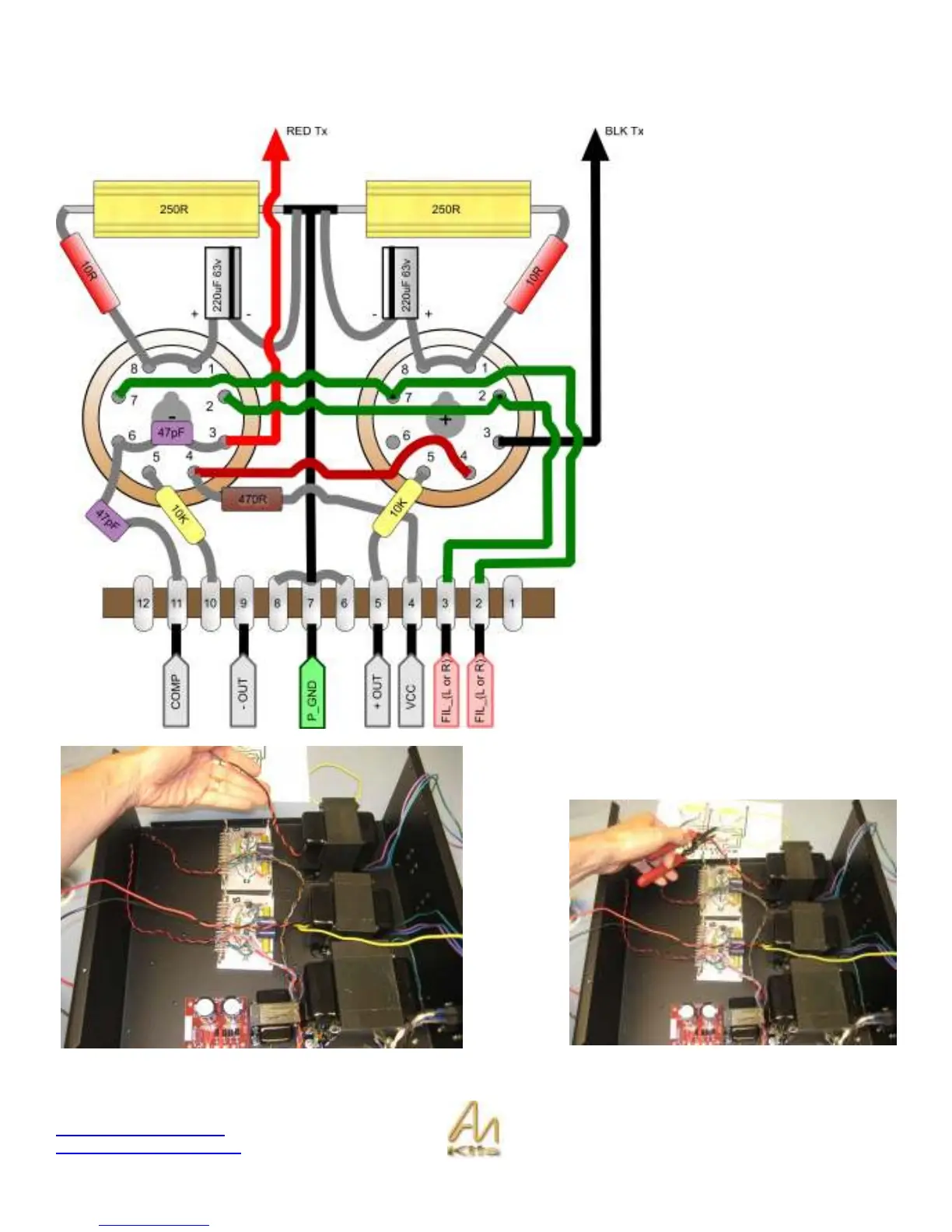

On the diagram opposite, look at
the connections on pin 3 of each
valve.
Start by taking the red and black wires from the output
transformer and twisting them. Then cut to the required
length.
