Page 22
Section 6: EL34 Hardwired Section
In this section we will be building
the hardwired section on the
aluminum plates where the
EL34’s reside – It’s a challenging
little section but also fun and
rewarding.

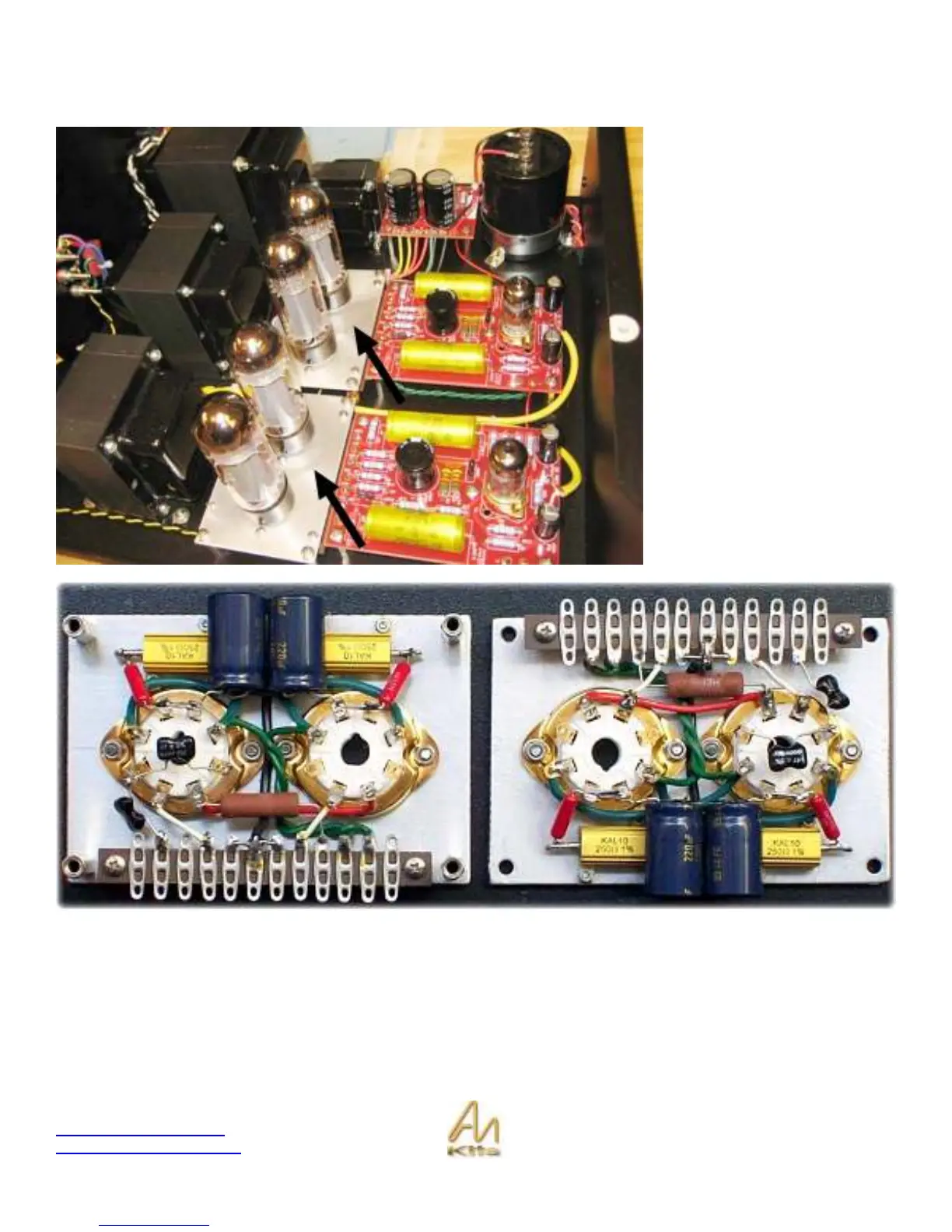

Here is what It will look like from
the topside.
The picture below shows what the
boards will be like from underside:
NOTE: Since these pictures were taken, we have relocated 2x 10K resistors from the Driver Board to here. Therefore the
White wires that can be seen above are now replaced with these relocated resistors.
