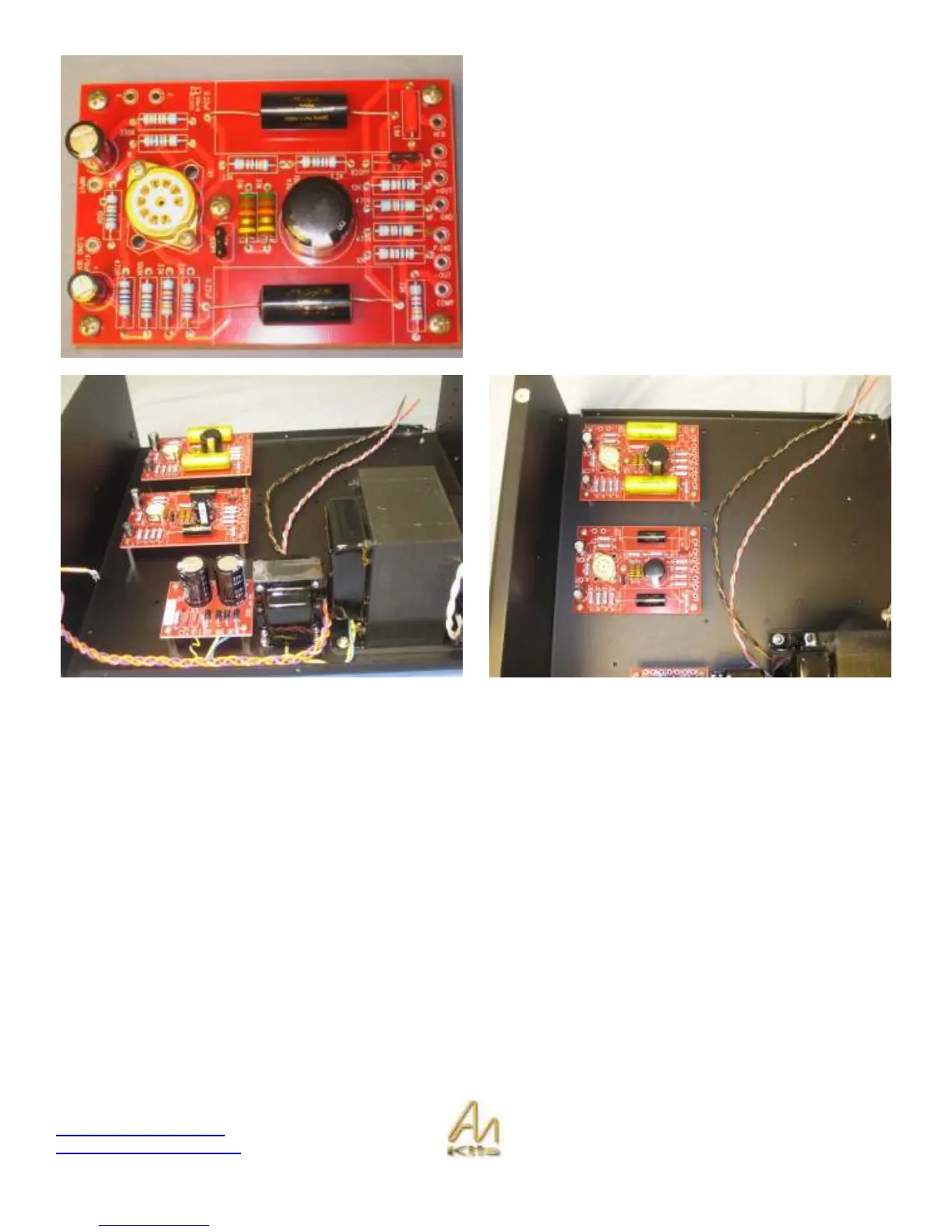

Finally, insert the 470uF 16v electrolytic capacitor into its
position (follow the same rules of Negative Stripe position).
That Basically completes the ECF80 driver board - You will
need to build another one now for the other channel! See
below how they will be positioned in the chassis.
Well done to get to this point – as you can see the amplifier is coming along nicely!
