Page 11
The IEC section is now complete.

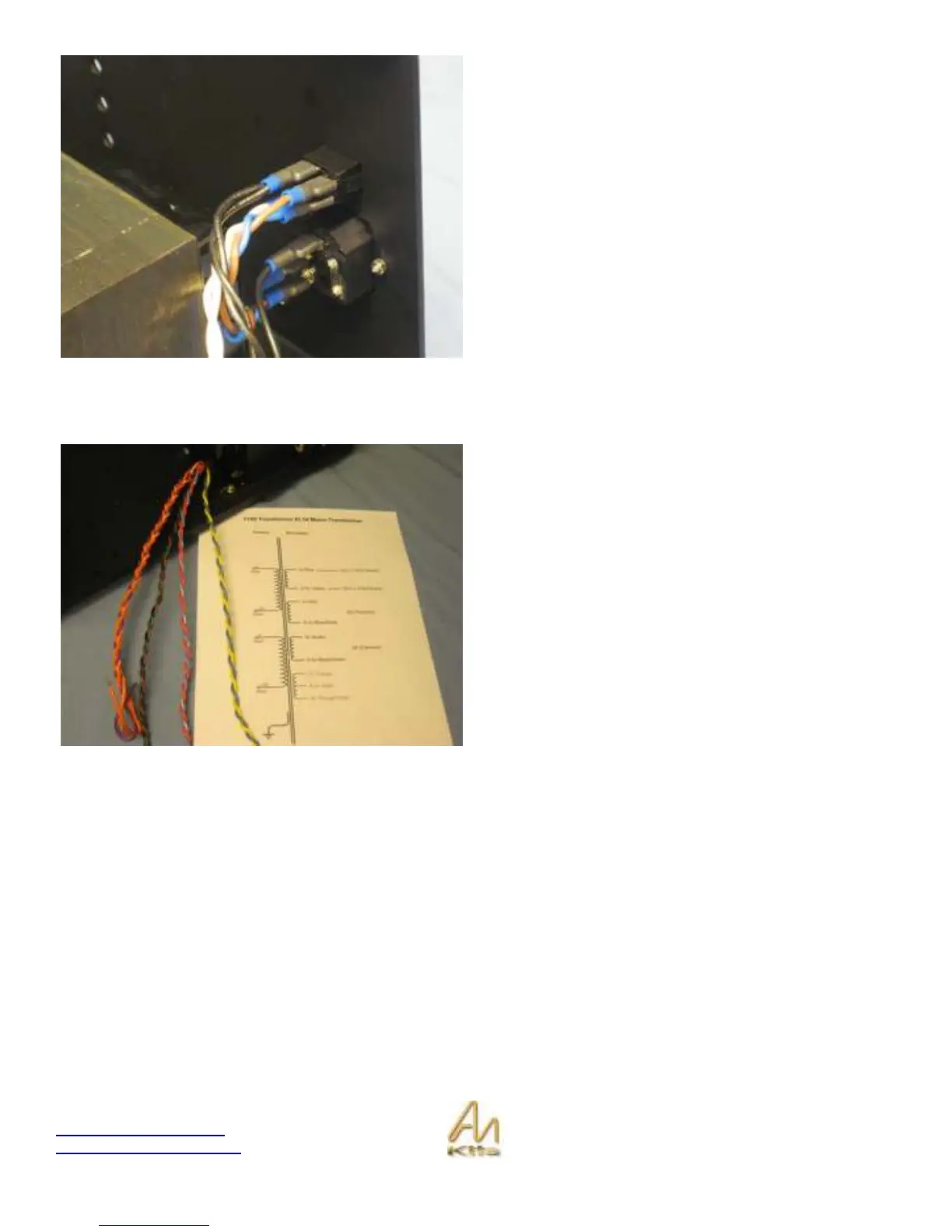

The picture opposite shows the completed wiring for 120v
operation.
* Applies to 120v operation only.
Preparing the Secondary leads
Pull out your insert sheet showing the Mains transformer
windings for the secondary.
The first step is to twist the wires according to the windings:
• Blue & Yellow
• Red & Blue/White
• Brown & Black/Green
• Orange & Violet & Orange/White (Braid these wires
– you may have to ask your wife!)
We will be using these twisted wires later – lets move on to
the Power Supply Board.
