Page 10

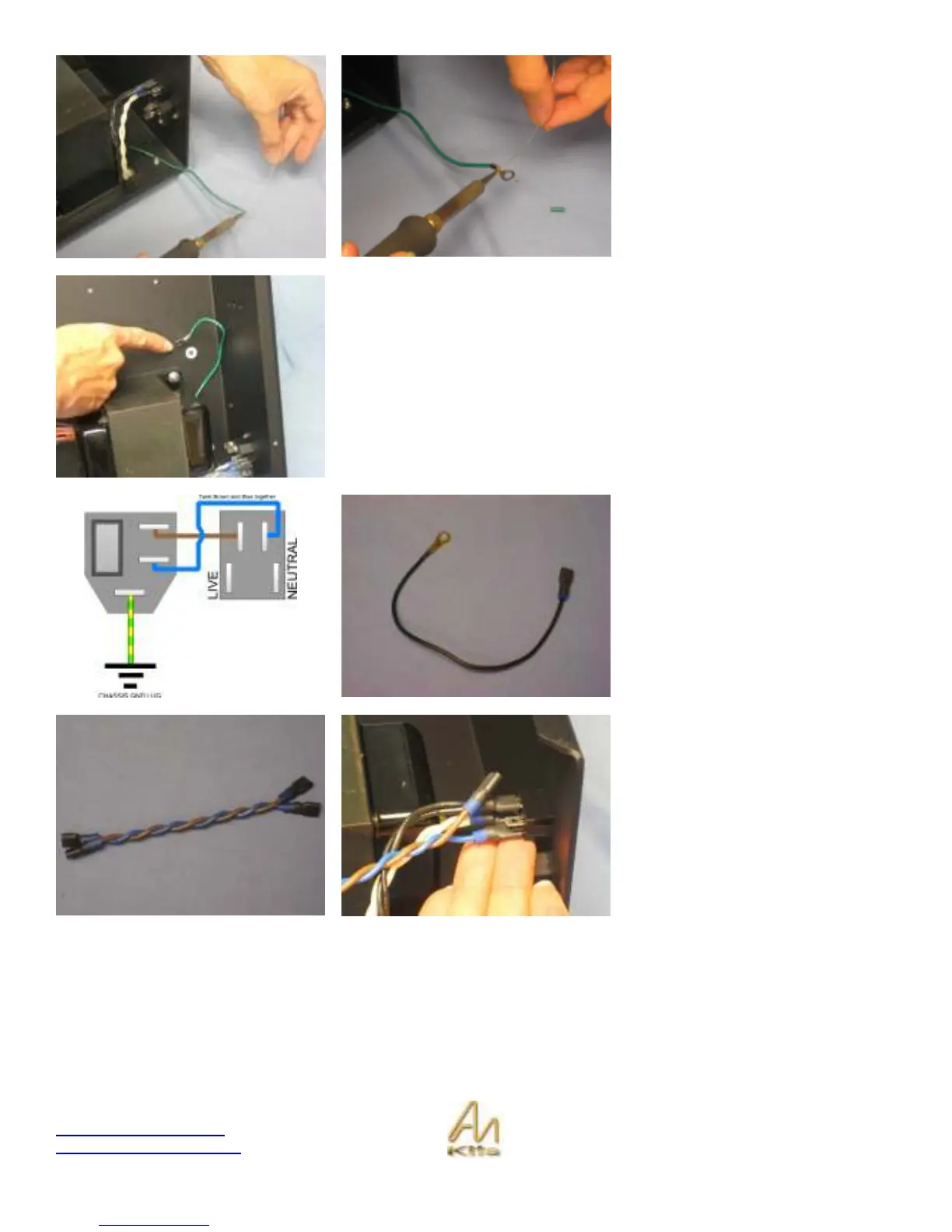

Now let’s deal with the green wire
coming out of the Mains Primary. This
is the ground lead that we will be
attaching to chassis ground.
Strip the wire and tin it and then solder
the ground lug to it.
This is where you will attach the earth wire to. You will secure it using an M4
16mm pan screw from under the chassis and use a nut to secure the ground lug
from the Mains transformer.
Note that the mains input earth will also be joining it shortly.
In order to complete the IEC wiring,
you will be using 2 pre-terminated
cables.
The first one is the earth cable shown
here. This connects to the IEC mains
socket’s earth lug, which is in turn
connected to the chassis earth lug
(discussed previously).
Now use the twisted pair cable (shown
opposite) to complete the wiring
between the mains input socket and
the mains switch - refer to the wiring
diagram shown previously.
You will have to apply some pressure
to position the crimps correctly onto
the lugs.
