Page 23
Parts List
Quantity Value Description
2 250R 9W
2 10R
1 470R 6W
Resistors
2 10K 1W (may not be shown in some pictures in this section)
2 47pF Silver Mica Capacitors
2 220uF 100v ELECTROL

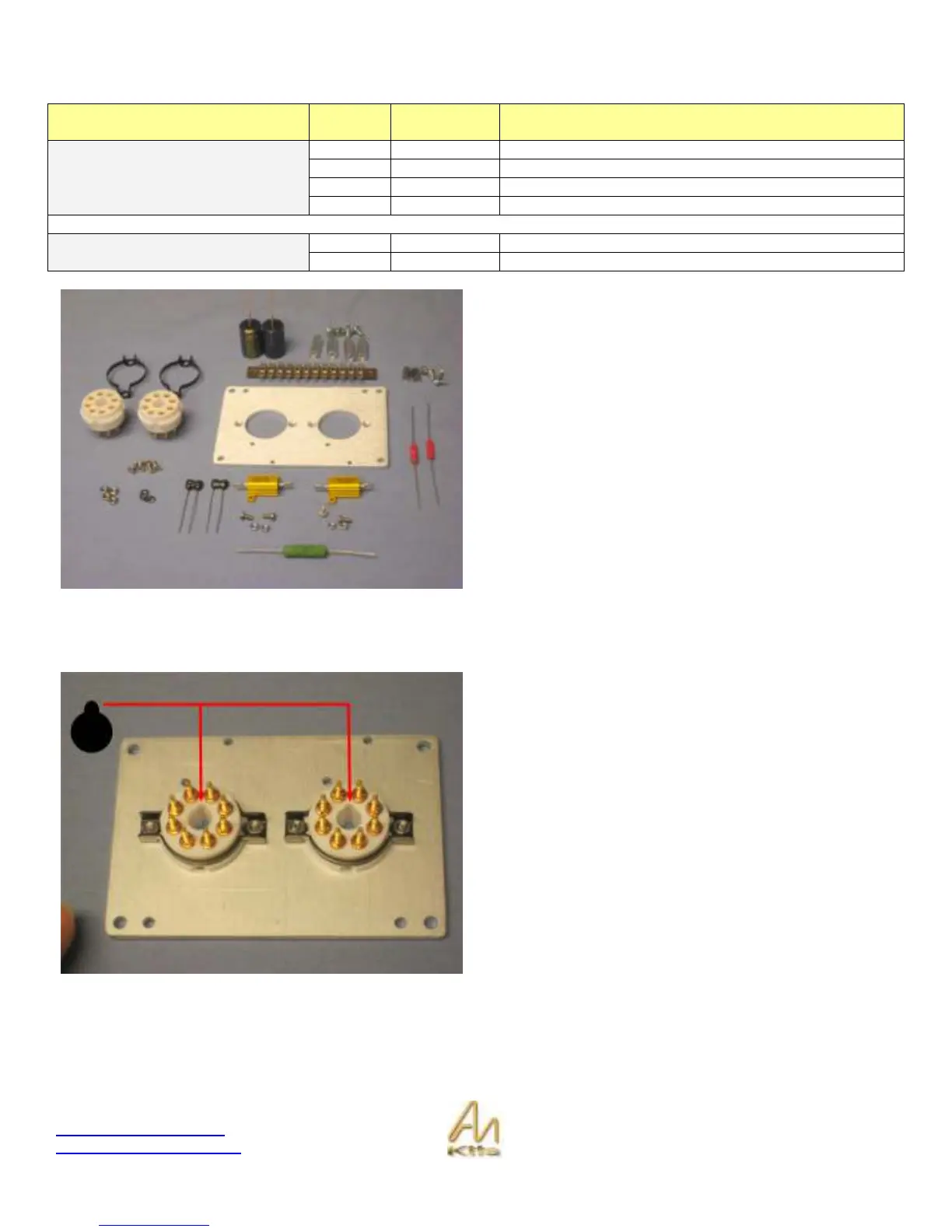

Here is a picture of the parts that we will be using in this
section.
IMPORTANT: The top of the board has the countersunk
holes on the valve bases. Wiring will be done from the
underside.
Since this picture was taken, 2x 10K resistors have also
added. The instructions in this section have been amended
accordingly. However, some of the pictures shown in this
section may not take these newly introduced resistors -
please bear this in mind while building.
Assembly
Working on the underside of the board you will want to
secure the valve bases into position.
NOTE: The notch on the valve base must be pointing “up”
to the top of the board as in the picture opposite where the
6 holes are located on the aluminum plate.
