Page 24

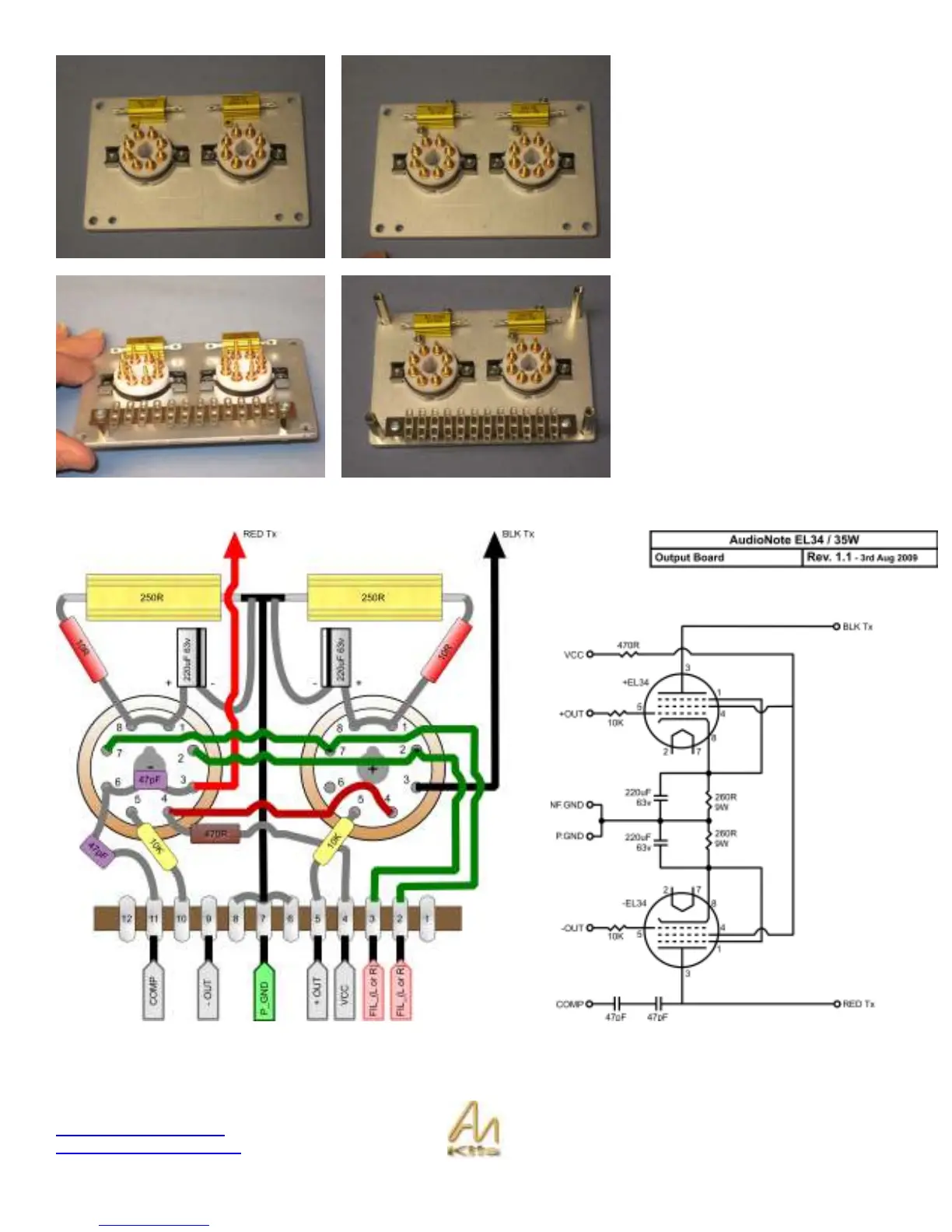

Position the 2x 250 ohm resistors on
the board over the holes as shown.
Use the supplied hardware to secure
the resistors into position.
Note that the nuts will be on the
underside of the board.
Install the supplied 'Tag Strip' into
position on the underside of the board.
Use the pan screws and the hex
spacers to secure the tag strip.
The last step before starting the wiring
is to install the spacers at the corners.
Please refer to the following diagrams that can be found in the Appendix while working in the remainder of this section:
