Page 8

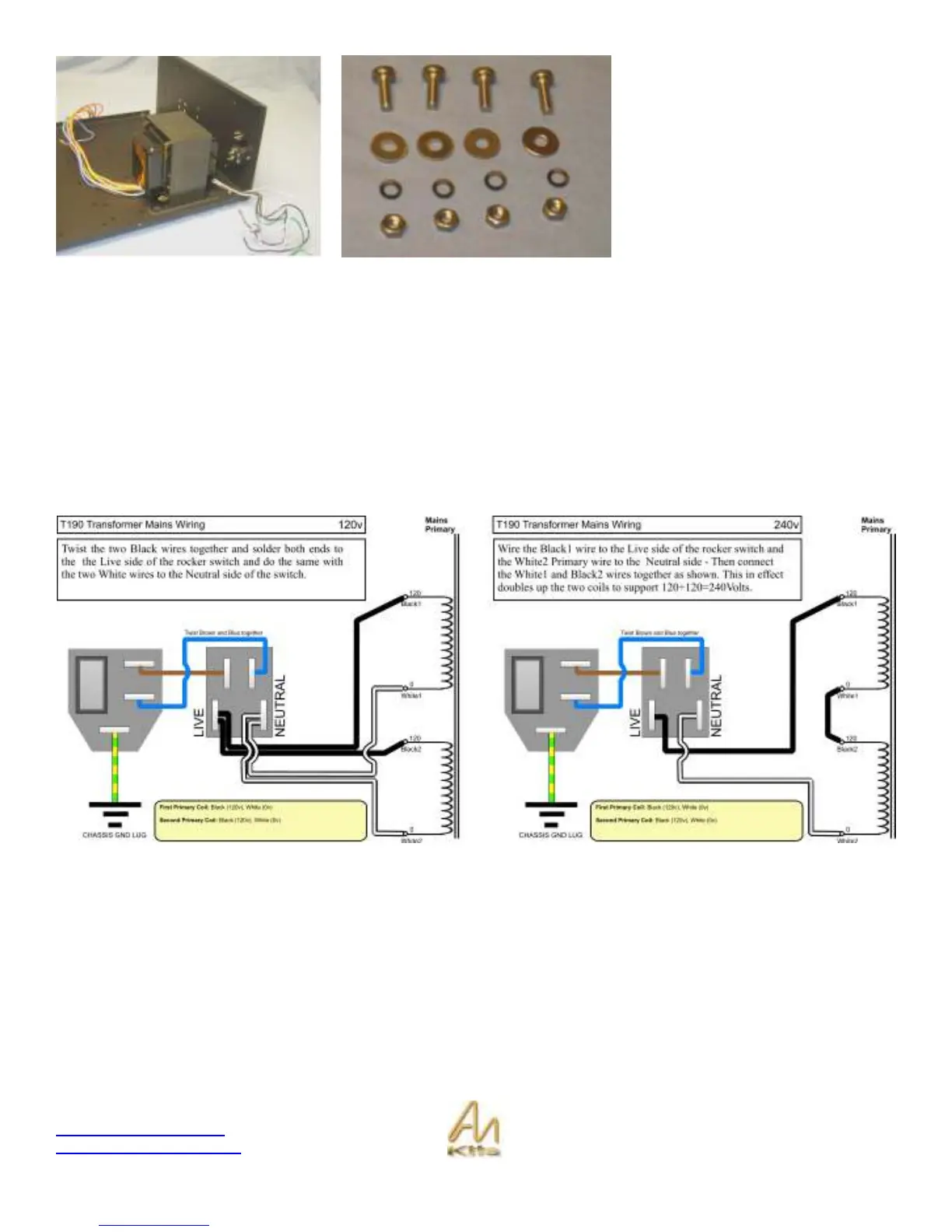

Place the Mains transformer carefully
over top. Note that the primary of the
Mains transformers (2 black + 2 white
+ 1 green wire) is placed towards the
back of the chassis while the
Secondaries are placed towards the
front.
The provided Hardware in the bag
marked “Mains transformer” will be
used to secure down the Mains
transformer – Prior to securing the
transformer in place we suggest you
hook up the IEC section with the
provided cables found in the “IEC”
Bag.
IEC Section
The supplied Mains Transformer is capable of being configured for different mains supply voltages. The examples here
are showing configuration for 120v operation. If you are in a region of the world that requires a different voltage then
please refer to the regional wiring chart shown below and derive the correct wiring from that instead.
Mains wiring - Regional variations
