Page 43
Section 13: ECF80 to EL34 Board Interconnections
We are now going to make the
connections between the hardwire
board and the ECF80 driver board.

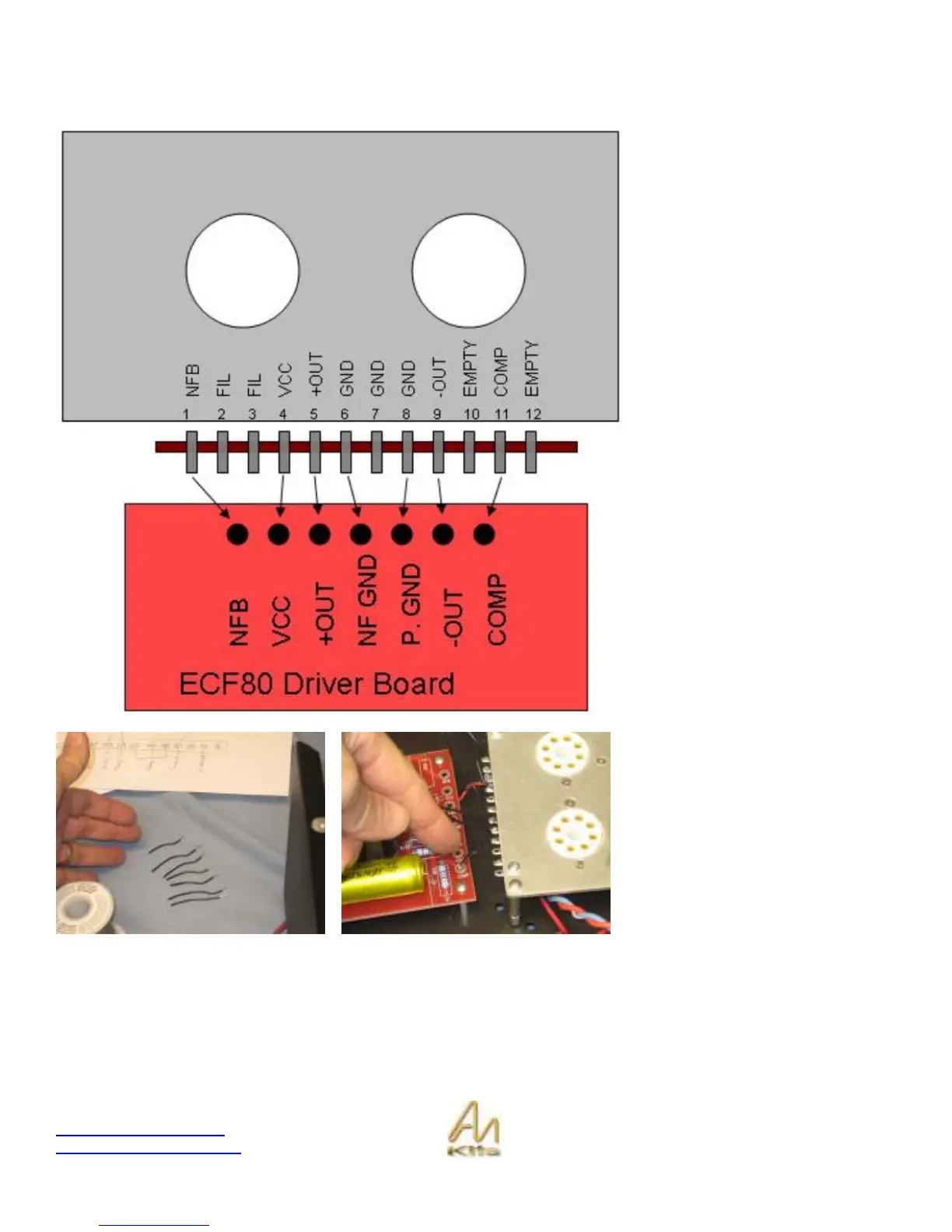

Here is a graphic showing the tag
positions on the hardwire board
looking from the topside now along
with the connections that you are
going to be making in this section.
Cut 7 short pieces of the solid core
gauge wire about 1 inch long and strip
off a ¼” of insulation on both ends.
