Page 7

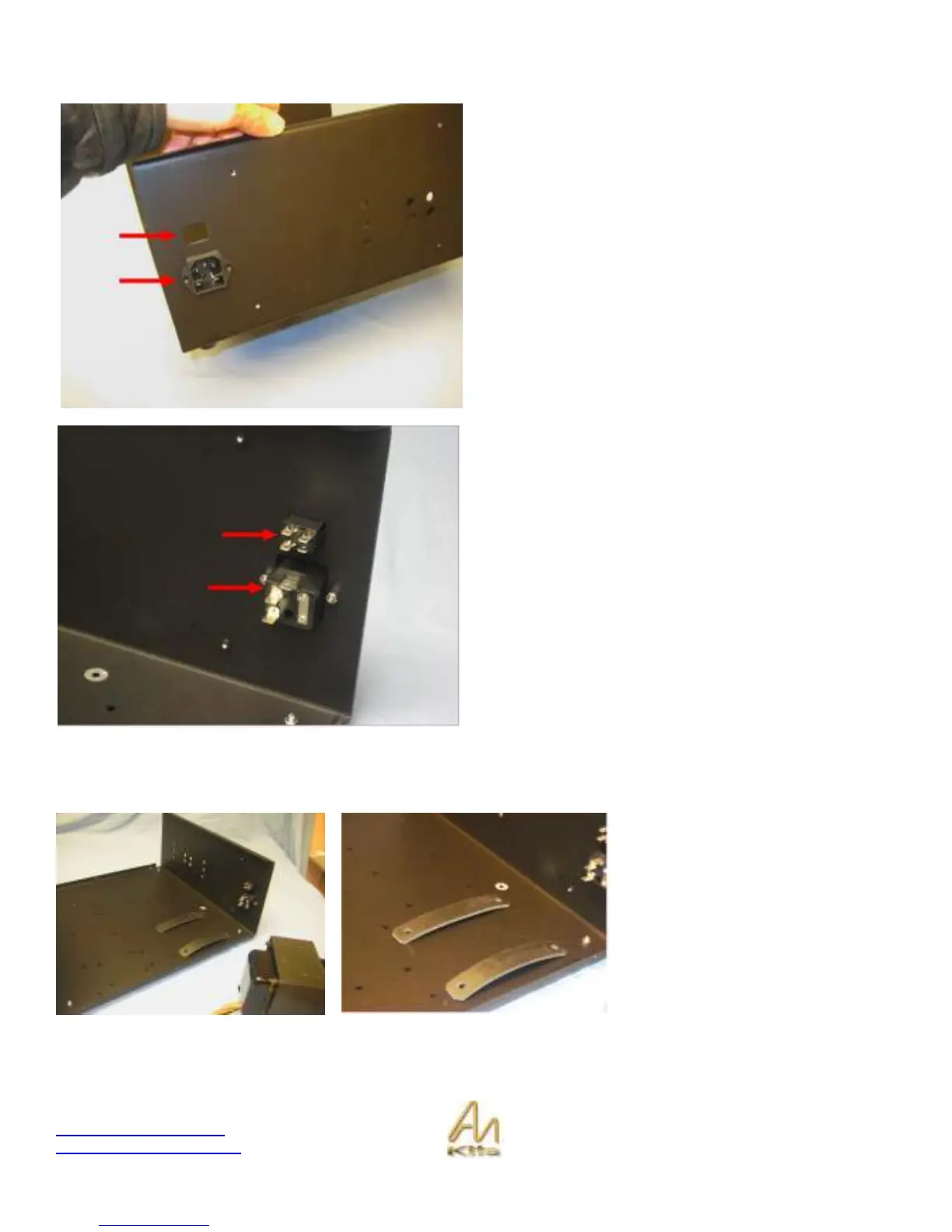

IEC Section Installation
Let’s install the input AC receptacle and rocker switch
known as the IEC socket & Rocker in the rear of the
chassis.
Shown opposite is the rocker switch slot above the fitted
IEC socket.
Here you can see the correct installation of the IEC plug in
the rear of the chassis along with the Rocker switch.
Mains Transformer Installation
2 rubber strips are used to isolate the
mains transformer from the chassis.
Lay down the two rubber strips so that
they are over the correct holes in the
chassis (these holes are about 100mm
apart).
