Page 20

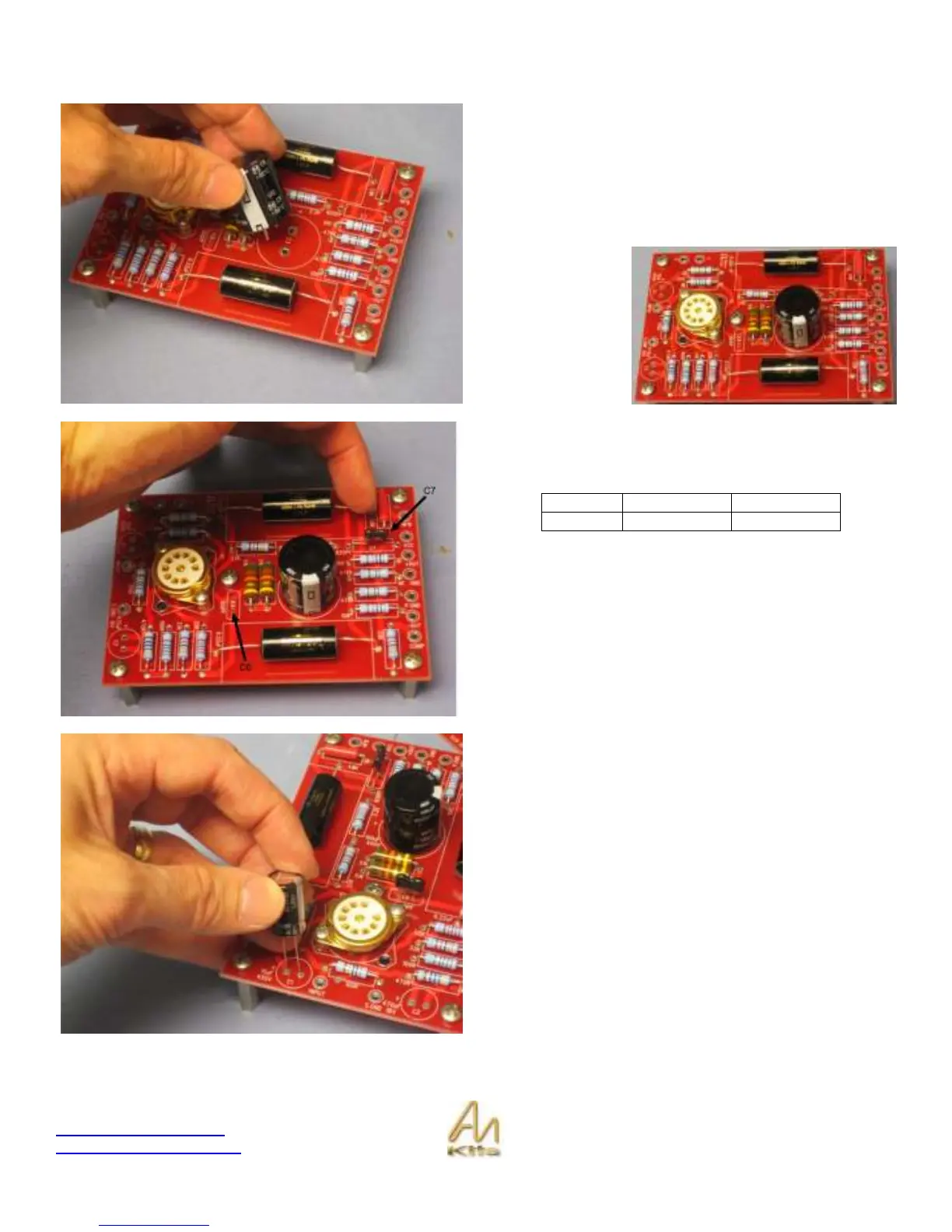

Installing the Capacitors
First, install the two large .22uF film capacitors at the top
and bottom of the board.
Next, install the 100uf electrolytic capacitor. You will see
the stripe on the side of the capacitor that denotes the
negative side (just like we did on the power supply board)
and you will see the + sign on the PCB on the positive side
of the capacitor.
Next install the Silver Mica film caps – these caps are not
polarized so it does not matter which direction they go in.
1 100pF 630v C6
1 820pF C7
NOTE that we made a change to this board and that the
board you are building may have C7 in another location on
the board.
Install the 10uF 450v electrolytic next (see picture
opposite). Here you can see it being inserted correctly.
