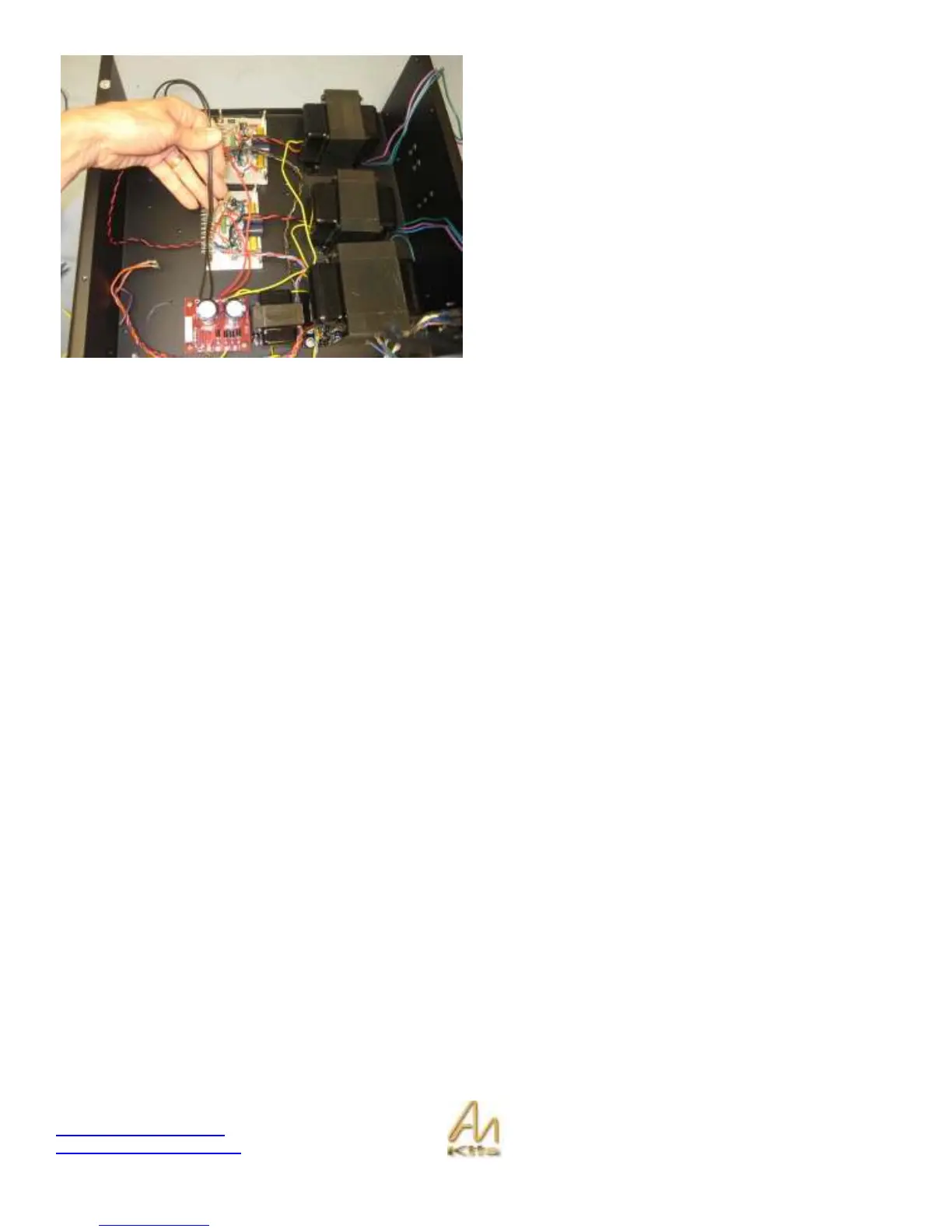

Now do the same thing but with 2 black wires – these will
be the High Voltage Grounds.
Wire these into PGND_A & PGND_B.
That completes the high voltage wiring!
