Page 27

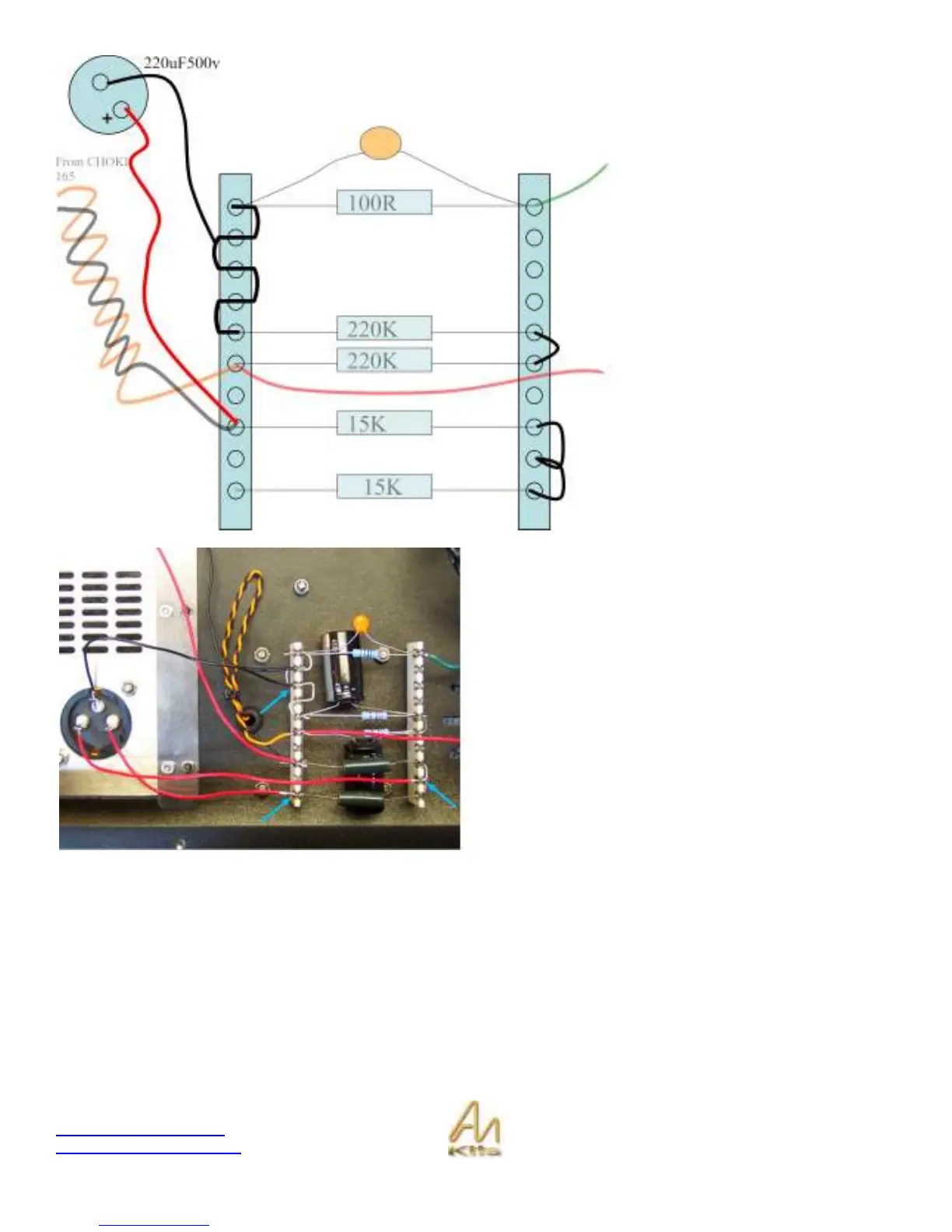

This diagram shows the top (220uF)
capacitor installed and wired up.
The second capacitor is actually 2 capacitors in one – It
contains 2x 100uf capacitors.
The three pins are for 100uF, 100uF and GND.
We have soldered the GND pin on the capacitor to the
GND section of the hardwiring posts.
One 100Uf will be soldered to one end of the bottom 15K
resistor – the other end to the opposite end of the 15K
resistor.
The blue arrows show the connection points – also see the
following diagram for added clarity…
