Page 28

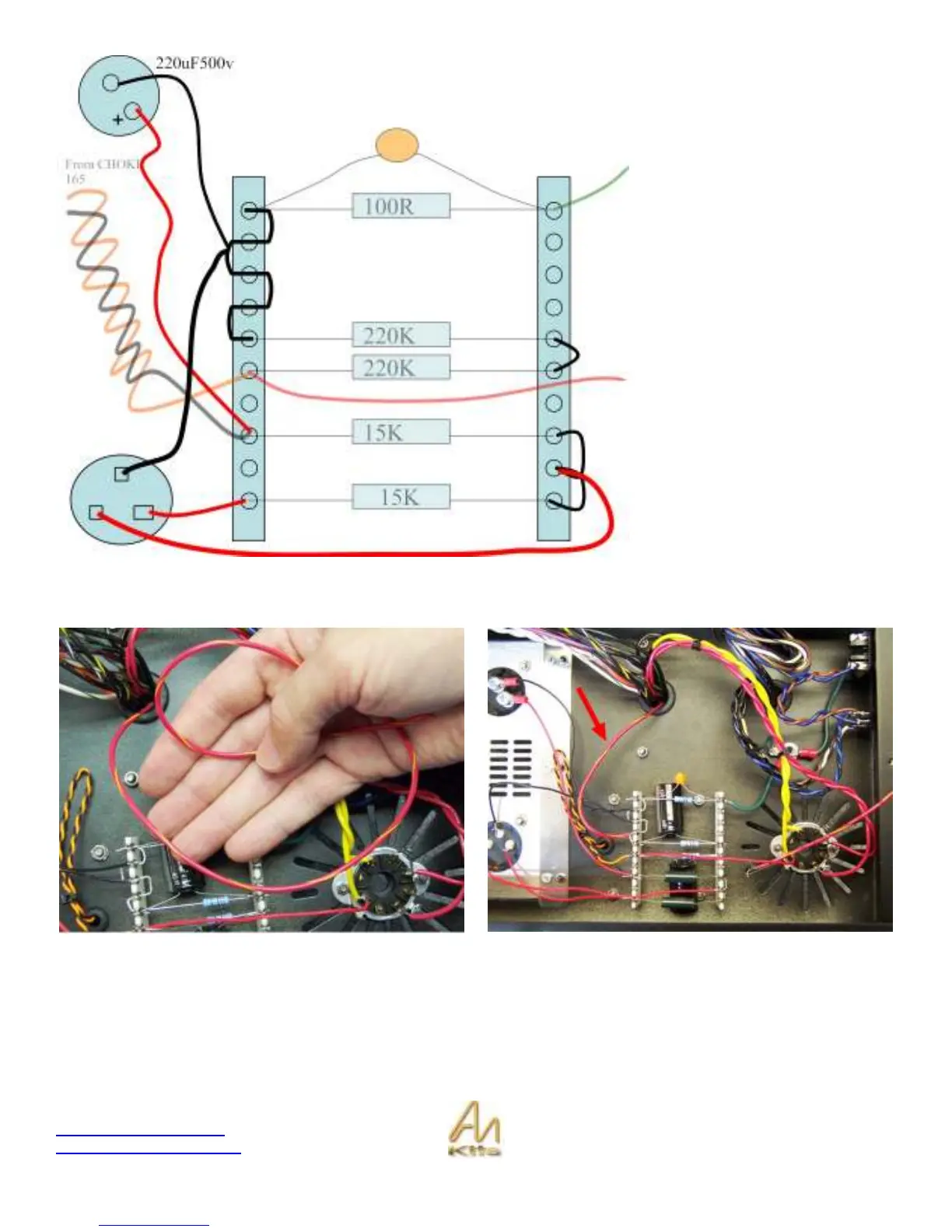

This diagram shows the bottom
capacitor 'pair' connected.
The last step in the power supply is to Ground the center tap from the secondary of the mains transformer – Find the
Red/Yellow wire. Trim it and connect to the ground section on the Hardwiring tag. See the pictures below:
Congratulations – check over your Hardwiring connections before moving on. Please be aware that you will be connecting
more wires to the hardwire tag strips. Please look at the diagram on the next page.
