Page 36

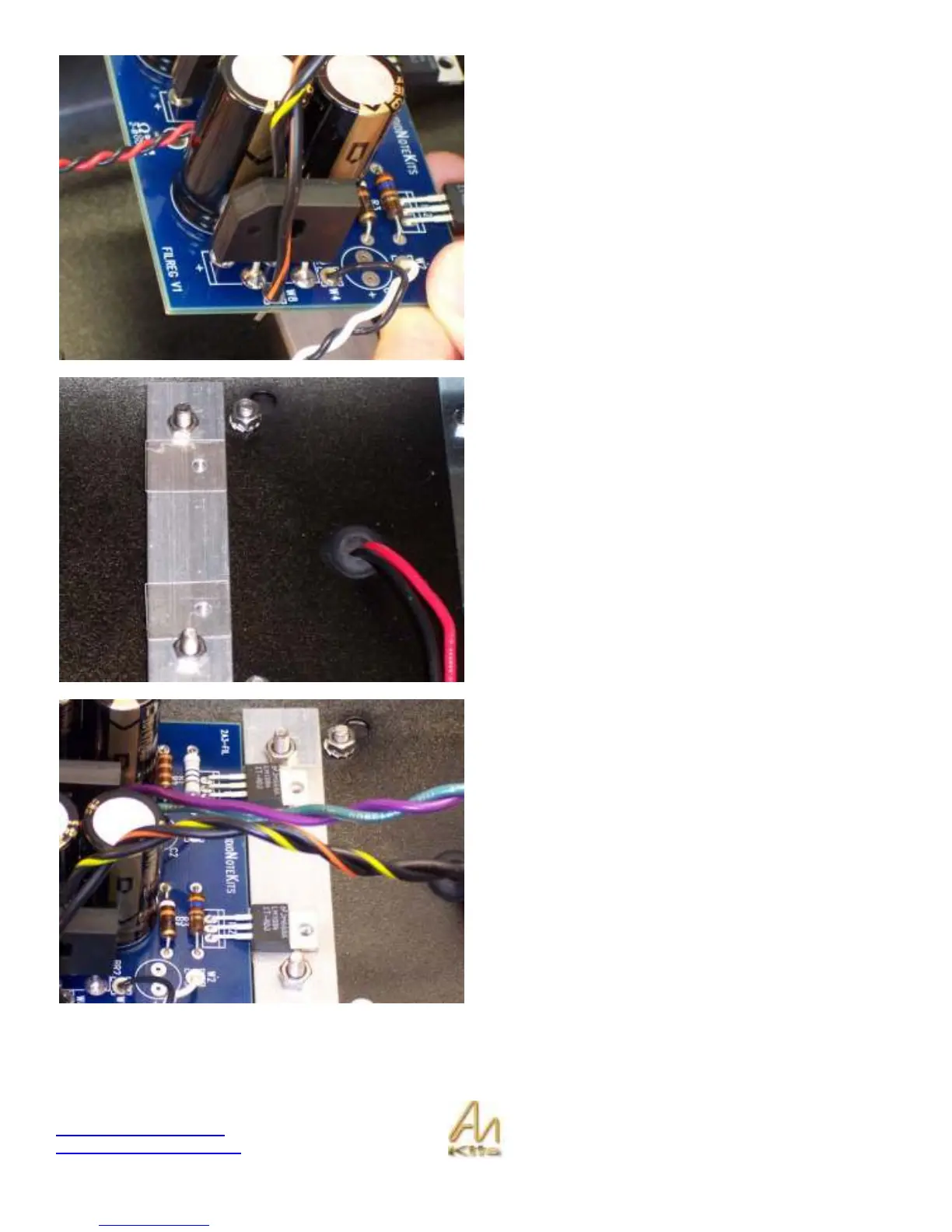

Install the Blue wire into W8 and the Black wire into W6.
Then solder from underneath the board and clip off the
remaining wire protruding through.
Do the same with the other pair of wires with W5 (Green)
and W7 (Violet).
With these wires installed in the Filament Board we cannot
install the board into position.
Step one is to install a grommet on to the M3 screw 25mm
long. This is so that the board will be ensured enough
clearance from the chassis to avoid shorting.
Note: Lead colors are incorrect in this picture as this is
using a different mains transformer.
Place the mica strip into position on the heatsink with the
holes lining up.
Place the board into position over the mica pieces.
Note: Lead colors are incorrect in this picture as this is
using a different mains transformer.
