Page 40

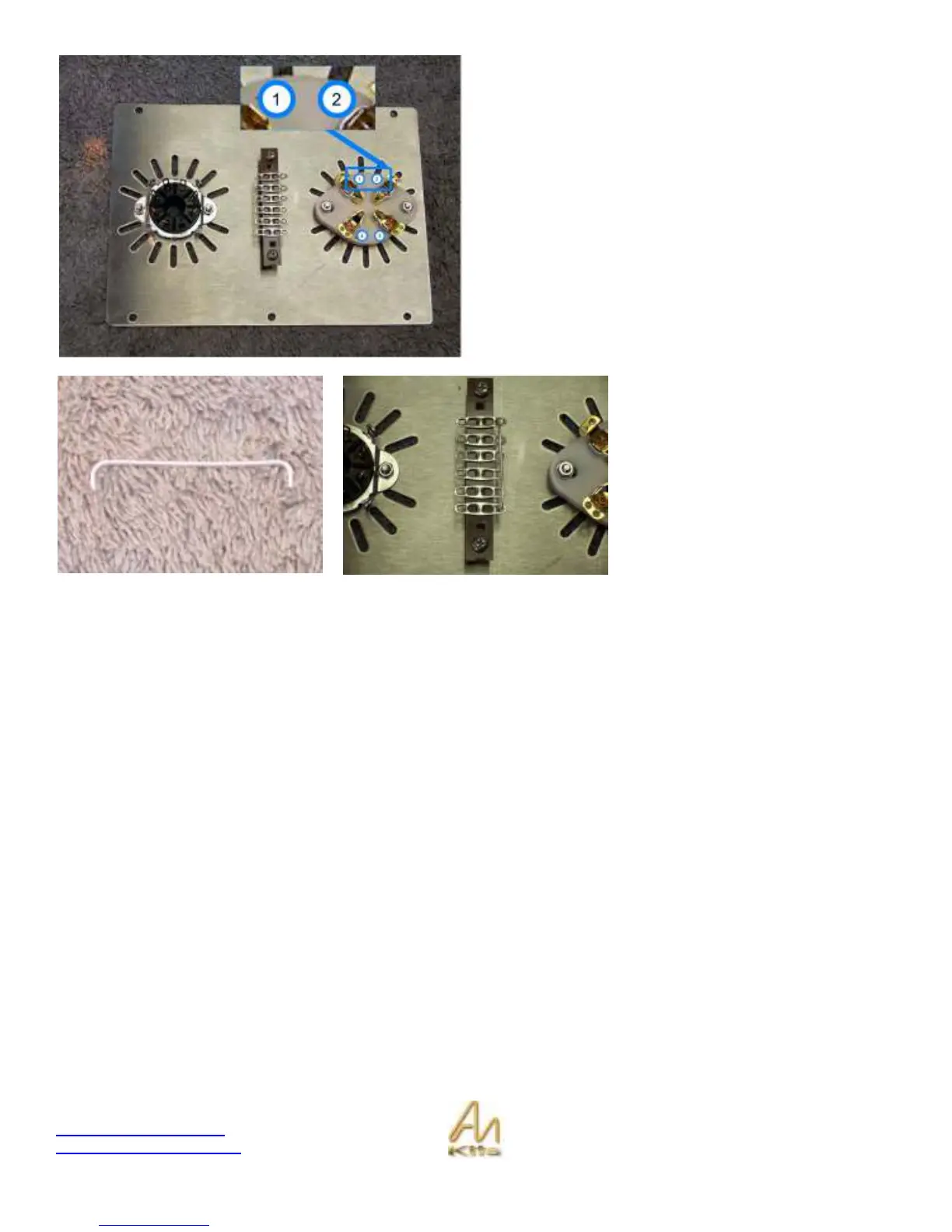

Mark the 4-pin valve base with the numbers.
Pin 1 is marked with a pencil and circled in the picture to
show you its position.
Take the small prepared silver wire
and install into the TAG strip.
This entire TAG strip will be a GND
bus – Place the silver wire in as shown
and solder each tag so that the silver
wire is connected to all the points.
