Audio Note Mono Block 300b/2A3 - Connecting Front Plate Components

Copyright © 2007, 2008 AudioNote Kits
www.AudioNoteKits.com
audionotekits@rogers.com
Page 42

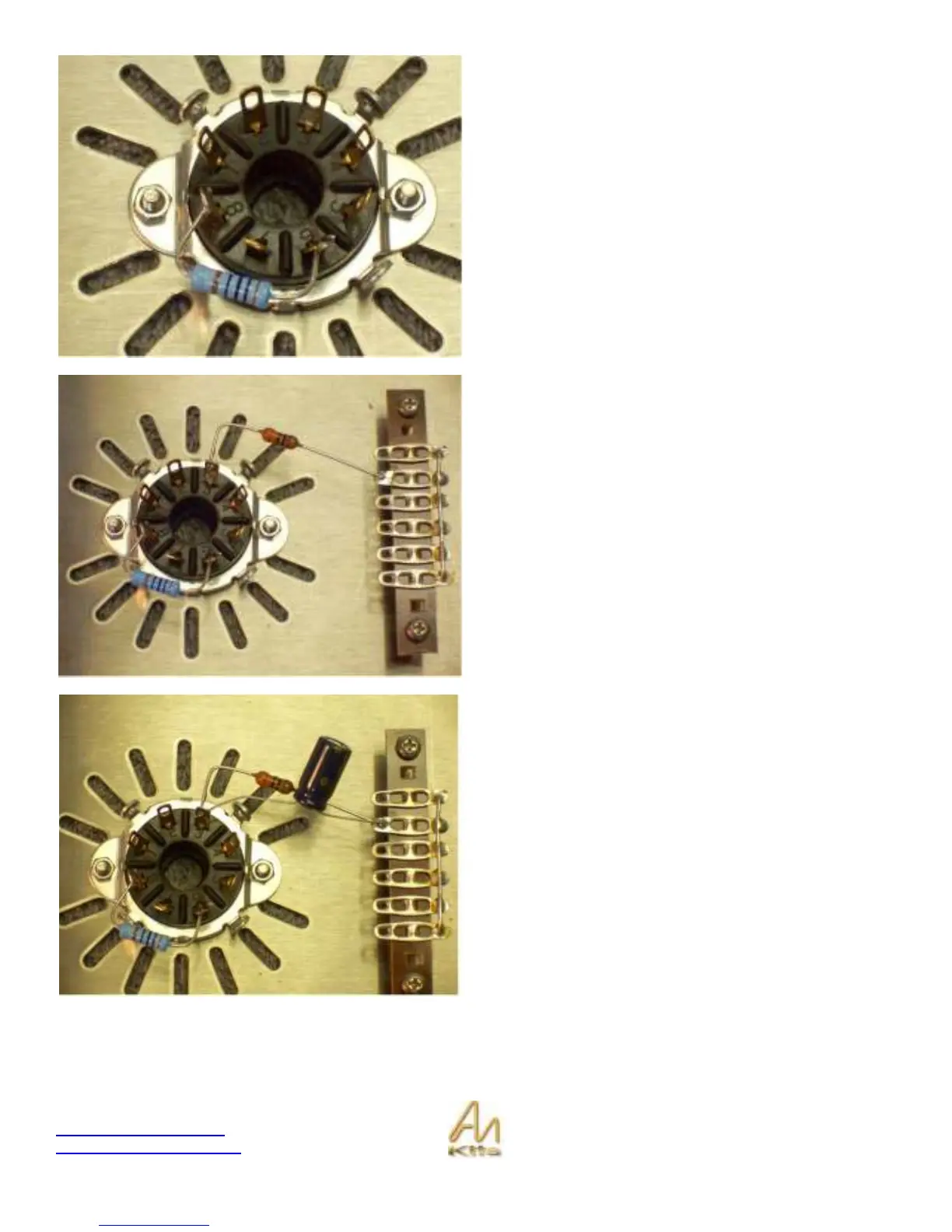

Lets start by connecting the 100-ohm (100R) resistor
between pins 6 & 8 of the 8-pin valve base (6SH7).
Now install the 330R resistor from pin 3 to the GND tag
strip.
Now install the 470uf 16v capacitor from the same pin 3 on
the 6SH7 to the GND bus.
