Page 43

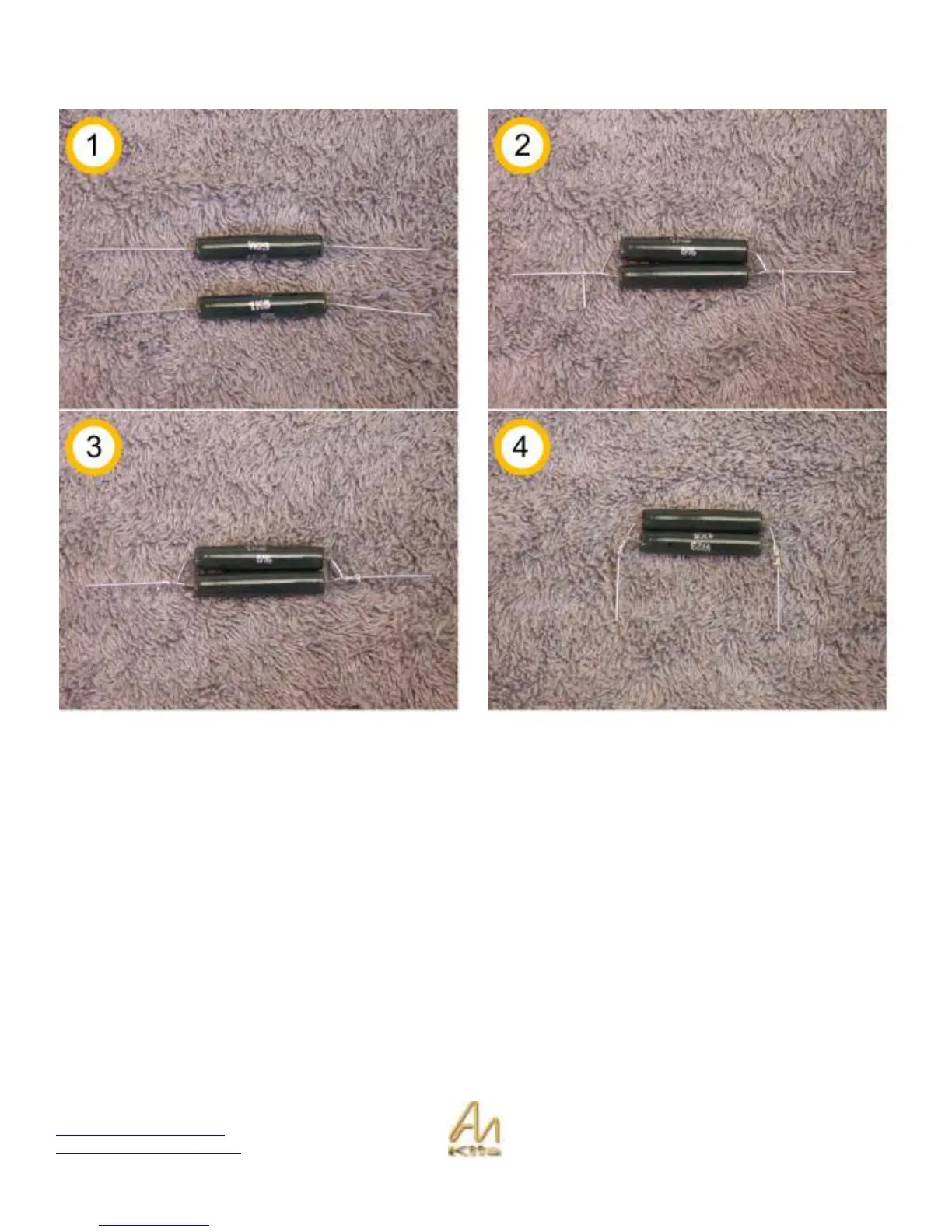

Now you must prepare the two 1K5 wirewound resistors. They are mounted in parallel with each other – see the following
sequence:
1. Take the two wirewound resistors.
2. Wrap the leads from one of them around the straight leads of the other.
3. Solder and clip off the excess.
4. Form, or bend, the leads as shown.
